168 - Corner Swivel Combination

168 - Corner Swivel Combination

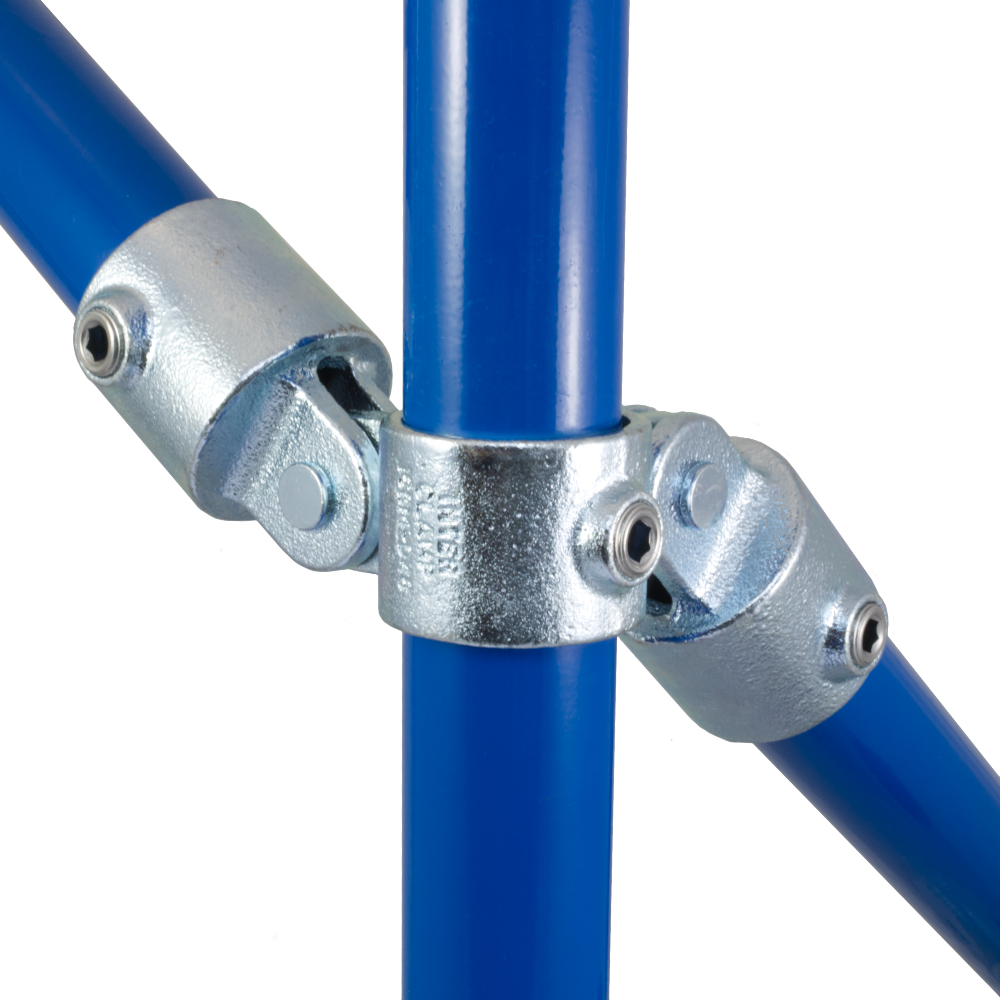

A versatile swivel fitting, useful for awkward applications where angles cannot be accommodated by adjustable angle fittings. The through tube (vertical in photo) cannot be joined within the fitting. The assembly is riveted together, although items can be supplied separately as 168M and 2 x 173F.

The swivels can travel approximately 85° from the horizontal in both directions. This fitting is not designed to withstand lateral loading. An entire structure should not be built using only swivel fittings, this would be unstable.

Warning: To provide sufficient stability, whole structures must not be made fromswivel fittings alone.

Range Print < Previous Next >

Product Data & Dimensions

Size a (mm) Weight (kg) Box Qty* Part No
  A27   101   0.89   36   168-A27
  B34   104.5   1.07   25   168-B34
  C42   117   1.39   25   168-C42
  D48   130   1.53   18   168-D48
  E60   149   2.32   10   168-E60
