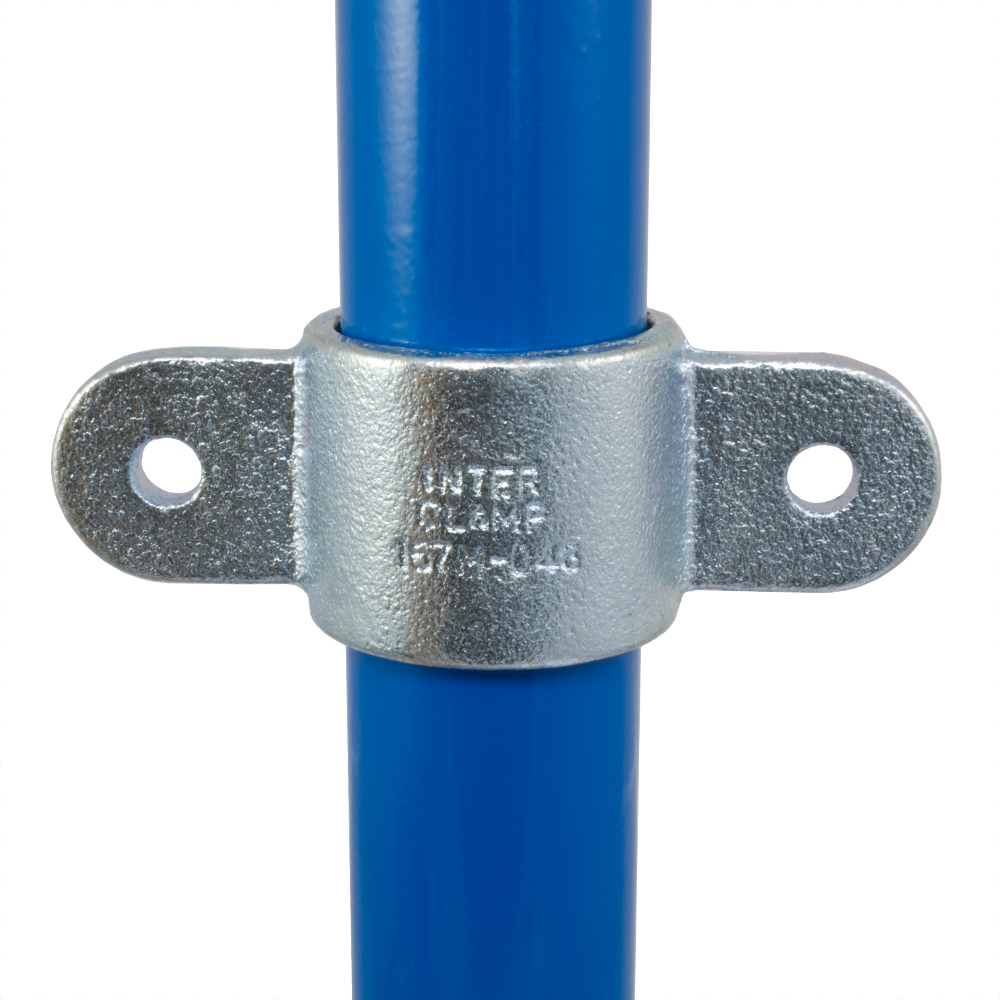

167M - Double Swivel Combination Male Part

167M - Double Swivel Combination Male Part

Double lugged fitting. The tube cannot be joined within the fitting. This fitting is not designed to withstand lateral loading.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Range Print < Previous Next >

Product Data & Dimensions

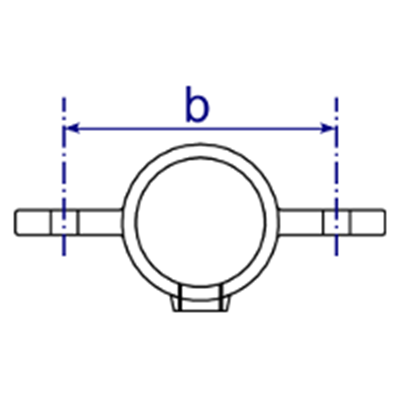

Dimensions Image 1 - 167M - Double Swivel Combination Male Part

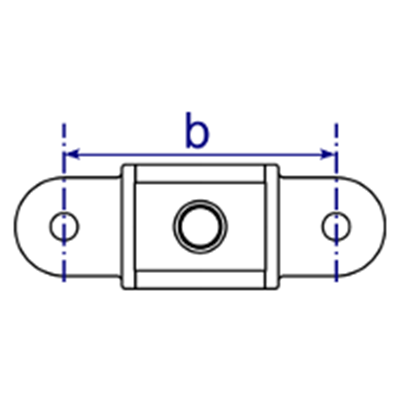

Dimensions Image 2 - 167M - Double Swivel Combination Male Part
Size b (mm) Weight (kg) Box Qty* Part No
  A27   80   0.29   123   167M-A27
  B34   84   0.35   97   167M-B34
  C42   95   0.41   84   167M-C42
  D48   105   0.46   60   167M-D48
  E60   124   0.63   36   167M-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
