169 - Swivel Wall Flange

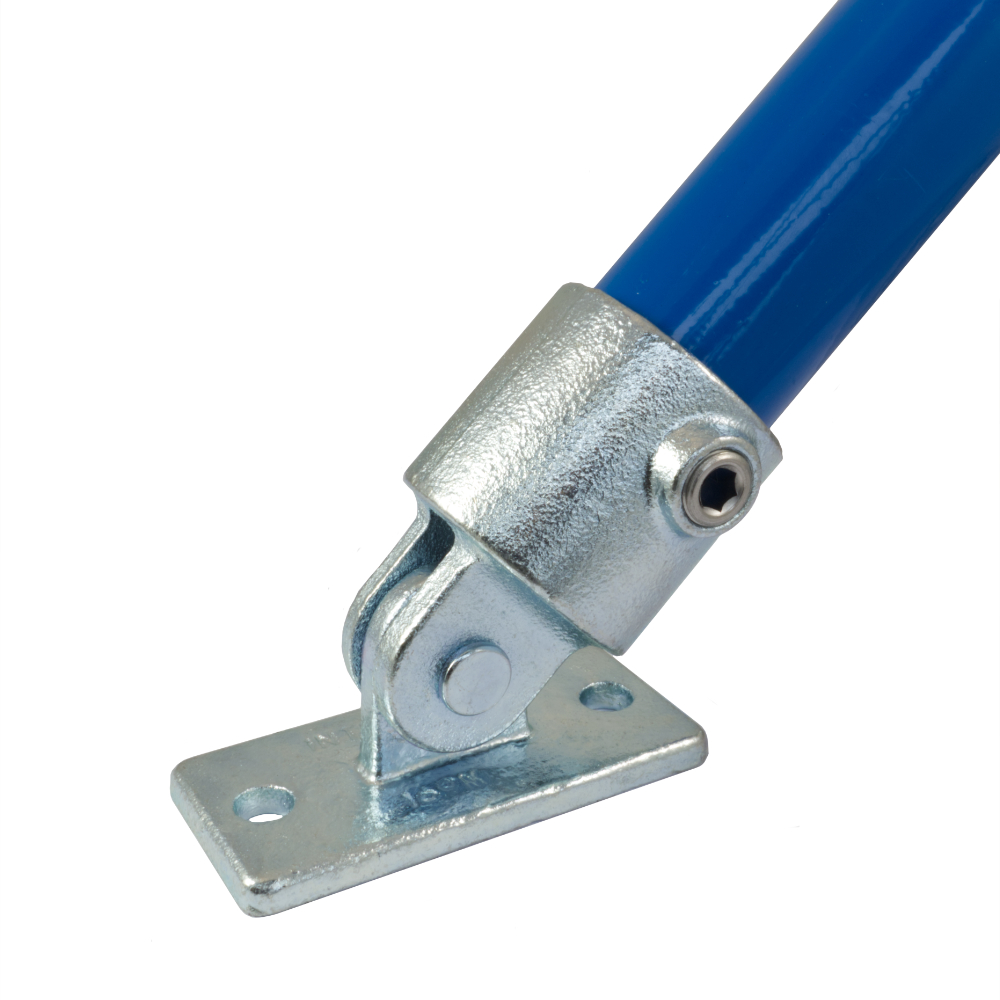

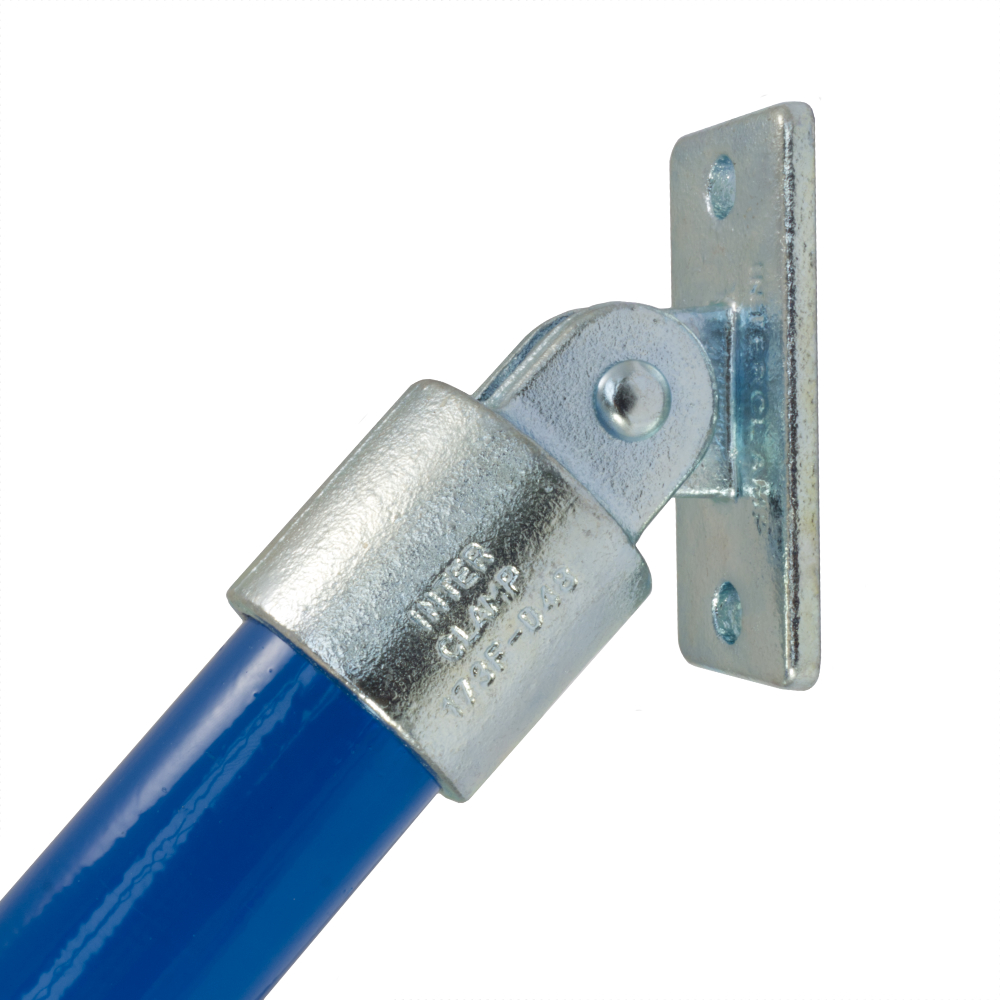

A versatile swivel fitting, useful for fixing angled tubes to walls etc. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. The assembly is riveted together, although items can be supplied separately as 169M and 173F.

This fitting is not to be used as a base plate for guardrail. This fitting is not designed to withstand lateral loading.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

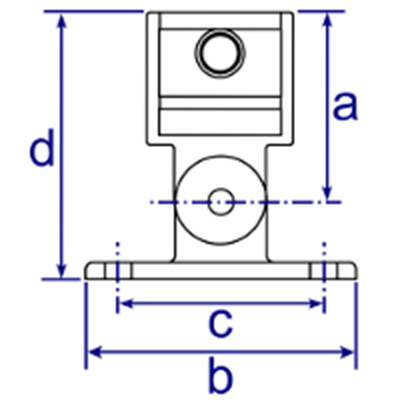

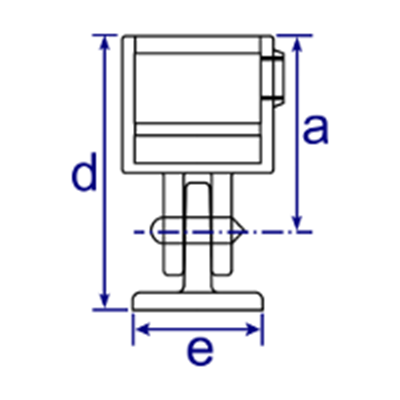

Product Data & Dimensions

Size a (mm) b (mm) c (mm) d (mm) e (mm) Hole Dia (mm) Weight (kg) Box Qty* Part No
  A27   61   112   85   93   52   11   0.66   80   169-A27
  B34   61   112   85   93   52   11   0.75   80   169-B34
  C42   69   112   85   98   52   11   0.82   45   169-C42
  D48   77   112   85   109   52   11   0.89   30   169-D48
  E60   89   112   85   121   52   11   1.21   24   169-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
