167 - Double Swivel Combination

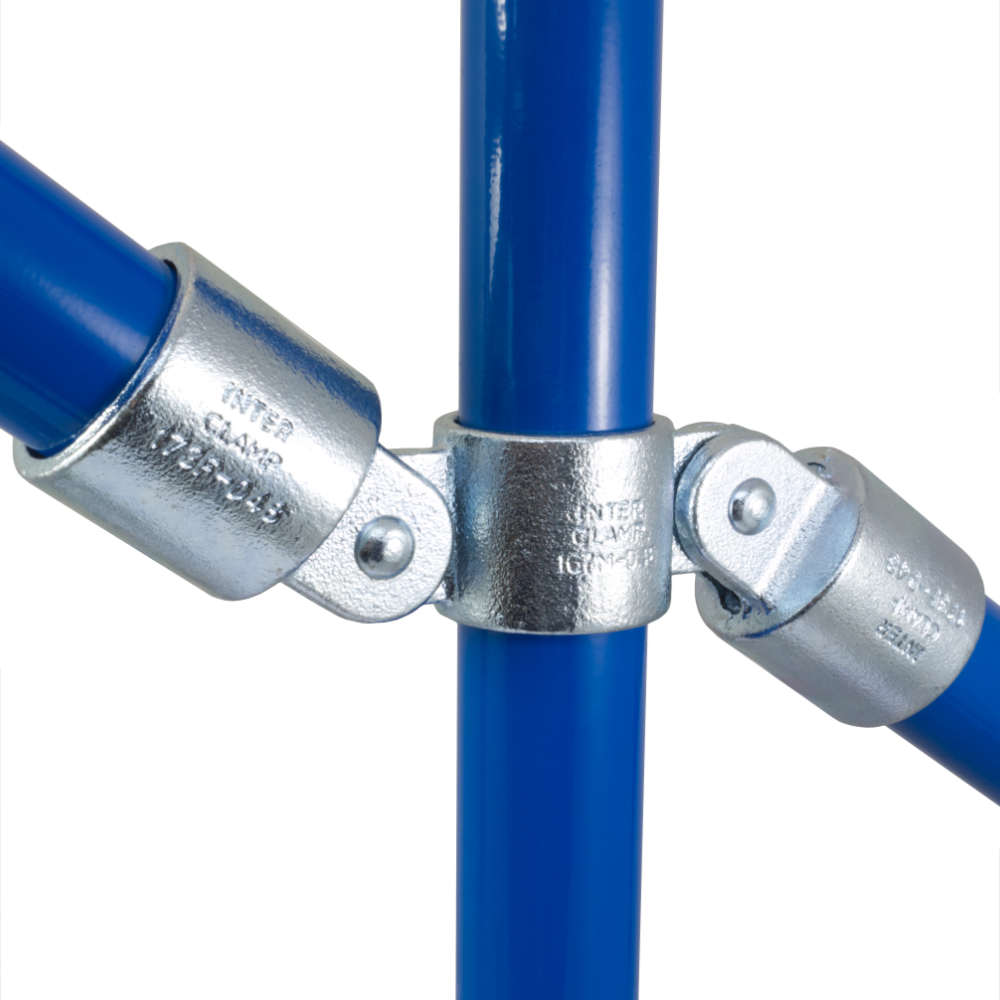

A versatile swivel fitting, useful for awkward applications where angles cannot be accommodated by adjustable angle fittings. The assembly is riveted together, although items can be supplied separately as 167M and 2 x 173F. The through tube (vertical in photo) cannot be joined within the fitting.

The swivels can travel approximately 85° from the horizontal in both directions. This fitting is not designed to withstand lateral loading. An entire structure should not be built using only swivel fittings, this would be unstable.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.


Product Data & Dimensions

Size b (mm) Weight (kg) Box Qty* Part No
  A27   202   0.77   56   167-A27
  B34   208   1.09   36   167-B34
  C42   228   1.32   20   167-C42
  D48   259   1.53   16   167-D48
  E60   300   2.4   8   167-E60
