173M - Single Swivel Combination Male Part

173M - Single Swivel Combination Male Part

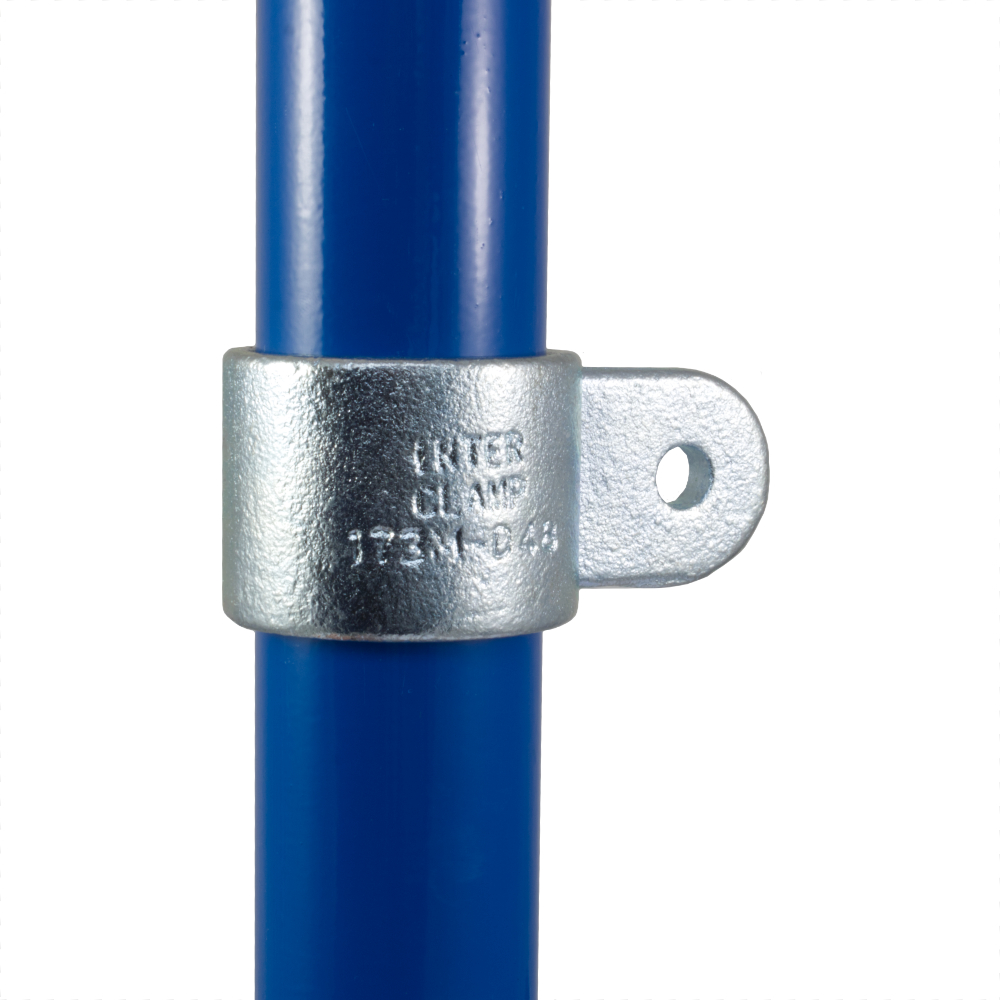

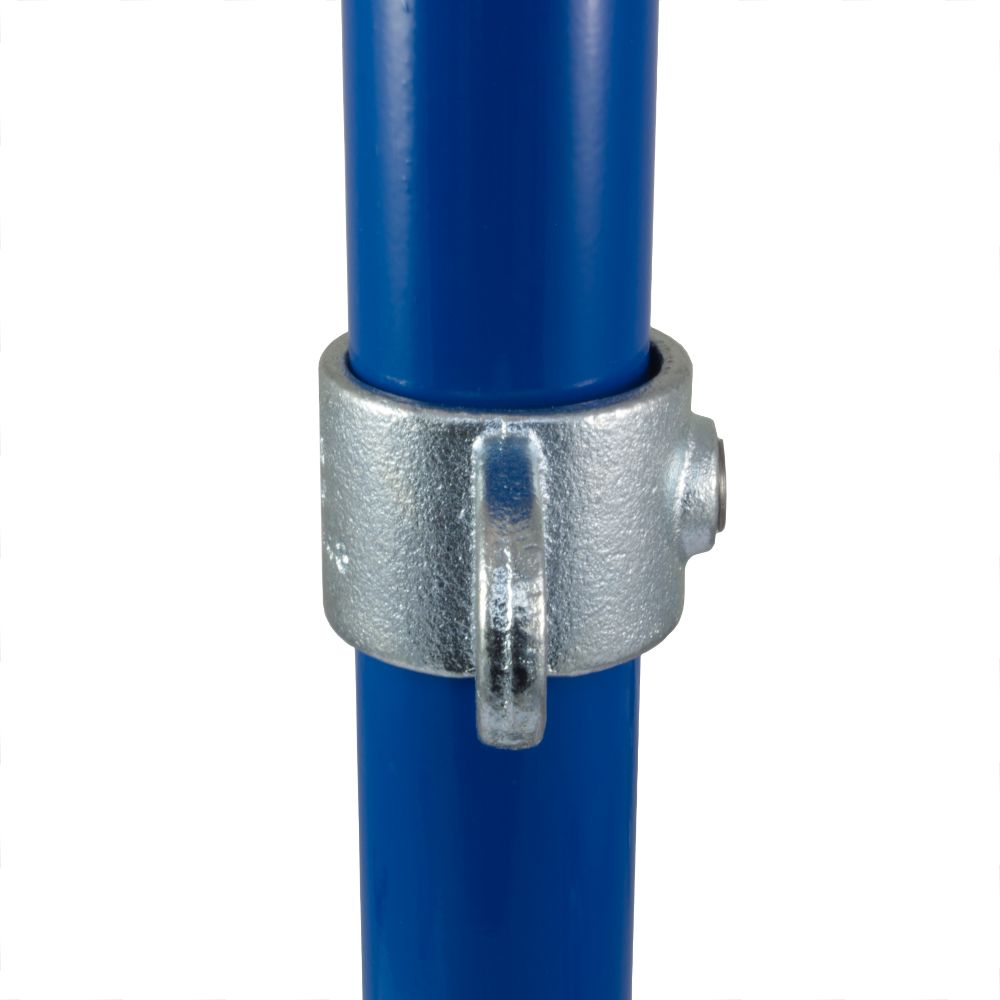

Single lugged fitting. Can be supplied pre-assembled to type 173F to form type 173. Dependent on load requirements, this fitting may sometimes be used to fix flat sheets to tubes. The tube cannot be joined within the fitting.

This fitting is not designed to withstand lateral loading.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Range Print < Previous Next >

Product Data & Dimensions

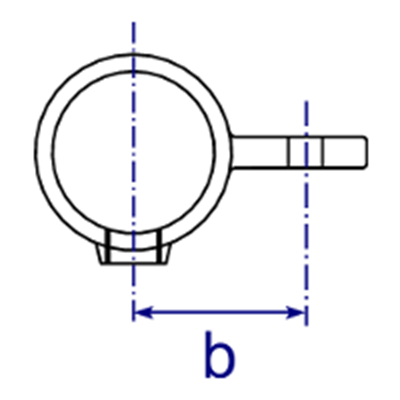

Dimensions Image 1 - 173M - Single Swivel Combination Male Part

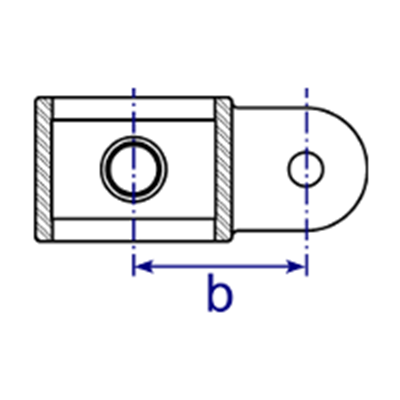

Dimensions Image 2 - 173M - Single Swivel Combination Male Part
Size b (mm) Weight (kg) Box Qty* Part No
  A27   40   0.22   180   173M-A27
  B34   43.5   0.26   150   173M-B34
  C42   48   0.33   105   173M-C42
  D48   53   0.36   84   173M-D48
  E60   60   0.51   42   173M-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
