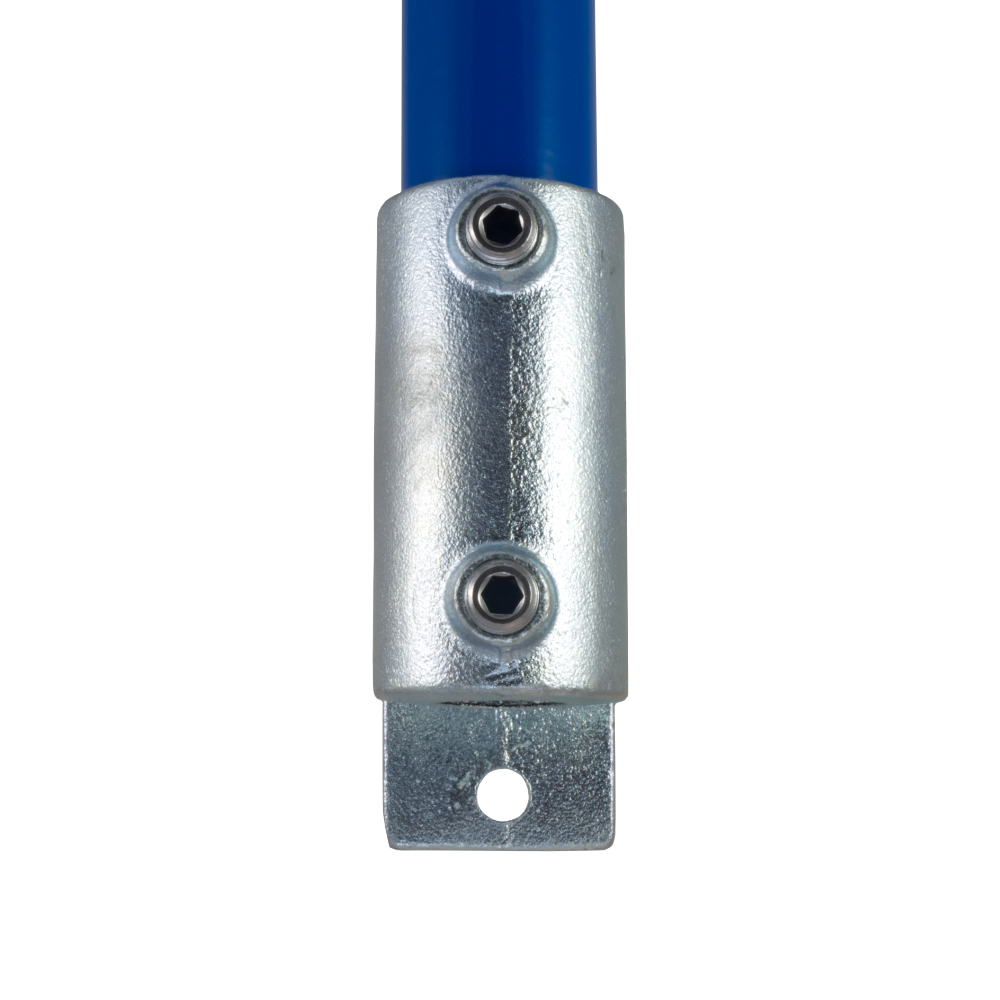

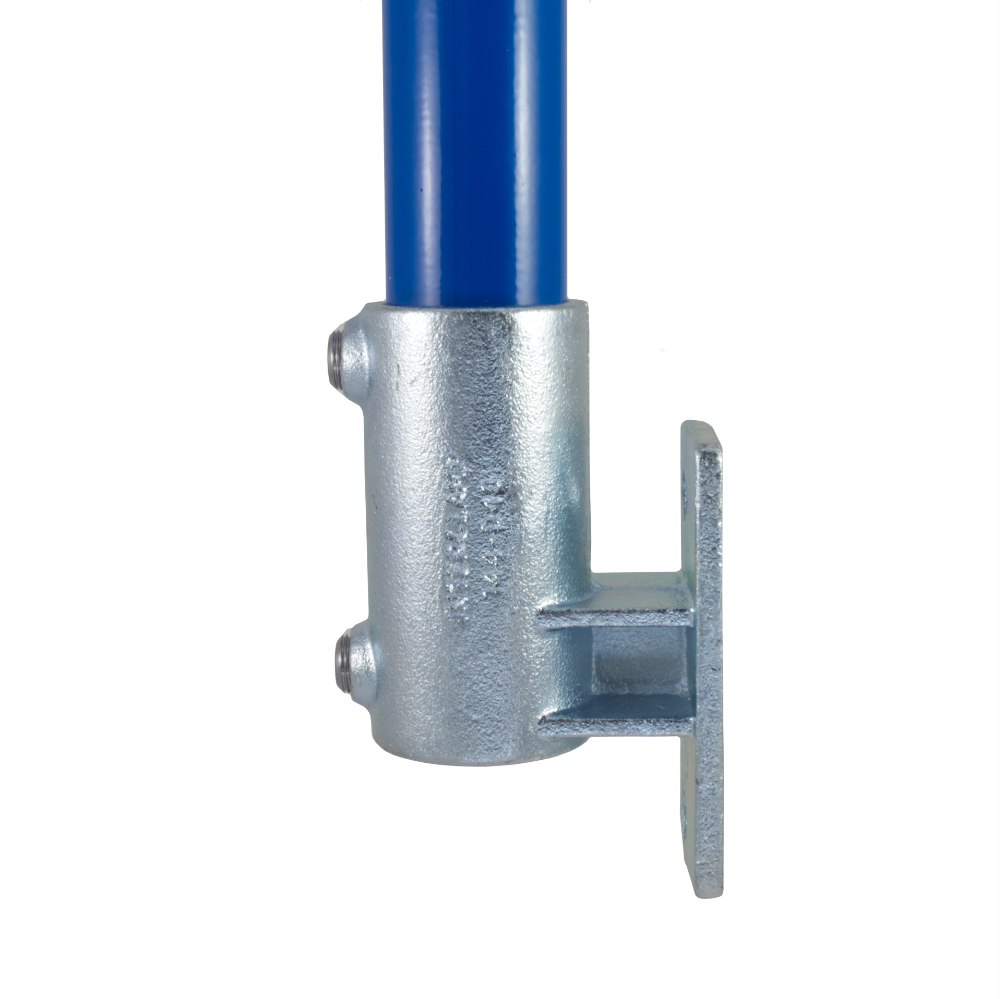

144 - Railing Side Support (Vertical)

144 - Railing Side Support (Vertical)

A palm-type fitting, often used to attach guardrail uprights to walls, staircases and ramps. In standard form, the tube cannot pass through the bottom of the fitting, although the fitting may be modified to accommodate this at extra cost.

N.B. Access to one of the fixing holes is limited and may restrict the length and type of fixing that may be used. Dependent on load requirements, type 145 may sometimes be used as an alternative.

Range Print < Previous Next >

Product Data & Dimensions

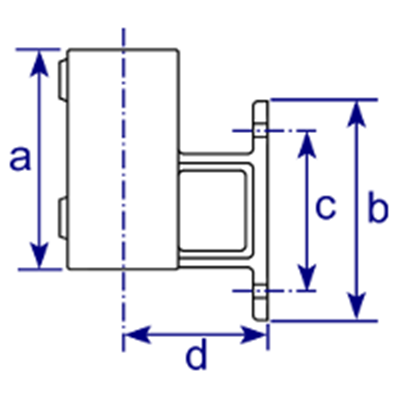

Dimensions Image 1 - 144 - Railing Side Support (Vertical)

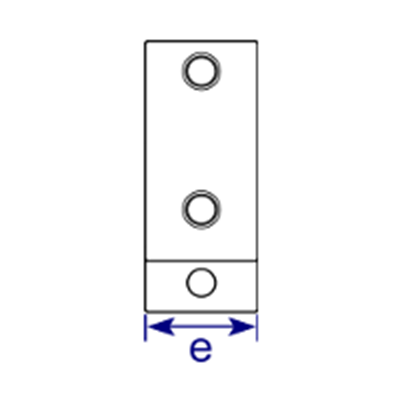

Dimensions Image 2 - 144 - Railing Side Support (Vertical)
Size a (mm) b (mm) c (mm) d (mm) e (mm) Hole Dia (mm) Weight (Kg) Box Qty* GTIN / EAN No
  B34   109   95   67   57   45   15   0.92   41   5060511020961
  C42   112   110   72   63.5   54   14   1.20   24   5060511020978
  D48   120   120   89   73   63   14   1.37   20   5060511020985

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
