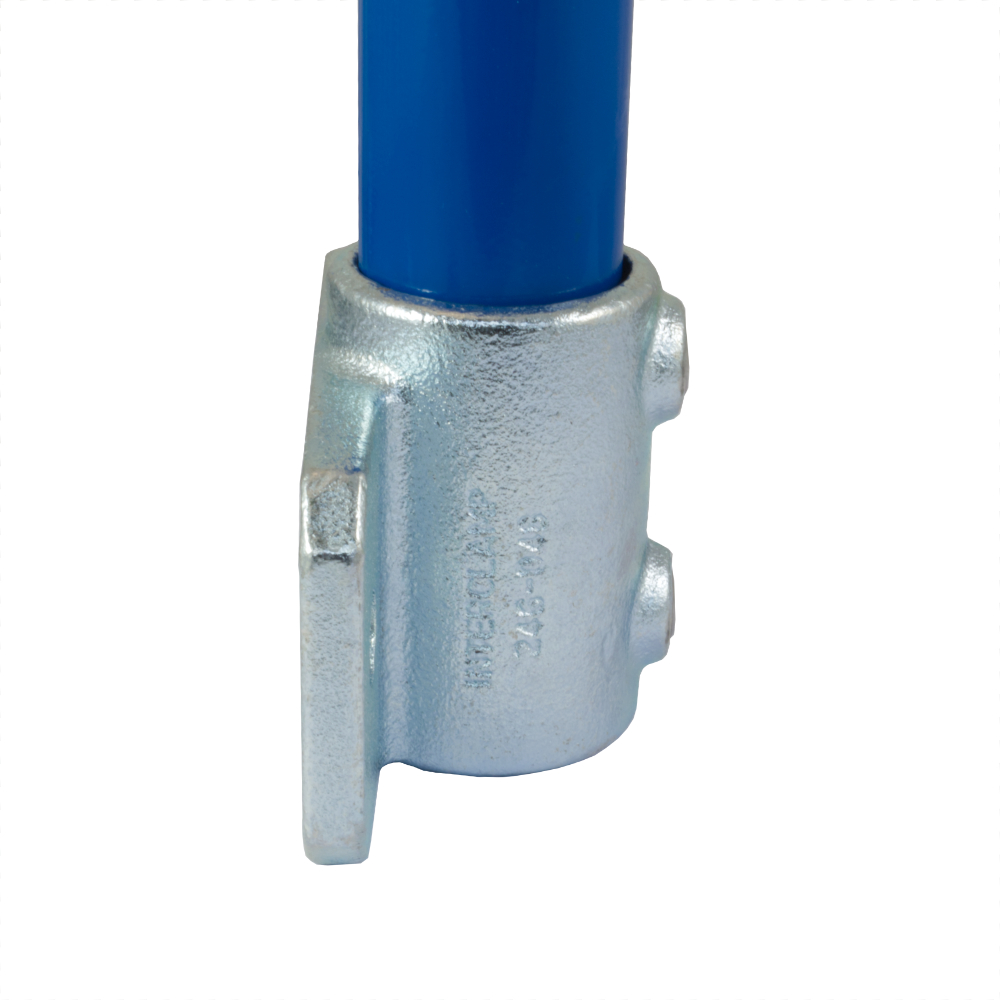

246 - Heavy-duty Side Palm

246 - Heavy-duty Side Palm

Designed to be interchangeable with traditional welded ball standard bases. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request.

Range Print < Previous Next >

Product Data & Dimensions

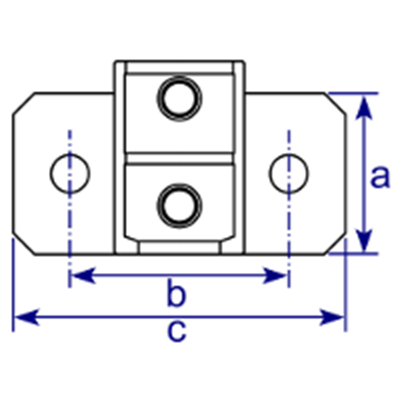

Dimensions Image 1 - 246 - Heavy-duty Side Palm

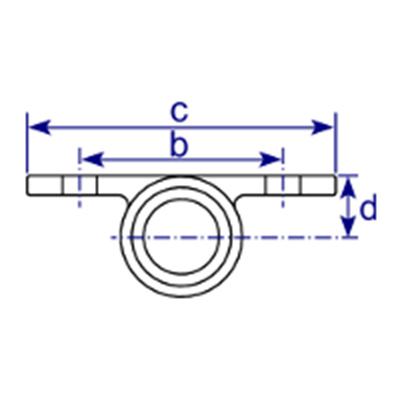

Dimensions Image 2 - 246 - Heavy-duty Side Palm
Size a (mm) b (mm) c (mm) d (mm) Weight (Kg) Box Qty* GTIN / EAN No
  B34   75   102   145   23.5   0.97   50   5060511022521
  C42   75   102   145   28   1.09   35   5060511022538
  D48   75   102   145   31.5   1.32   25   5060511022545

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
