143 - Handrail Bracket

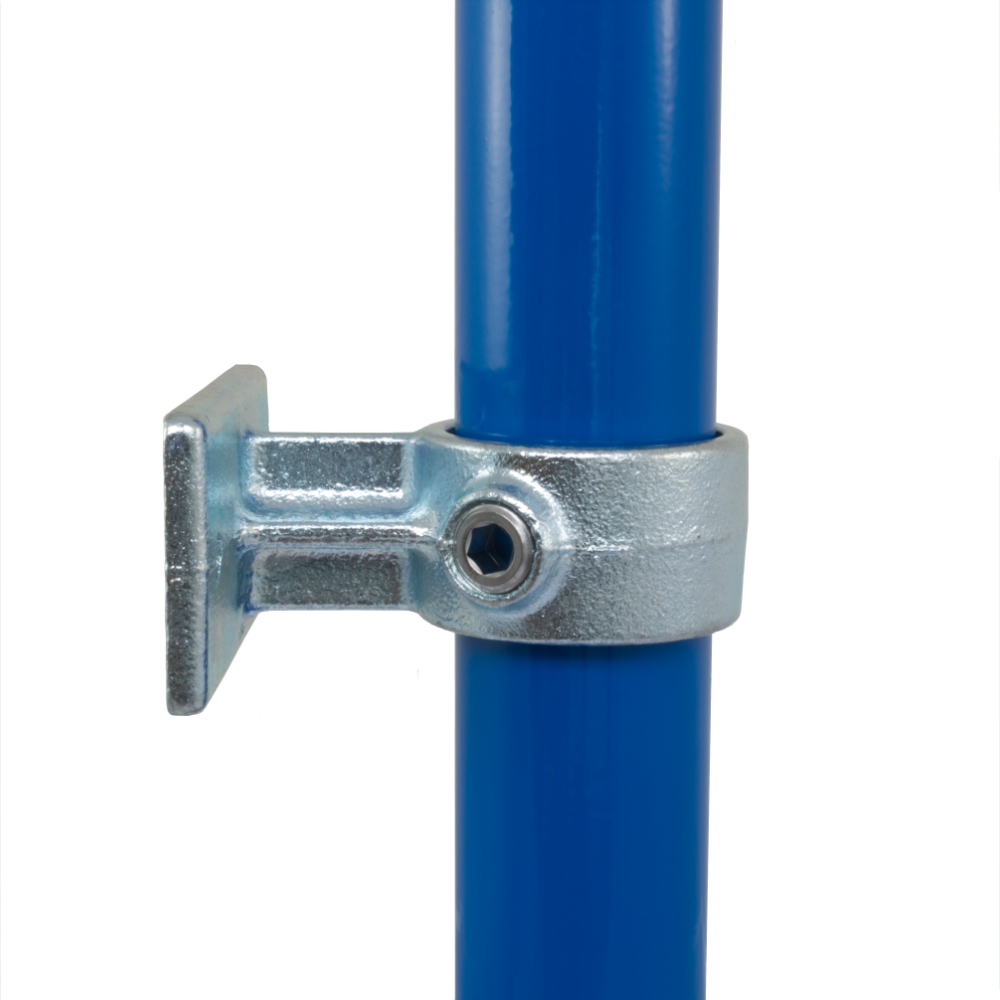

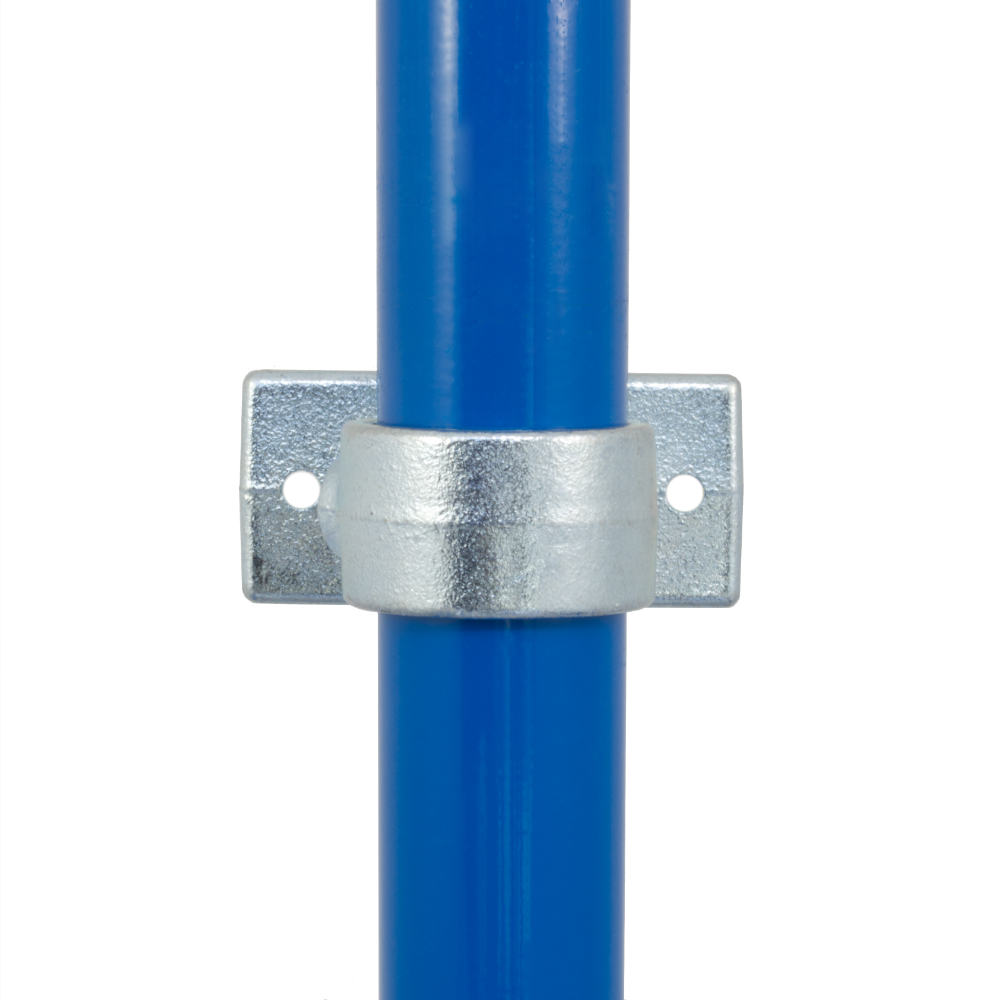

Often used to attach to walls, as a positional wall fixing for structures, or to attach kick-plates to uprights. The tube cannot be joined within the fitting.

This fitting is not to be used as a solitary base plate for guardrail or similar load bearing applications.

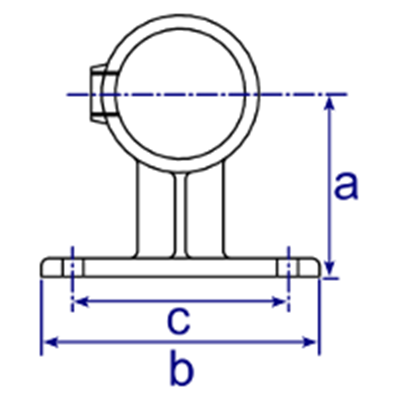

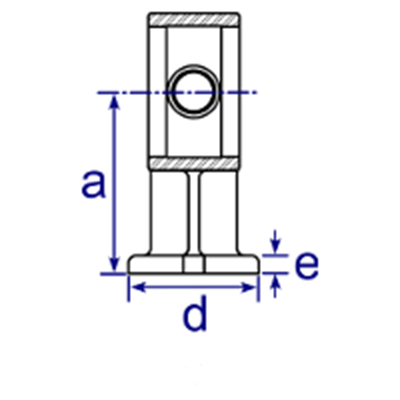

Product Data & Dimensions

Size a (mm) b (mm) c (mm) d (mm) e (mm) Hole Dia (mm) Weight (kg) Box Qty* Part No
  A27   54   77   57   44   7   8   0.32   100   143-A27
  B34   57   80   62   44   7   8   0.38   80   143-B34
  C42   62   102   82.5   45   7   8   0.49   57   143-C42
  D48   70   107   82.5   50   7   8   0.60   40   143-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
