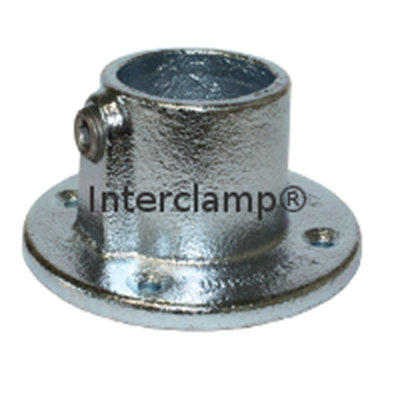

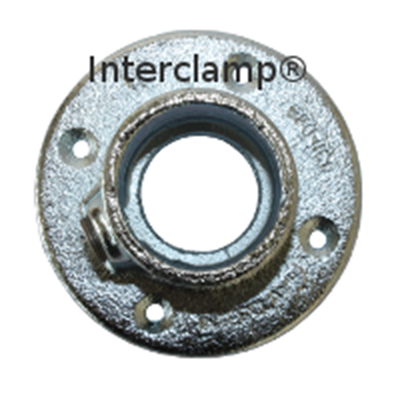

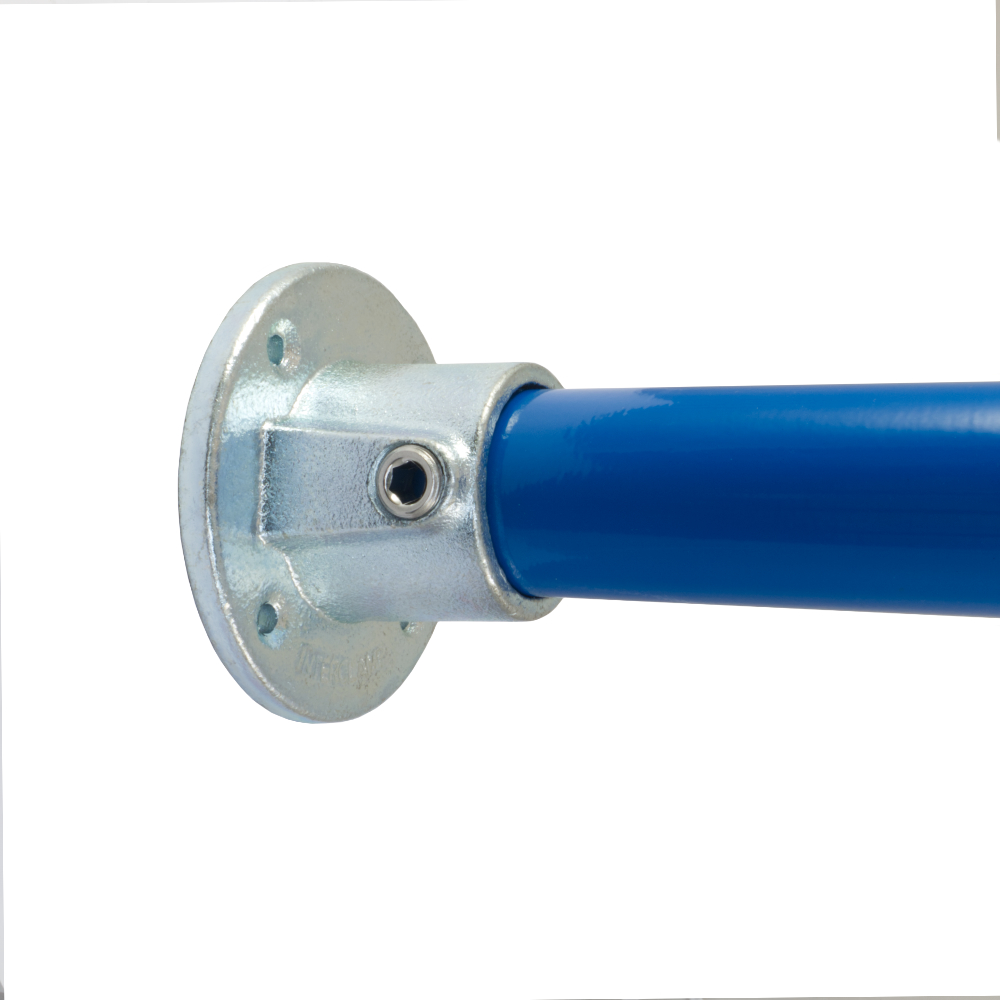

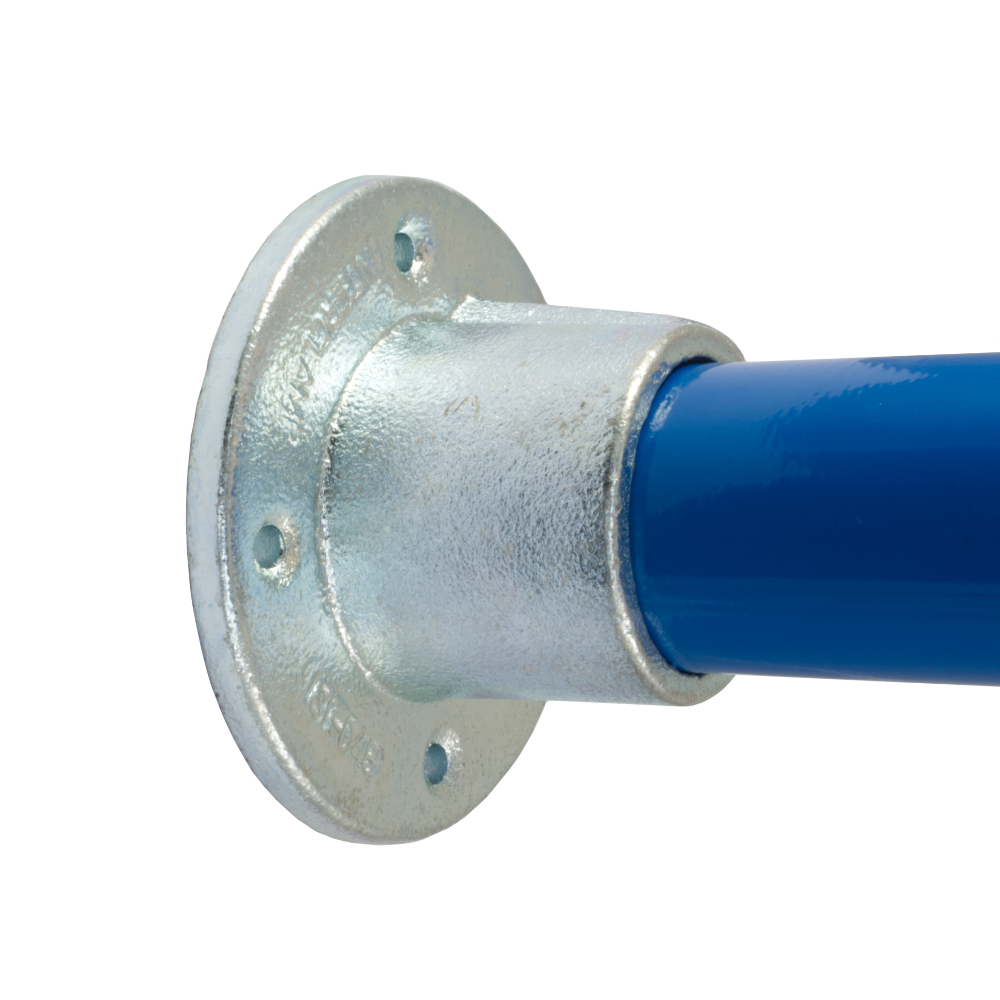

131 - Wall Flange

Positional fixing flange which is often used where rails meet walls on level sites.

Warning: This Interclamp fitting is not recommended as a baseplate to support handrailing, guardrailing, parapets, balustrades or other structures. Please use type 132 as an alternative.

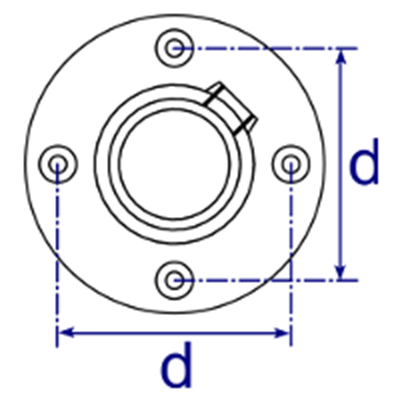

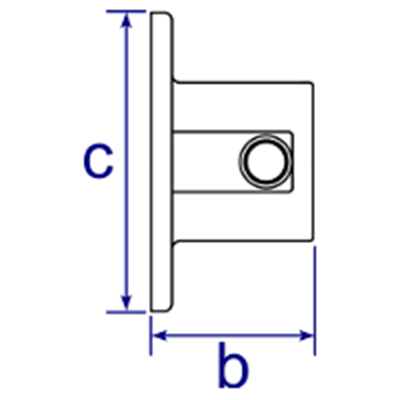

Product Data & Dimensions

Size b (mm) c (mm) d (mm) Hole Dia (mm) Weight (kg) Box Qty* Part No
  A27   42   83   59   7   0.31   98   131-A27
  B34   48   89   65   7   0.48   70   131-B34
  C42   51   102   76   7   0.65   48   131-C42
  D48   59   114   88.5   7   0.86   32   131-D48
  E60   64   128   97   7   1.11   21   131-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
