132 - Railing Base Flange

132 - Railing Base Flange

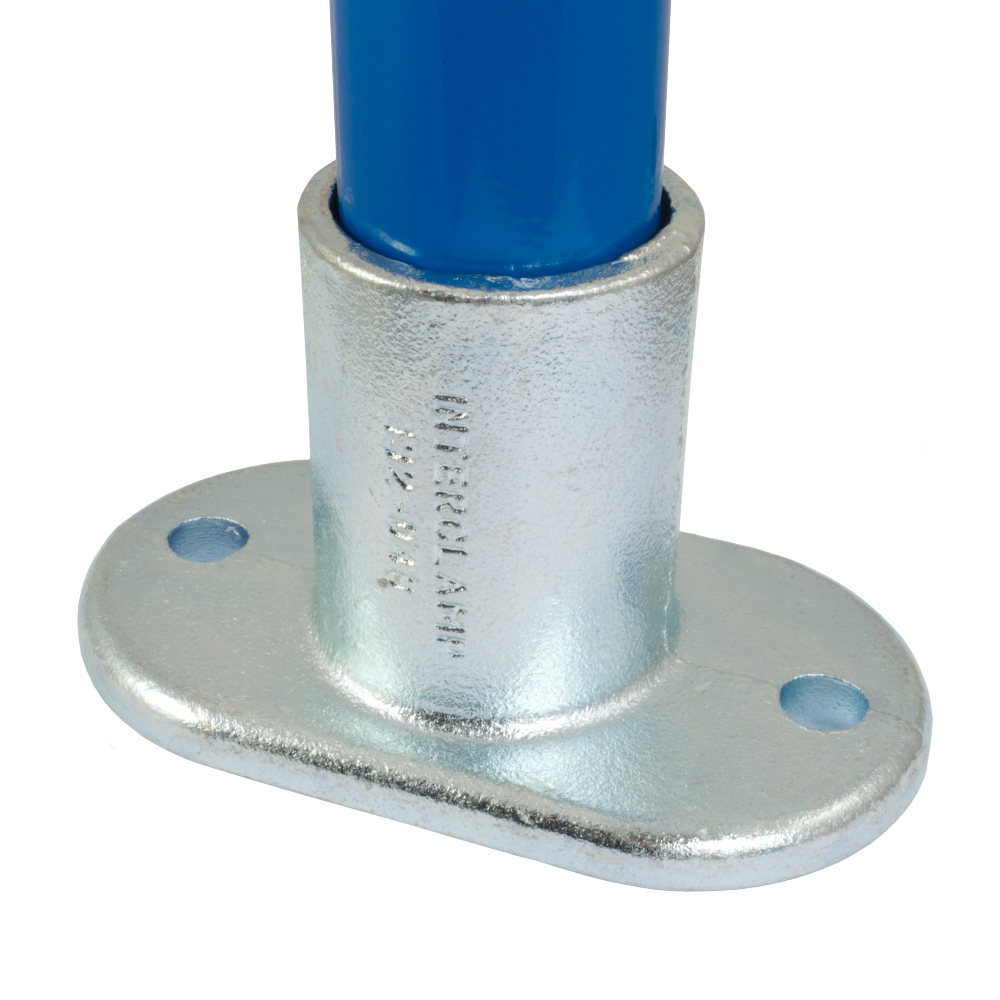

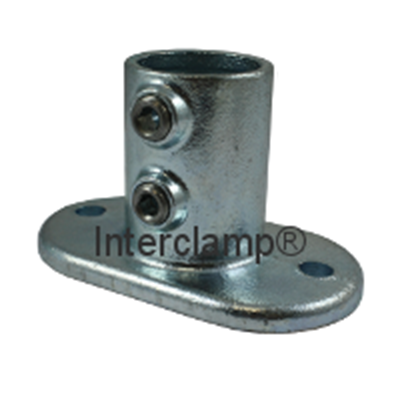

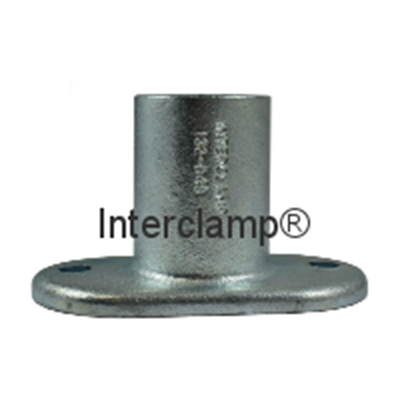

Base flange, usually used for uprights on level sites. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. Type 132-D48 is designed to meet the dimensional requirements for parapets as defined by BS7818:1995 (Pedestrian Restraint Systems in Metal).

Warning: To achieve optimum load characteristics, this fitting should be fitted so that the fixing holes are in line with the applied load.

Range Print < Previous Next >

Product Data & Dimensions

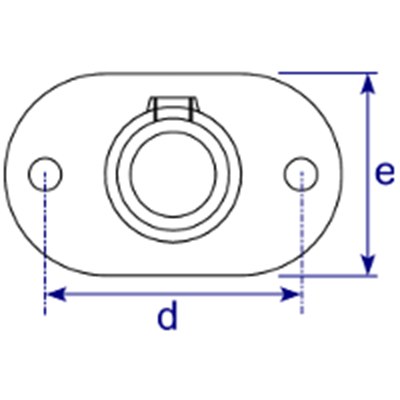

Dimensions Image 1 - 132 - Railing Base Flange

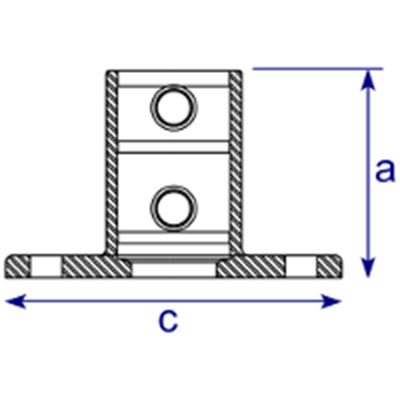

Dimensions Image 2 - 132 - Railing Base Flange
Size a (mm) c (mm) d (mm) e (mm) Hole Dia (mm) Weight (Kg) Box Qty* GTIN / EAN No
  A27   60   105   76   52   11   0.39   80   5060511020626
  B34   71   127   89   62   15   0.65   45   5060511020633
  C42   84   139   101   72   15   0.88   30   5060511020640
  D48   89   152   114   86   15   1.17   23   5060511020657
  E60   104   165   127   96   18   1.59   17   5060511020664

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

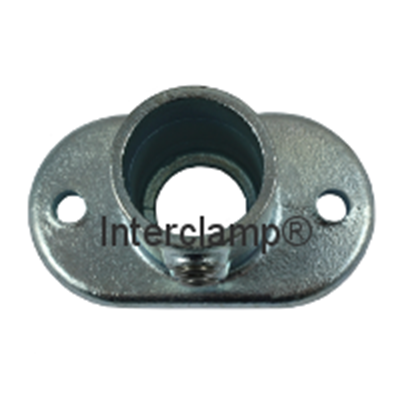

Product Images 1 - 132 - Railing Base Flange
