128 - 3 Way Elbow

128 - 3 Way Elbow

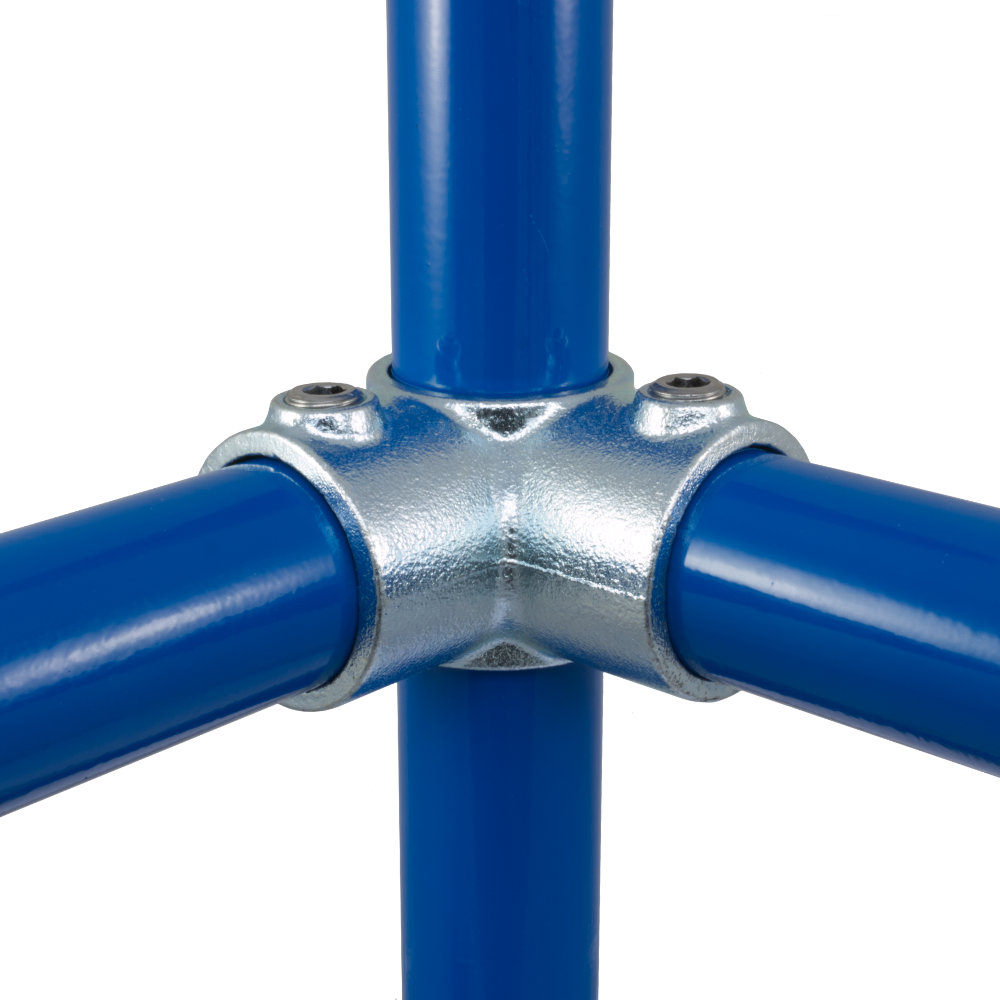

90° corner joint, often used where top rail meets corner upright on level sites. Often paired with type 116.

Range Print < Previous Next >

Product Data & Dimensions

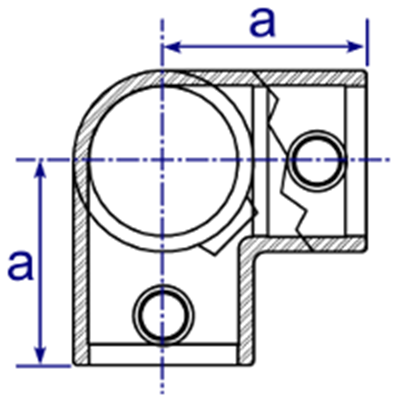

Dimensions Image 1 - 128 - 3 Way Elbow
Size a (mm) Weight (Kg) Box Qty* GTIN / EAN No
  A27   41   0.37   78   5060511020459
  B34   48   0.51   48   5060511020466
  C42   60   0.78   24   5060511020473
  D48   68   0.97   20   5060511020480
  E60   84   1.73   10   5060511020497

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

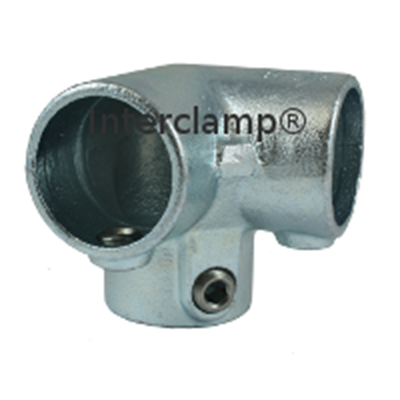

Product Images 1 - 128 - 3 Way Elbow

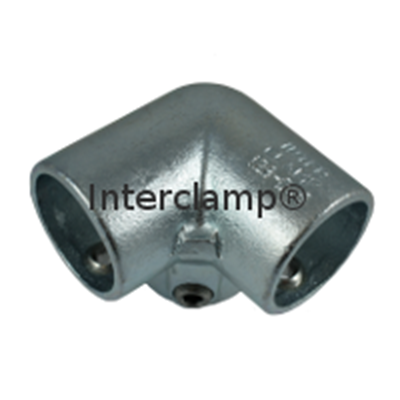

Product Images 2 - 128 - 3 Way Elbow

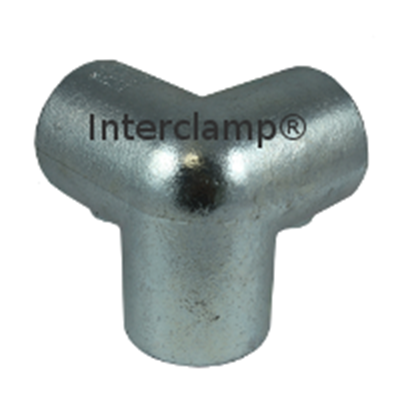

Product Images 3 - 128 - 3 Way Elbow
