129 - Adjustable Short Tee (30° to 60°)

129 - Adjustable Short Tee (30° to 60°)

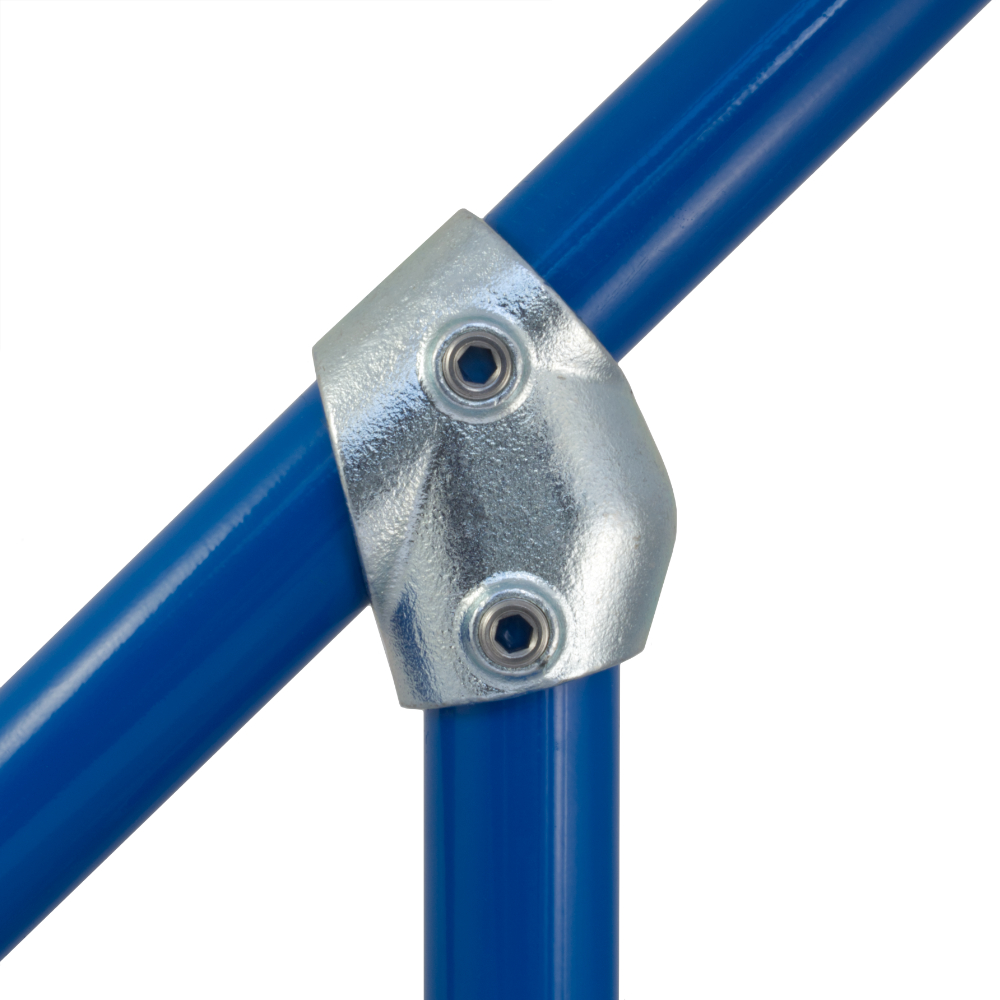

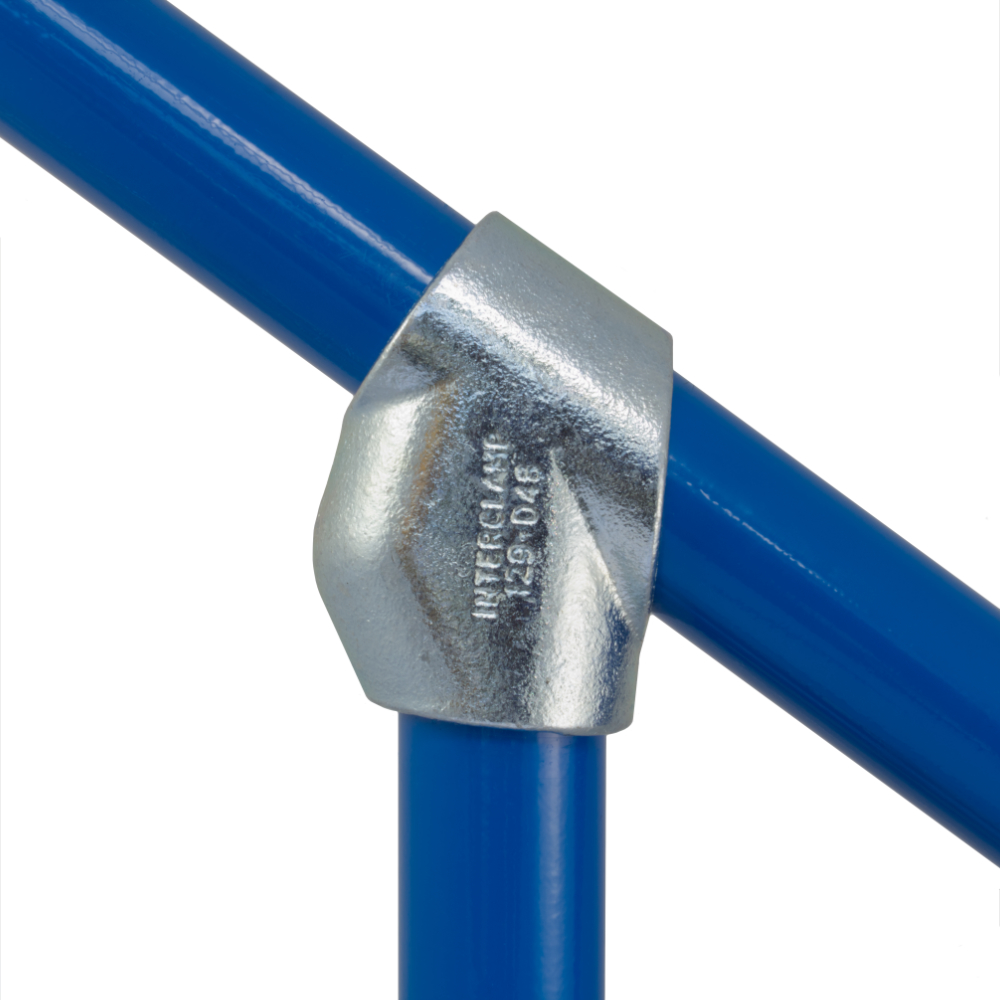

Adjustable from 30° to 60°, often used on staircase top rails and braces. The through tube (sloping in photo) cannot be joined within the fitting.

Range Print < Previous Next >

Product Data & Dimensions

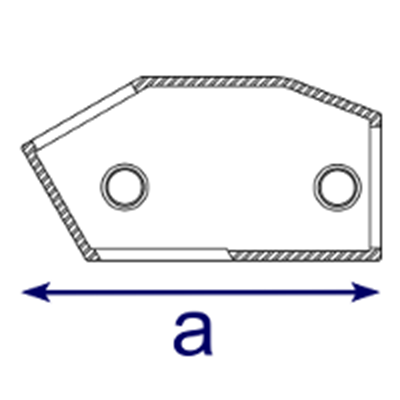

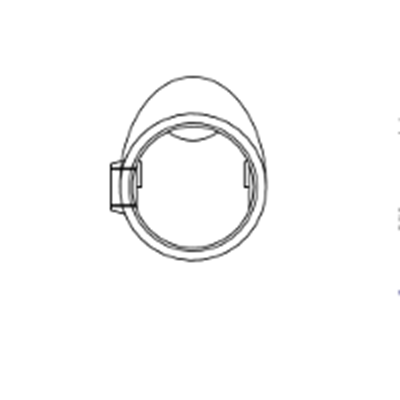

Dimensions Image 1 - 129 - Adjustable Short Tee (30° to 60°)
Dimensions Image 2 - 129 - Adjustable Short Tee (30° to 60°)
Size b (mm) Weight (Kg) Box Qty* GTIN / EAN No
  A27   109   0.30   100   5060511020503
  B34   109   0.42   48   5060511020510
  C42   132   0.67   32   5060511020527
  D48   146   0.80   24   5060511020534

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

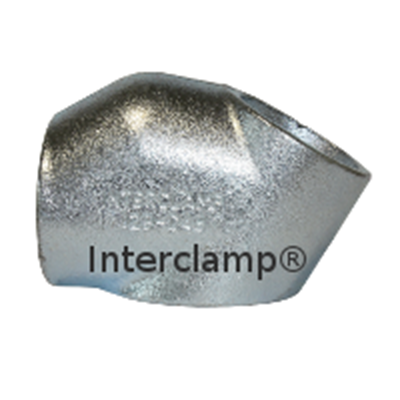

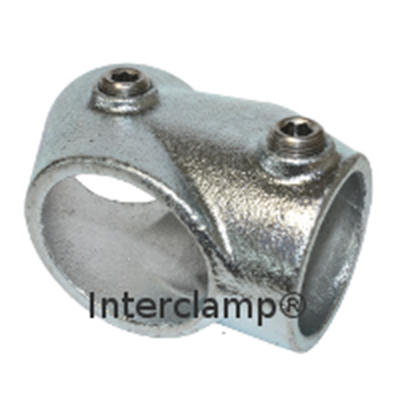

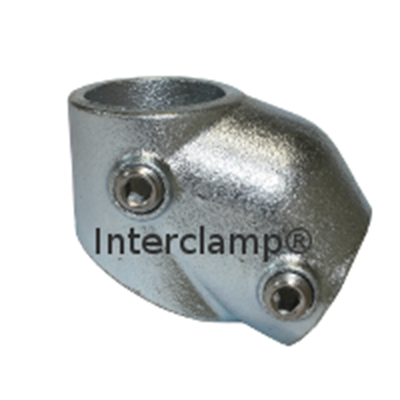

Product Images 1 - 129 - Adjustable Short Tee (30° to 60°)
Product Images 2 - 129 - Adjustable Short Tee (30° to 60°)
Product Images 3 - 129 - Adjustable Short Tee (30° to 60°)
