116 - Corner (Middle Rail)

116 - Corner (Middle Rail)

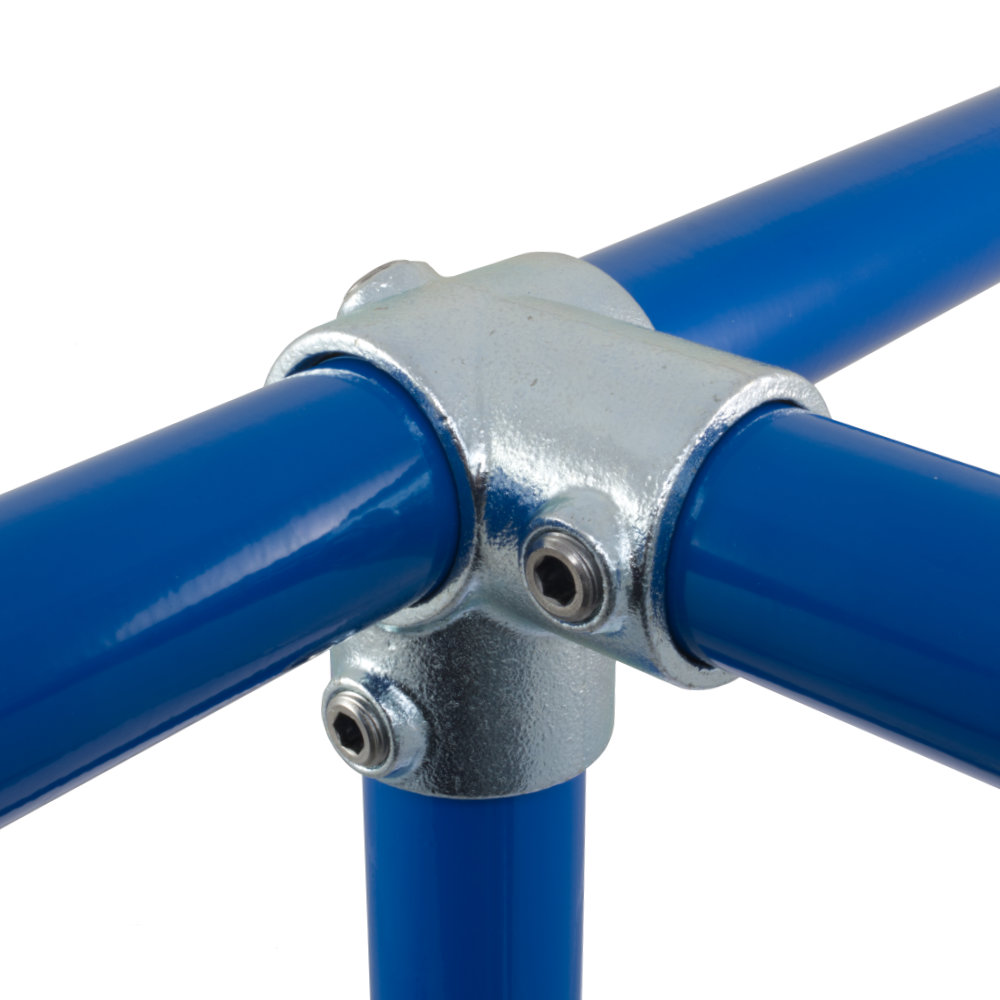

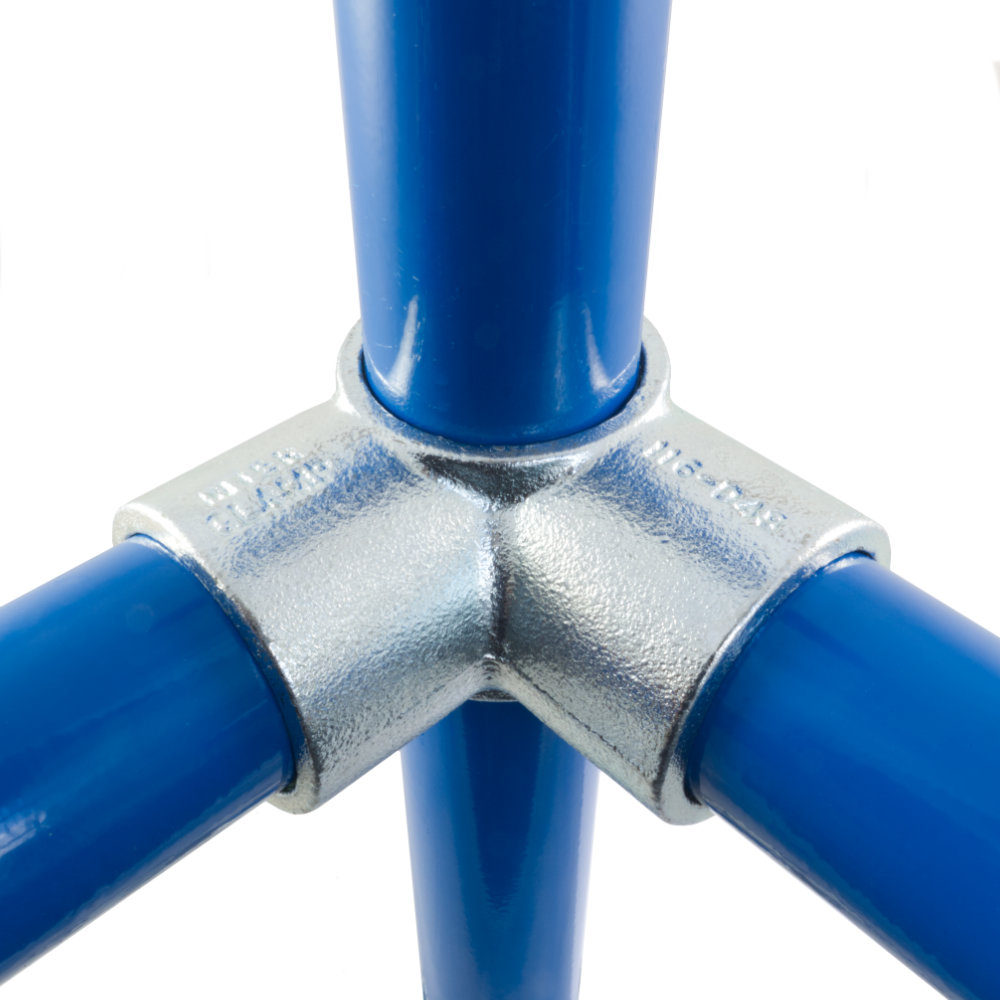

90° corner joint, often used on middle rail on level sites and often paired with type 128. The through tube (vertical in photo) cannot be joined within the fitting.

Range Print < Previous Next >

Product Data & Dimensions

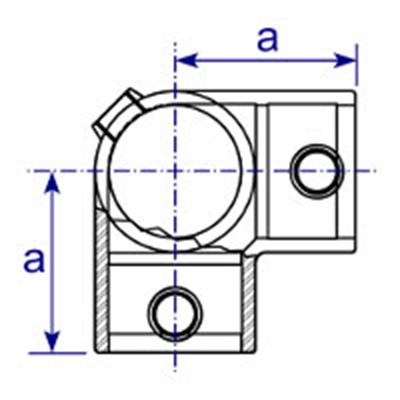

Dimensions Image 1 - 116 - Corner (Middle Rail)

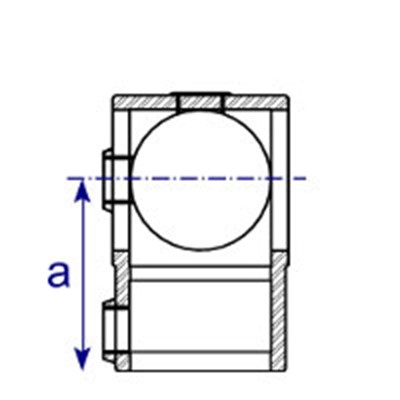

Dimensions Image 2 - 116 - Corner (Middle Rail)
Size a (mm) Weight (Kg) Box Qty* GTIN / EAN No
  A27   41   0.29   105   5060511020169
  B34   46   0.43   56   5060511020183
  C42   60   0.63   40   5060511020190
  D48   68   0.73   28   5060511020206
  E60   84   1.3   15   5060511020213

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

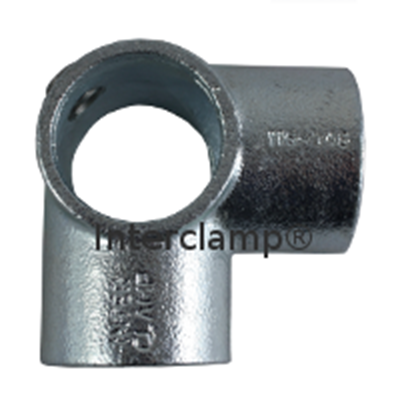

Product Images 1 - 116 - Corner (Middle Rail)

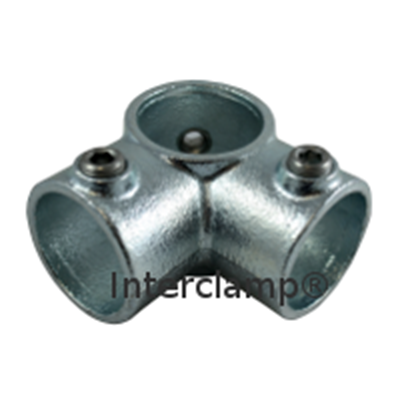

Product Images 2 - 116 - Corner (Middle Rail)
