182 - Hook

182 - Hook

Usually used where chains need to be easily removed for access. The tube cannot be joined within the fitting.

This is not recommended as a permanent chain location, for permanent chain locations one end should be retained in place using a 173M fitting and fixed with a nut and bolt.

Range Print < Previous Next >

Product Data & Dimensions

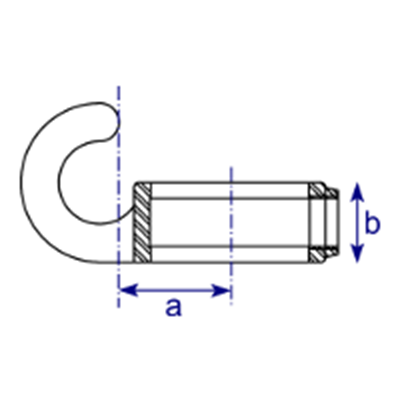

Dimensions Image 1 - 182 - Hook
Size a (mm) b (mm) Weight (Kg) Box Qty* GTIN / EAN No
  A27   23.5   25   0.17   225   5060511022323
  B34   34   25   0.19   225   5060511022330
  C42   39   25   0.22   160   5060511022347
  D48   41   25   0.22   140   5060511022354

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
