169M - Swivel Base Flange Male Part

169M - Swivel Base Flange Male Part

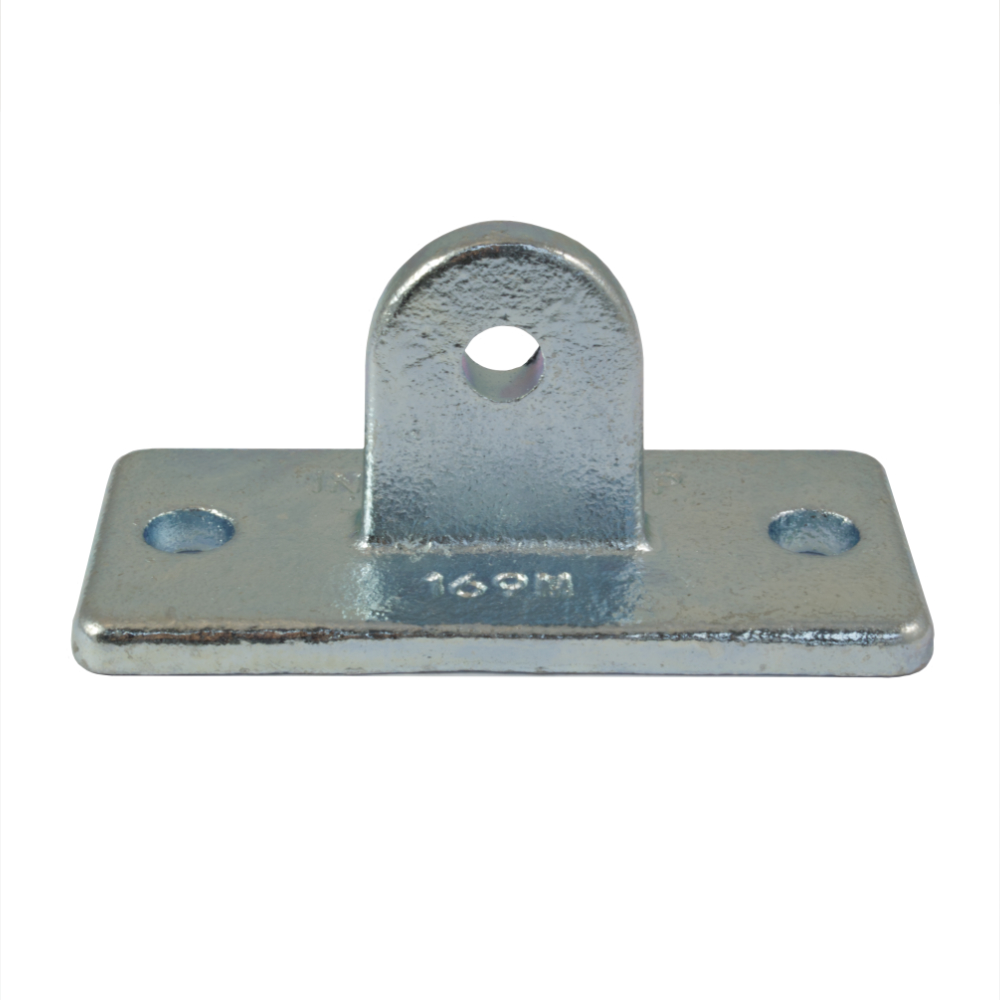

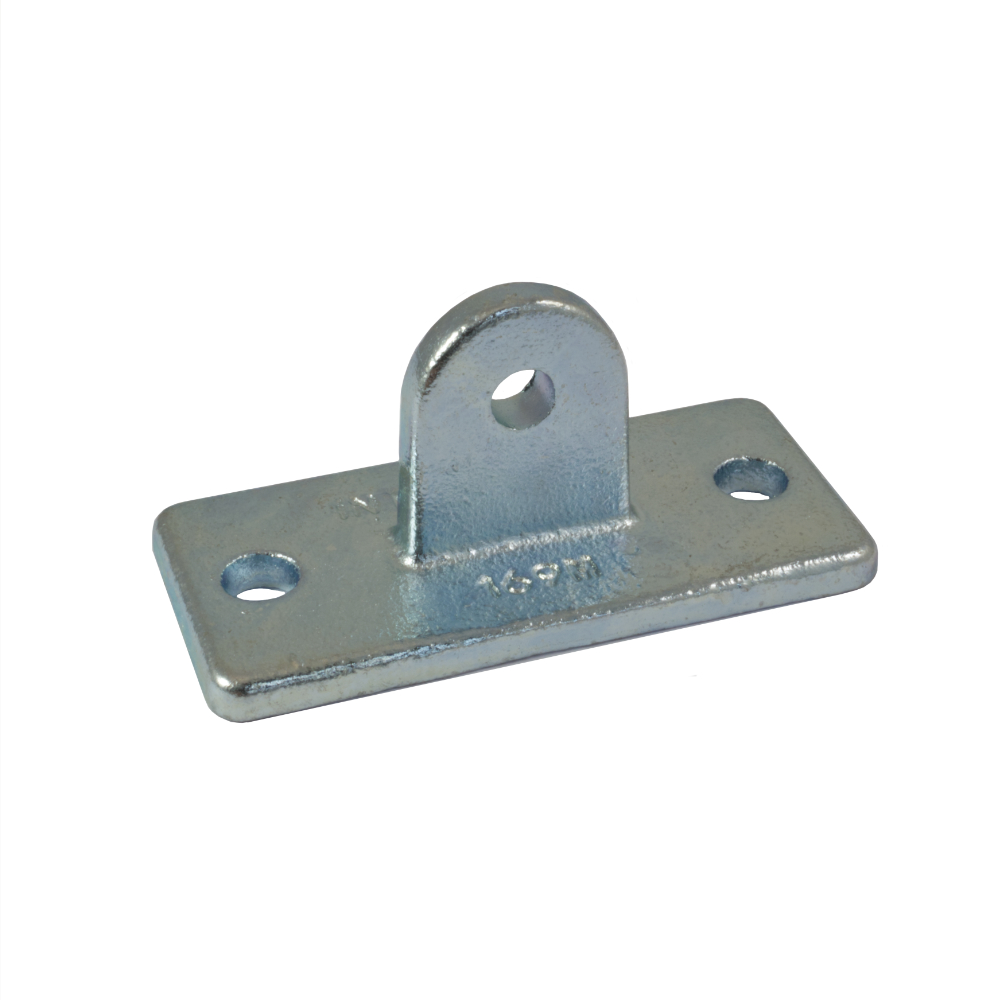

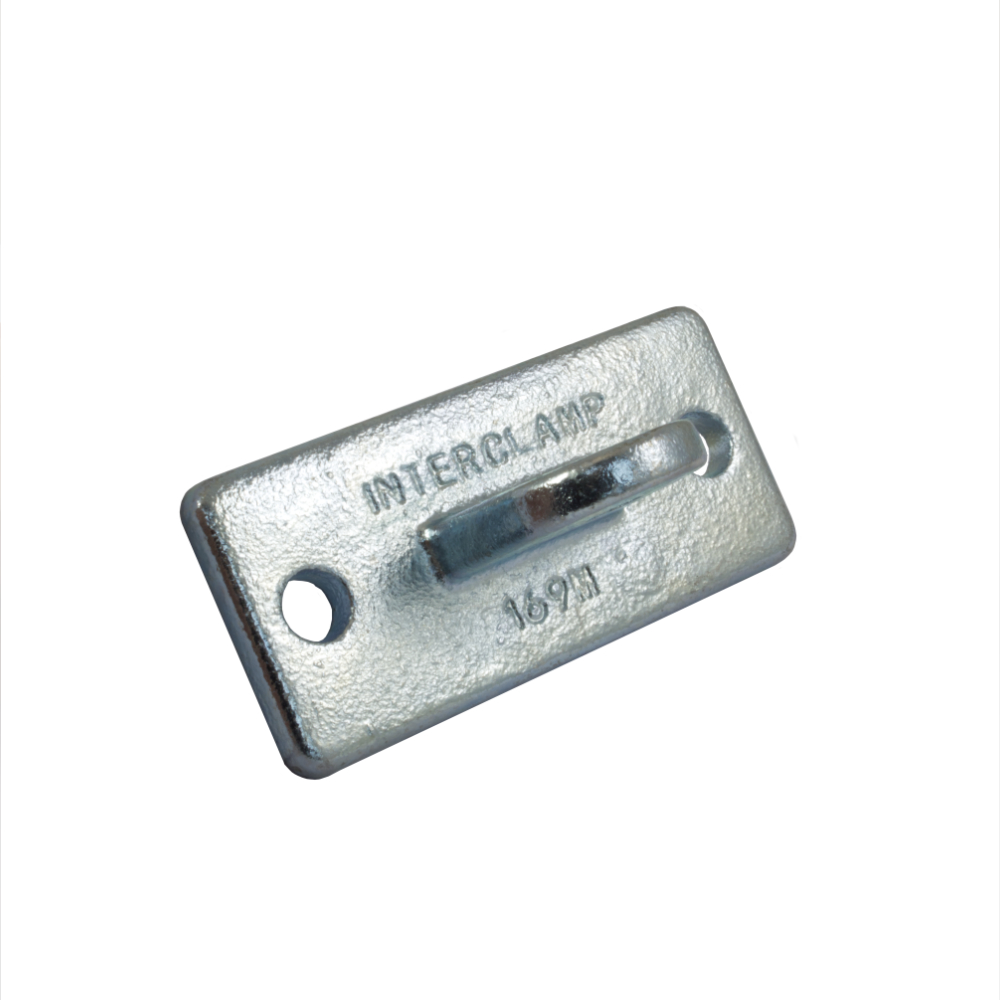

A versatile swivel fitting, useful for fixing angled tubes to walls etc. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. N.B. This fitting is available in one size only to suit all sizes of type 173F. This fitting is not designed to withstand lateral loading.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Range Print < Previous Next >

Product Data & Dimensions

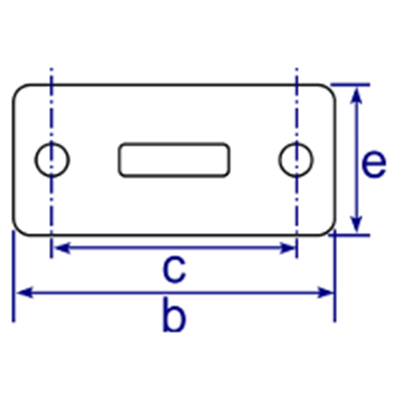

Dimensions Image 1 - 169M - Swivel Base Flange Male Part

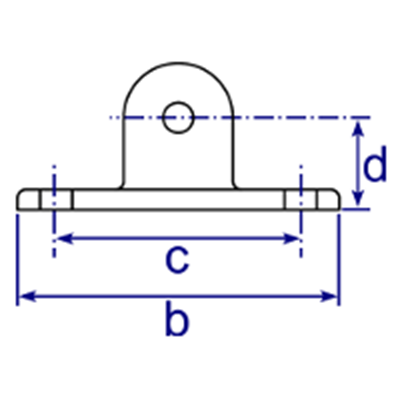

Dimensions Image 2 - 169M - Swivel Base Flange Male Part
Size b (mm) c (mm) d (mm) Hole Dia (mm) Weight (Kg) Box Qty* GTIN / EAN No
  -   112   85   32   11   0.37   100   5060511021906

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
