166 - Adjustable Knuckle

166 - Adjustable Knuckle

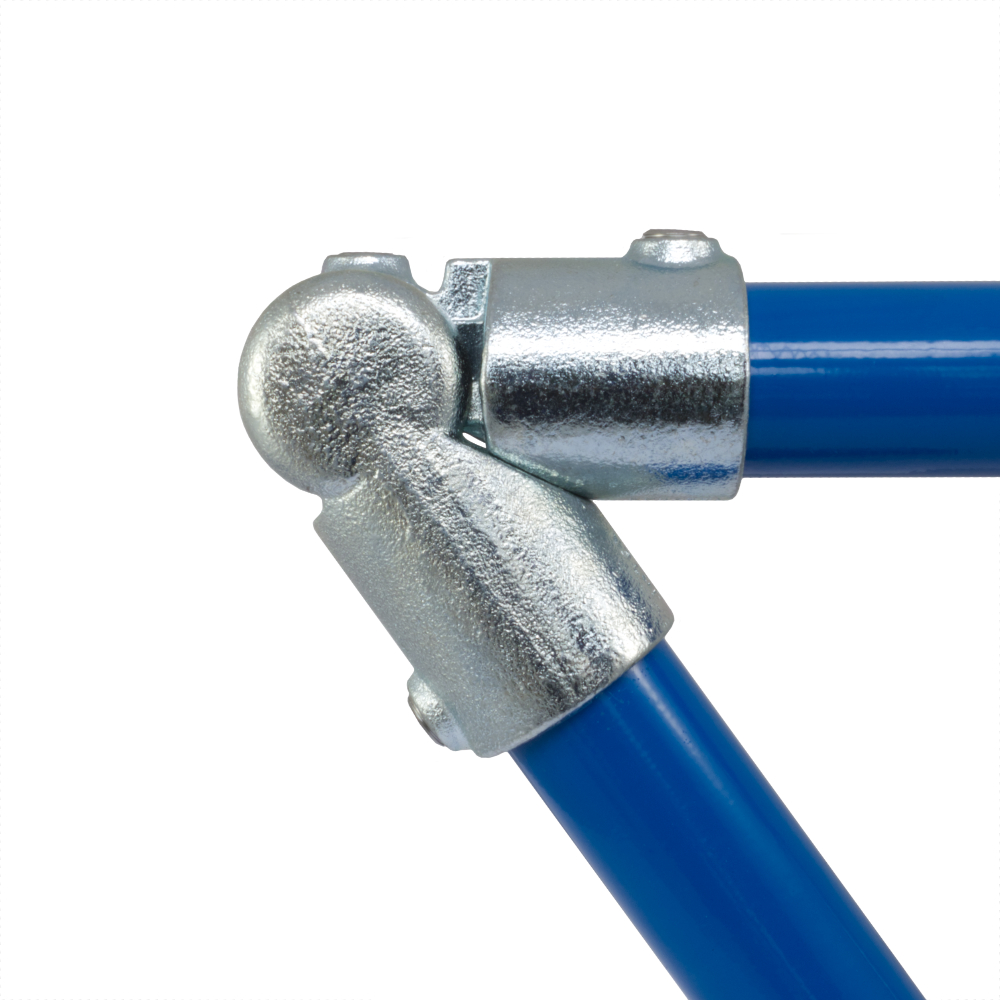

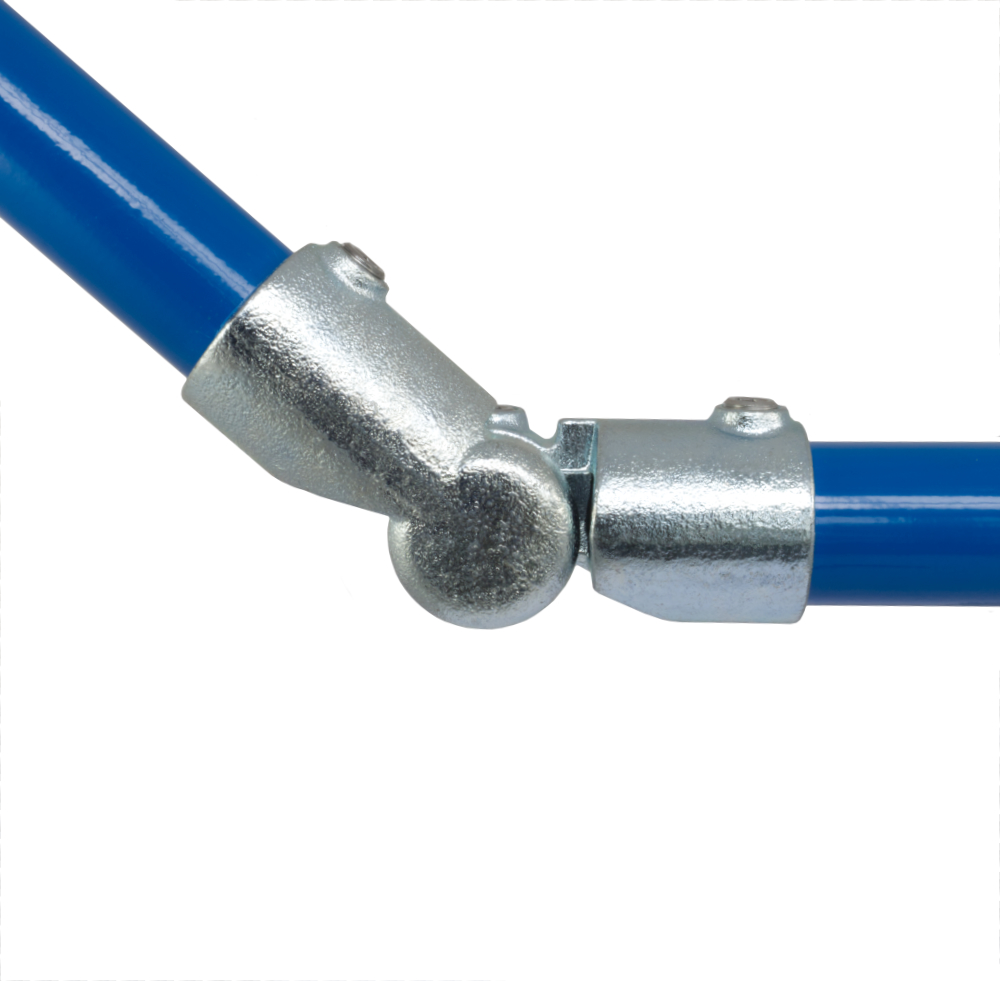

A versatile fitting, often used where a horizontal rail is joined to a sloping section. Once the desired angle is obtained, the knuckle is secured with a standard setscrew.

Range Print < Previous Next >

Product Data & Dimensions

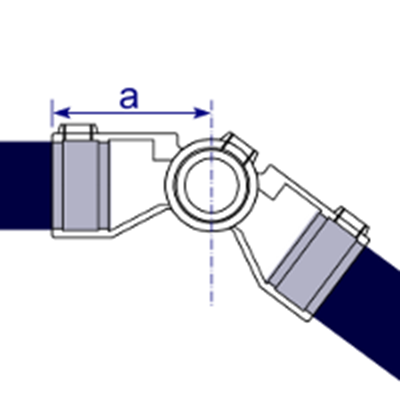

Dimensions Image 1 - 166 - Adjustable Knuckle

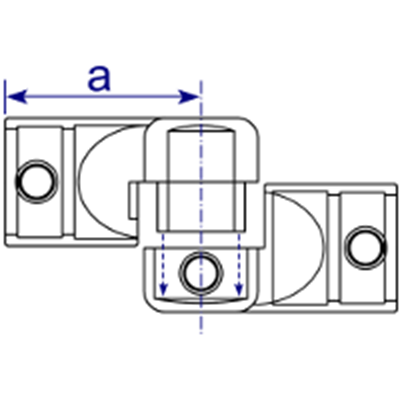

Dimensions Image 2 - 166 - Adjustable Knuckle
Size a (mm) Weight (kg) Box Qty* Part No
  AA21   -   0.28   50   166-AA21
  B34   78   0.87   42   166-B34
  C42   88   1.28   28   166-C42
  D48   93   1.45   23   166-D48
  E60   110   2.34   12   166-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
