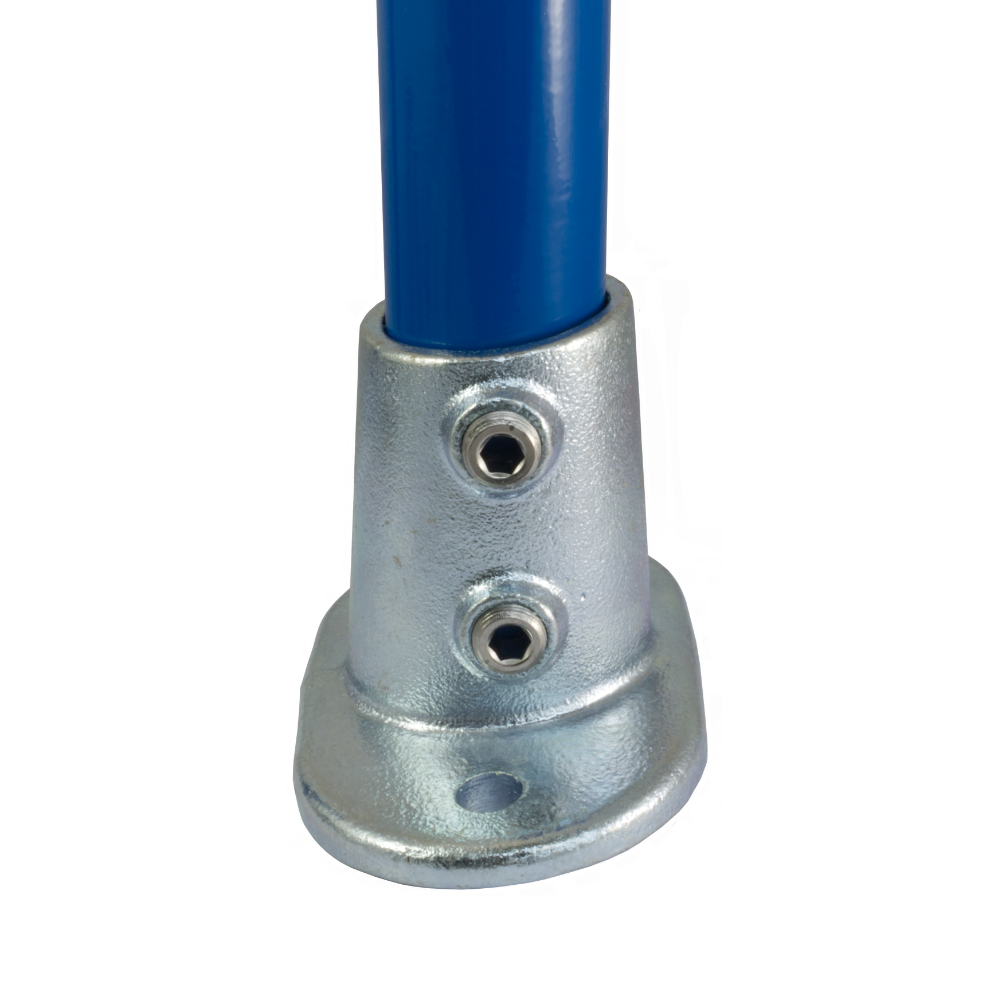

152 - Slope Base Flange (0° - 11°)

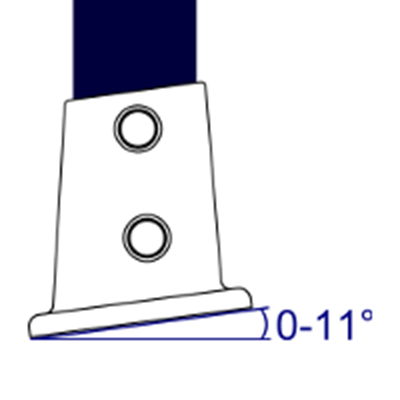

Base flange for sloping sites, adjustable from 0° to 11°, usually used for guardrail and wheelchair ramp uprights. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request.
To achieve optimum load characteristics, this fitting should be fitted so that the fixing holes are in line with the applied load.

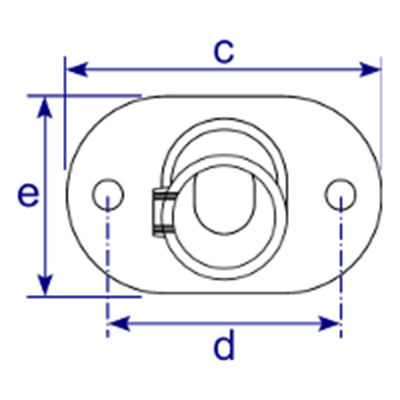

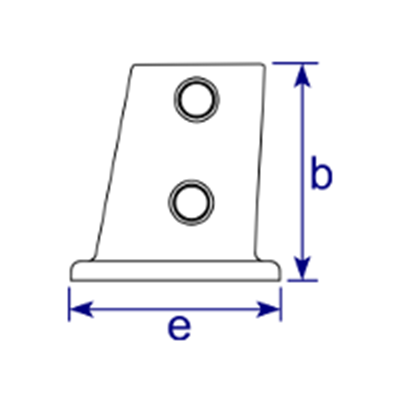

Product Data & Dimensions
|Size||b (mm)||c (mm)||d (mm)||e (mm)||Hole Dia (mm)||Weight (kg)||Box Qty*||Part No|
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
