104 - Long Tee

104 - Long Tee

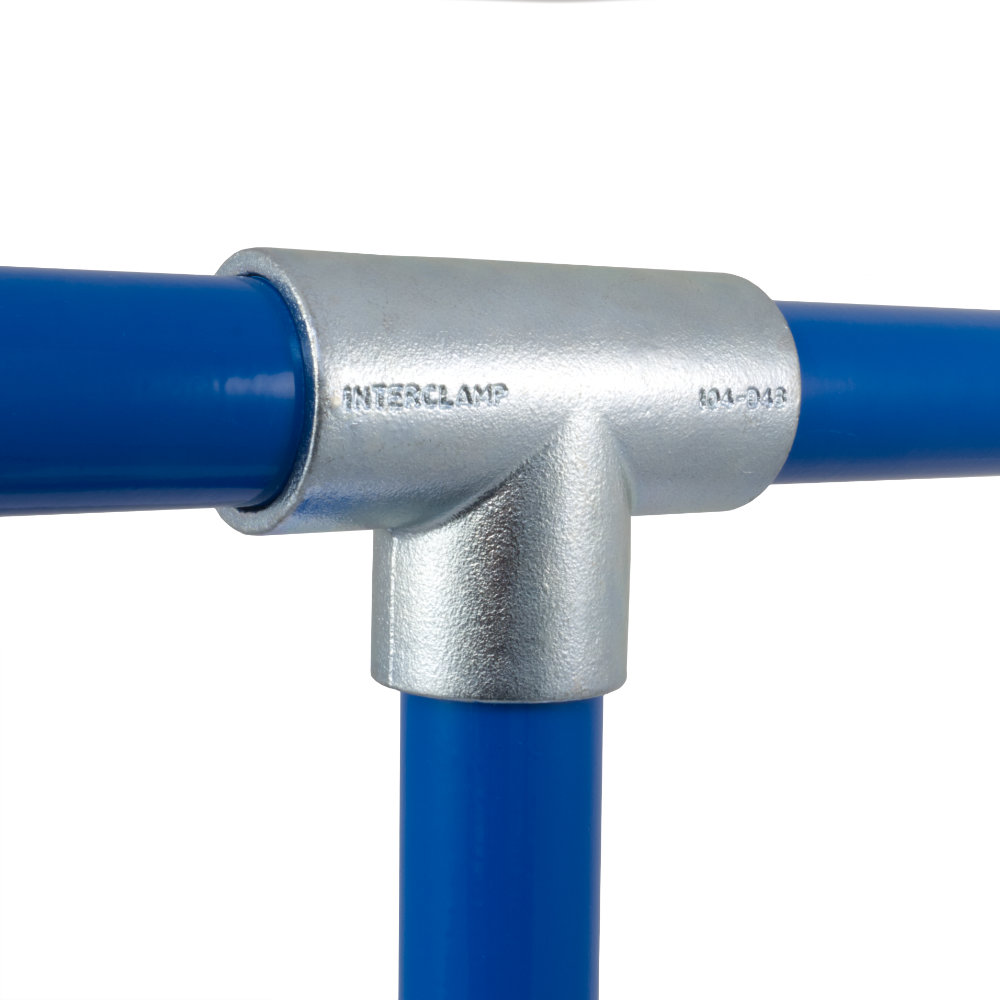

The Interclamp® 104 Long Tee is a 90° joint, often used to join intermediate uprights to top rails on level sites. This key clamp / tube clamp can be used where through tube (horizontal in photo) has to be joined within the fitting. Where such a joint is not required, type 101 can often be used as an alternative.

Range Print < Previous Next >

Product Data & Dimensions

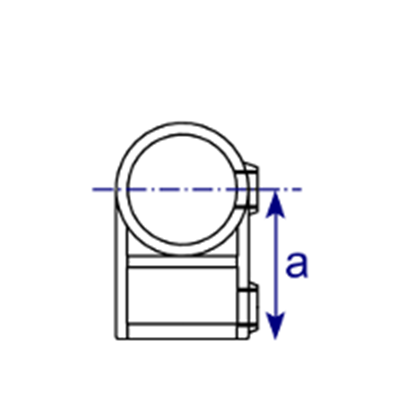

Dimensions Image 1 - 104 - Long Tee

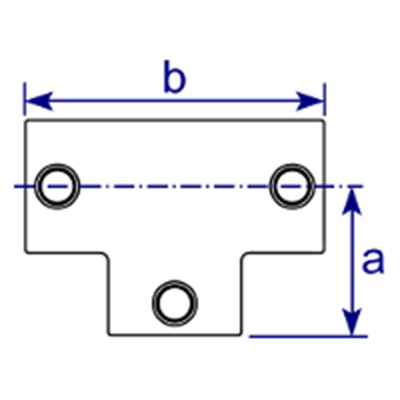

Dimensions Image 2 - 104 - Long Tee
Size a (mm) b (mm) Weight (kg) Box Qty* Part No
  A27   41   82   0.35   80   104-A27
  B34   46   92   0.51   50   104-B34
  C42   60   120   0.85   28   104-C42
  D48   68   135   0.98   22   104-D48
  E60   84   168   1.65   10   104-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

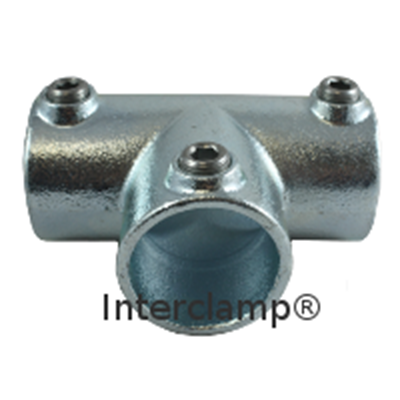

Product Images 1 - 104 - Long Tee

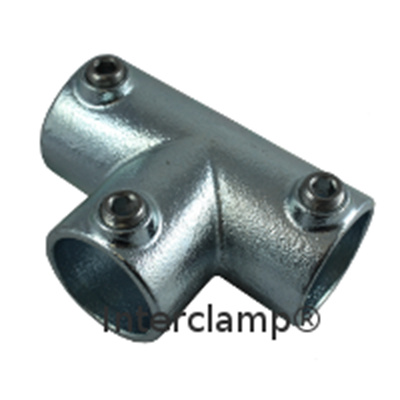

Product Images 2 - 104 - Long Tee

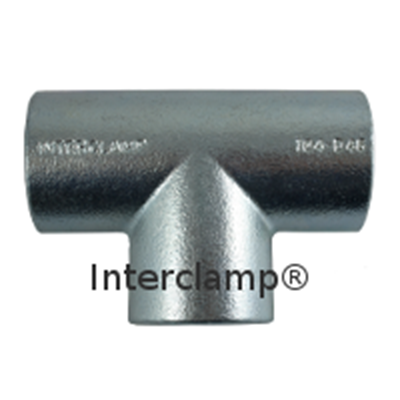

Product Images 3 - 104 - Long Tee
