900mm Pedestrian Barrier Panel

900mm Interclamp Galvanised Pedestrian Barrier is a modular safety system designed to integrate fully with the Interclamp handrail system and provide rapid construction of pedestrian control structures. The galvanised barrier offers strength, durability and versatility enabling it to be used in a wide variety of applications. Panels can be shipped directly to site as a complete package by selecting the relevant posts for the installation.

Top and bottom handrails are 1 ½” nominal bore (48.3mm od) galvanised tube with 12mm diameter solid vertical bars. To improve visibility for drivers through the barriers, the bars are staggered. Following fabrication, the barriers are hot-dipped galvanised in accordance with BS EN ISO 1461:2009. The galvanised barriers meet the infill requirements of Sections 2.4.1 and 2.4.2 of BS7818:1995 (Pedestrian Restraint Systems in Metal).

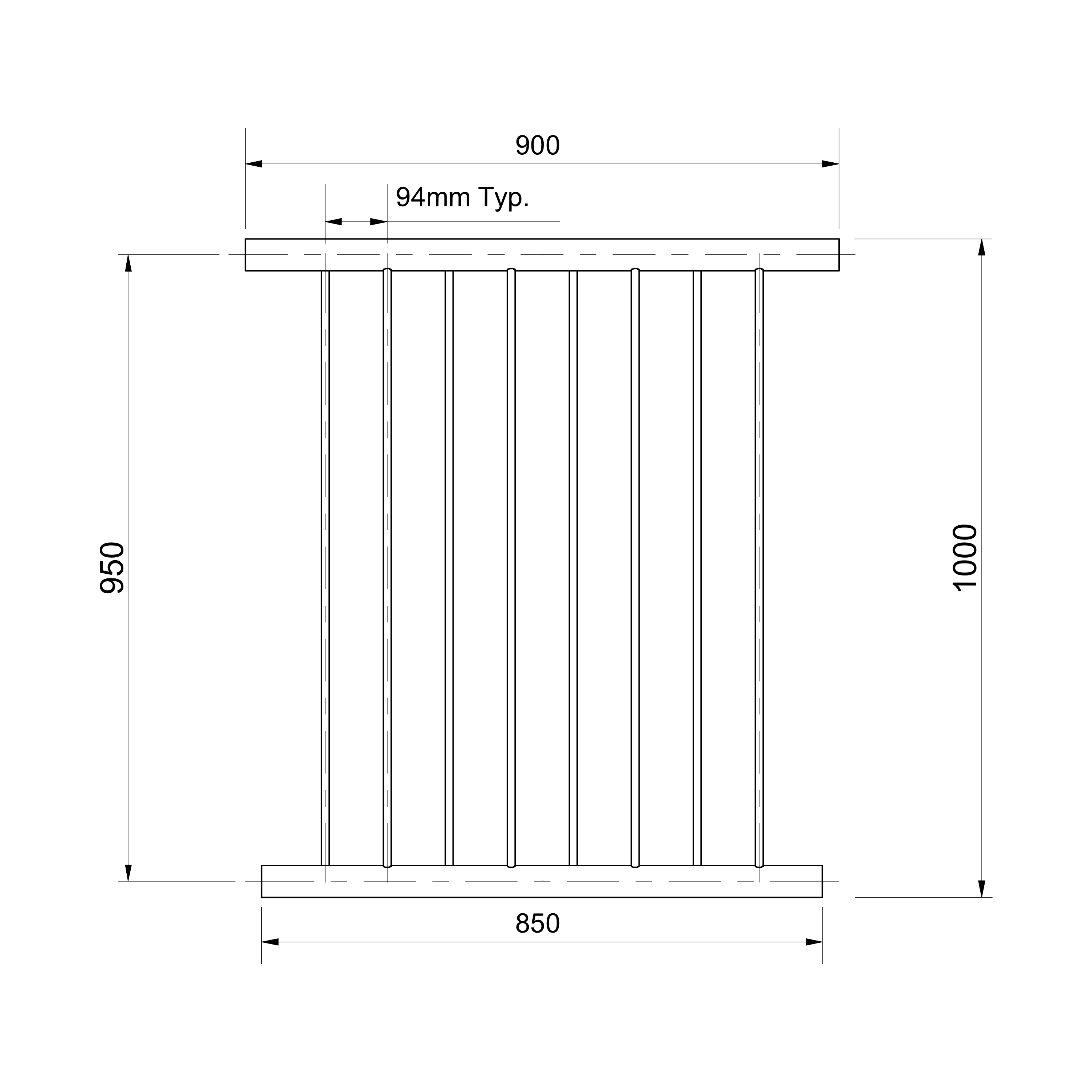

Product Data & Dimensions

Size Height (mm) Width (mm) Part No
  D48  1000 900


Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
