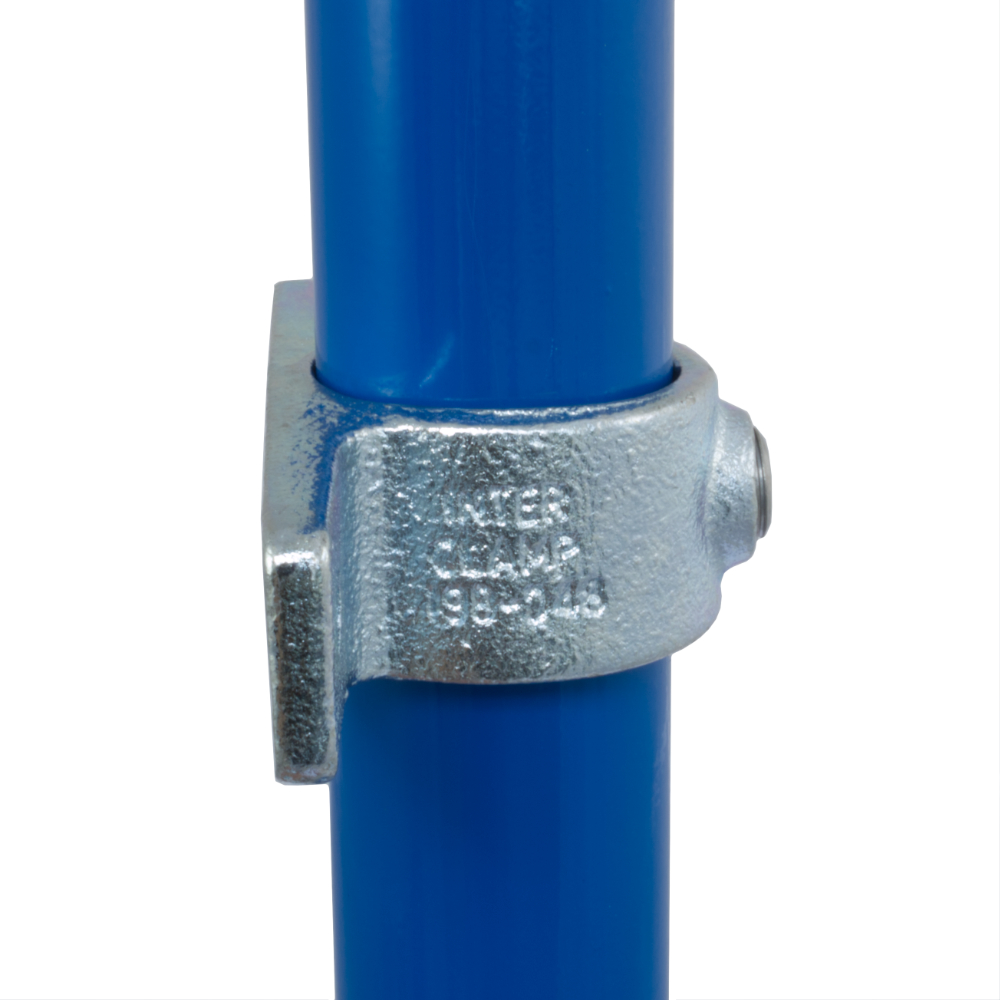

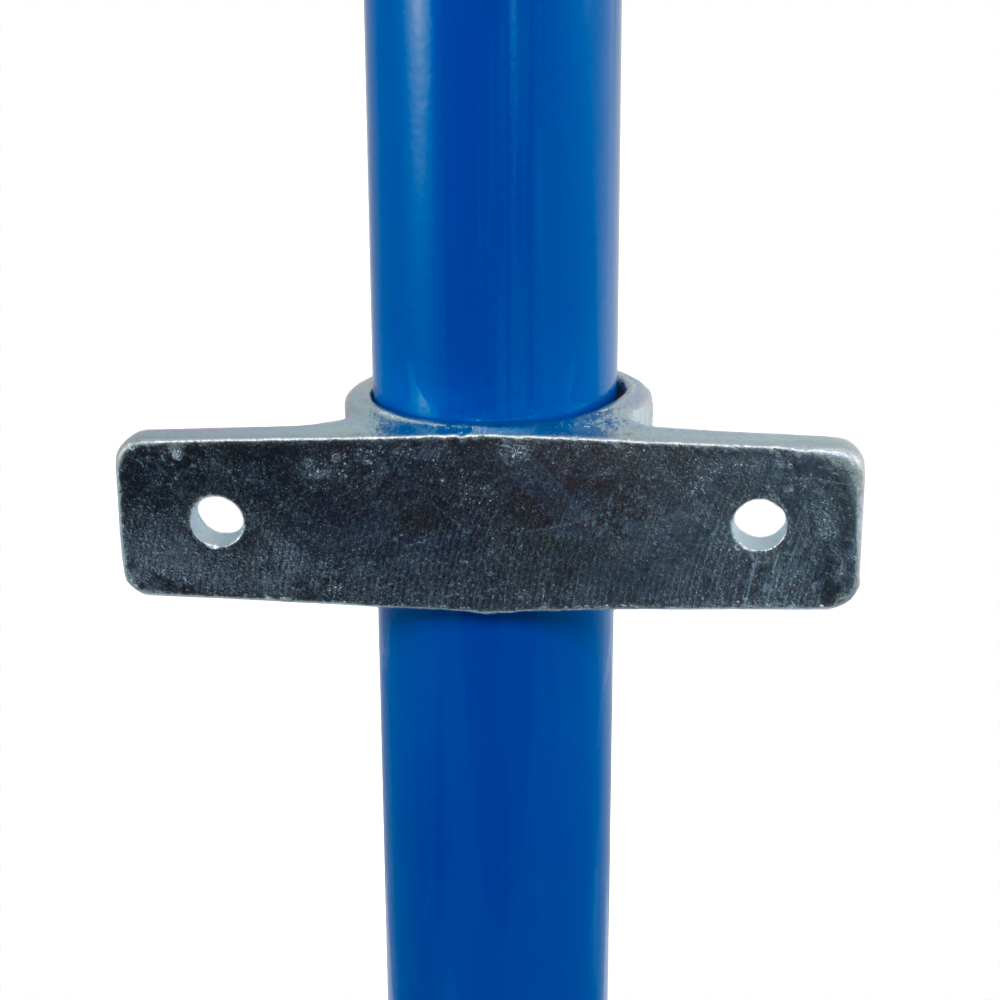

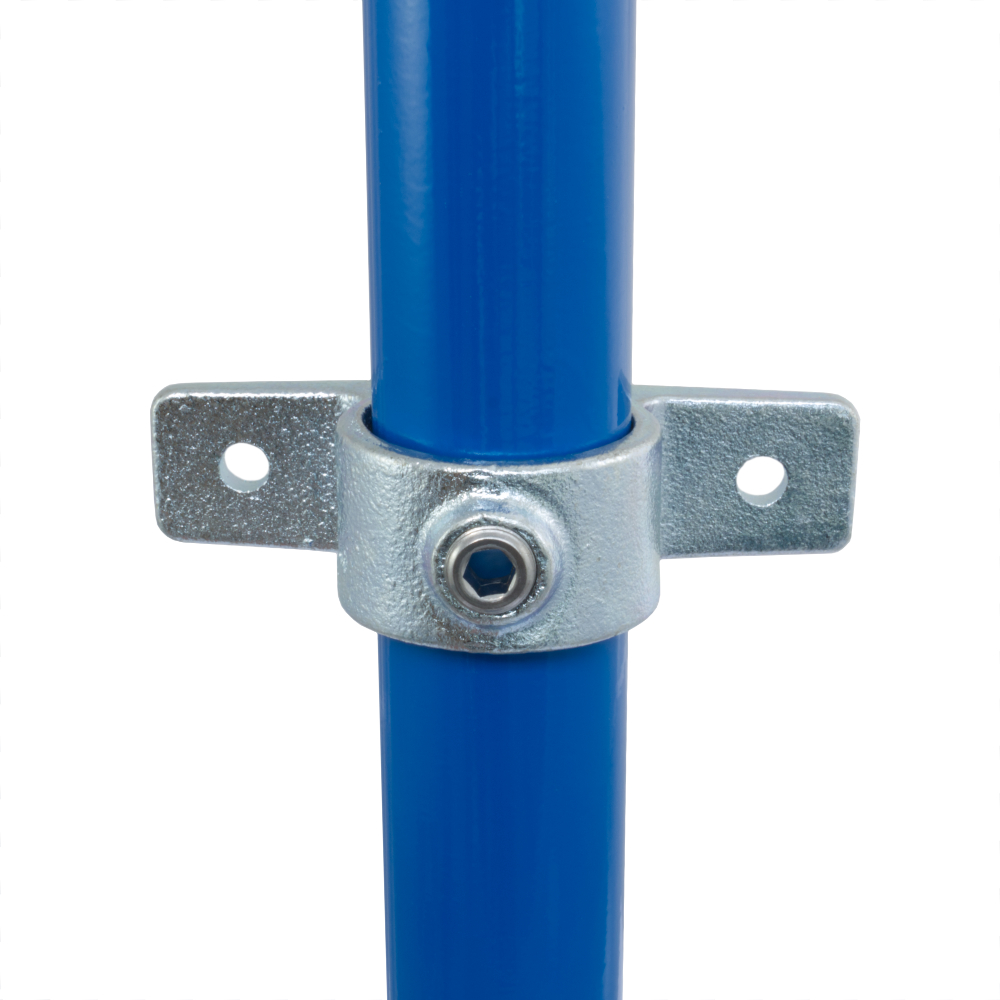

198 - Double-lugged Bracket

198 - Double-lugged Bracket

Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. The tube cannot be joined within the fitting.

Range Print < Previous Next >

Product Data & Dimensions

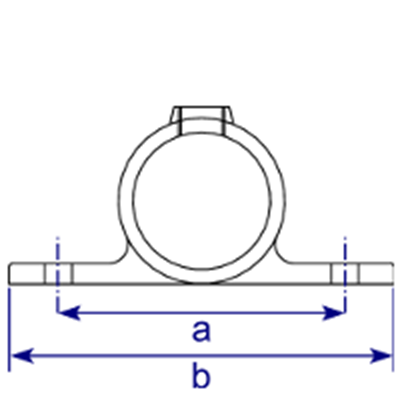

Dimensions Image 1 - 198 - Double-lugged Bracket

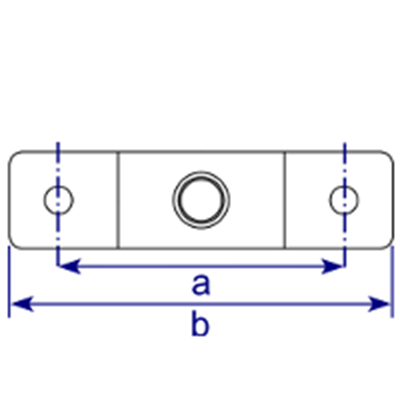

Dimensions Image 2 - 198 - Double-lugged Bracket
Size a (mm) b (mm) Weight (Kg) Box Qty* GTIN / EAN No
  B34   86   120   0.30   142   5060511022422
  C42   95   130   0.40   104   5060511022439
  D48   104   140   0.47   74   5060511022446

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
