191 - Ridge Fitting (27½°)

191 - Ridge Fitting (27½°)

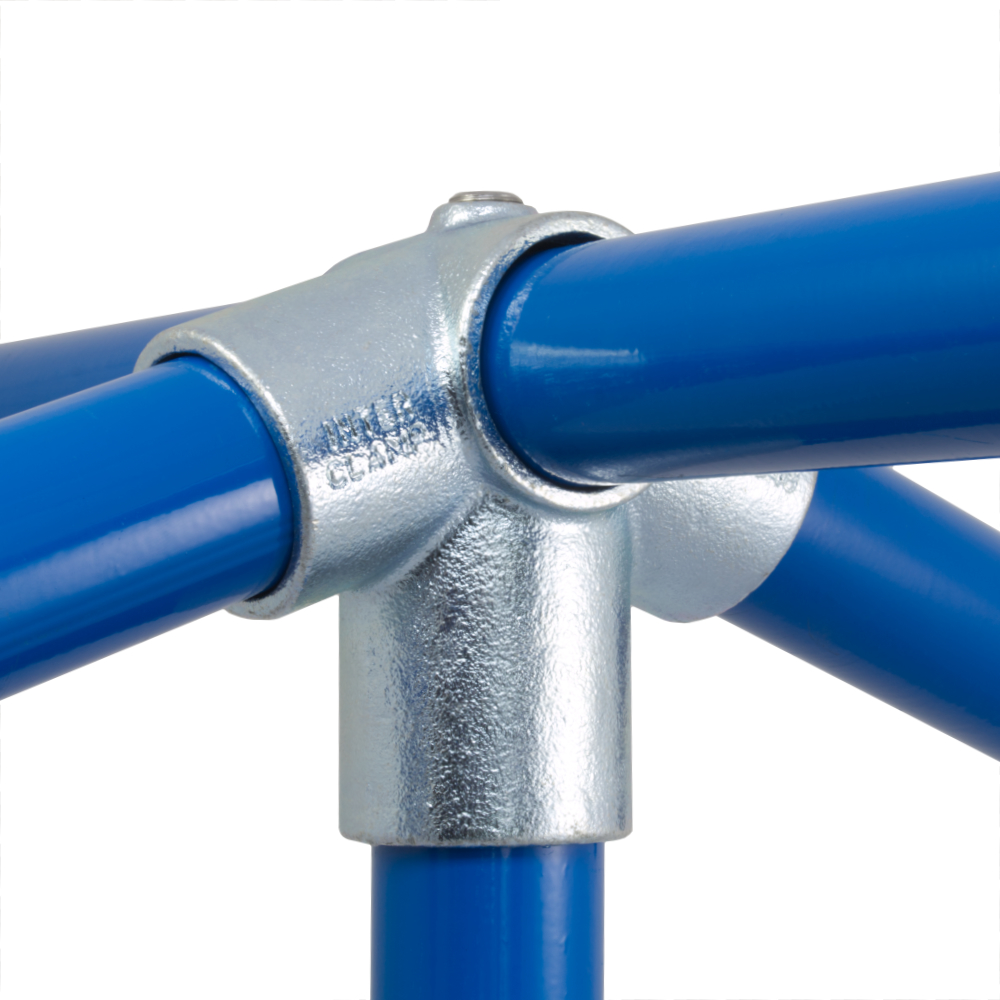

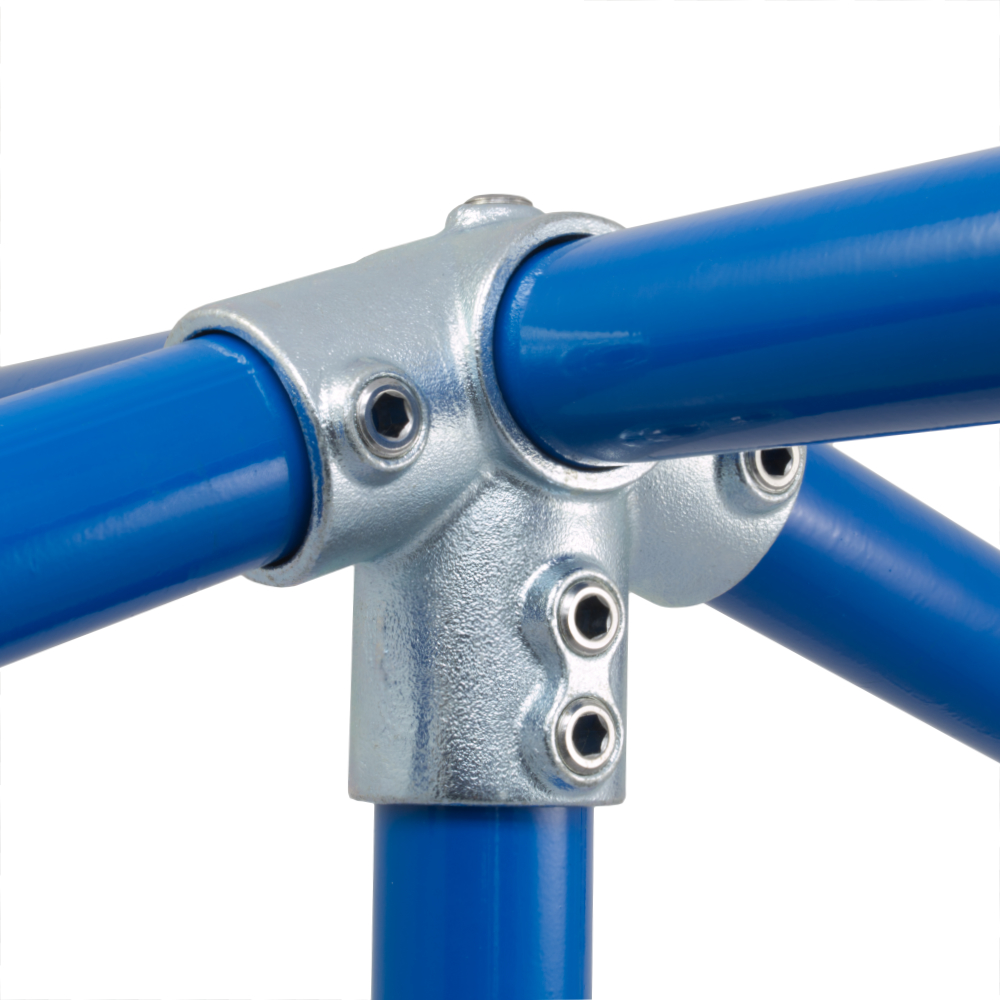

Usually used to form roof structures in conjunction with type 185, with an angle of 27½°. The ridge tube running longitudinally with the roof may be joined within the fitting (there are two setscrews acting on this tube, which are obscured in the photo).

Range Print < Previous Next >

Product Data & Dimensions

Size a (mm) b (mm) Weight (kg) Box Qty* Part No
  D48   68   90   1.13   12   191-D48
