174M - Swivel Tee Male Part

174M - Swivel Tee Male Part

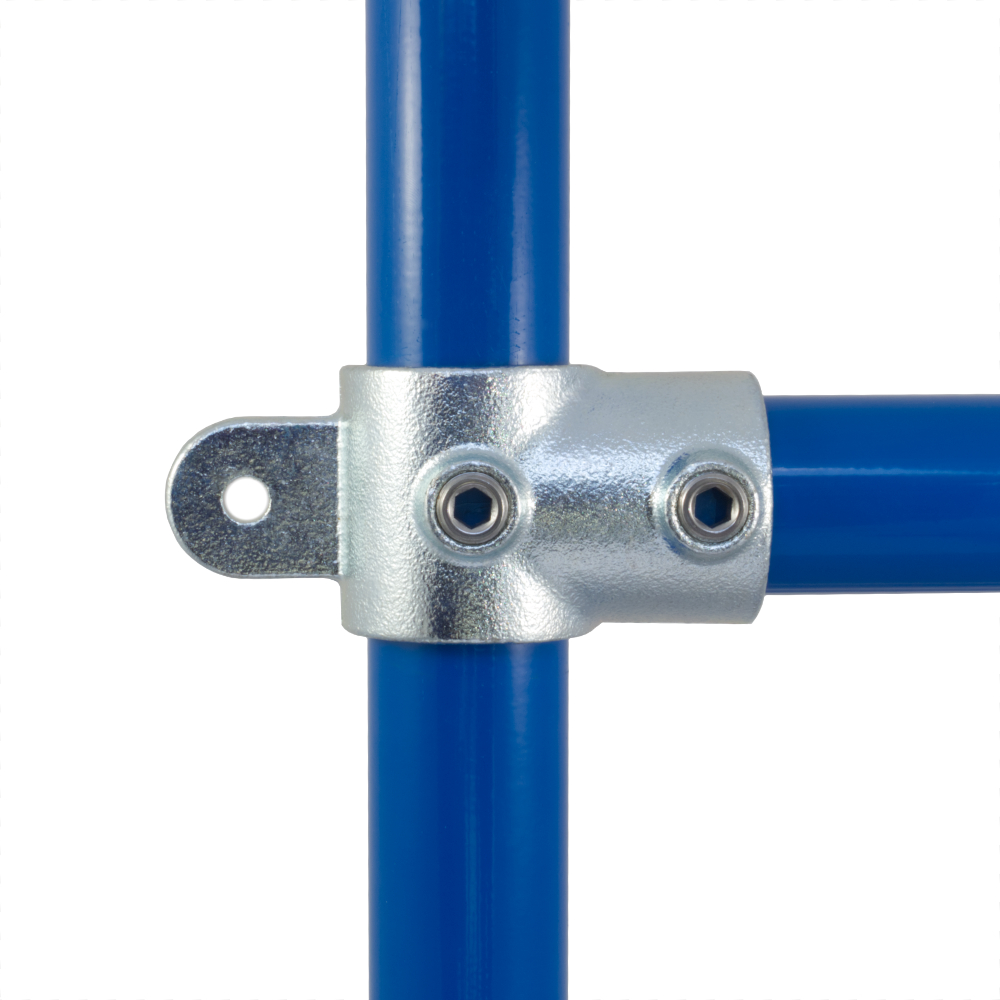

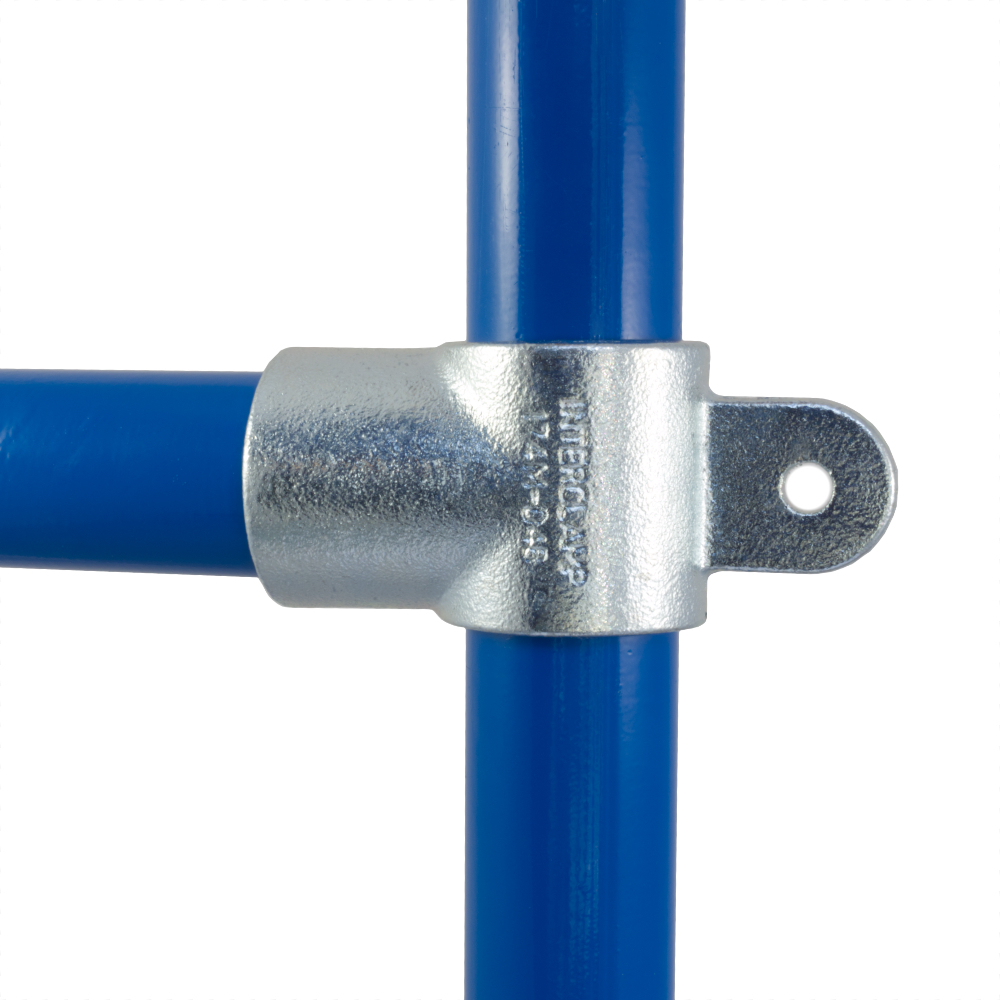

Short tee with single lug. The through tube (vertical in photo) cannot be joined within the fitting.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Range Print < Previous Next >

Product Data & Dimensions

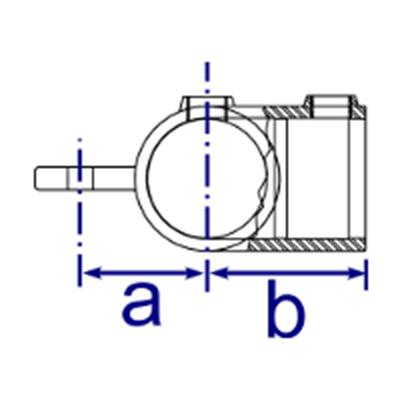

Dimensions Image 1 - 174M - Swivel Tee Male Part

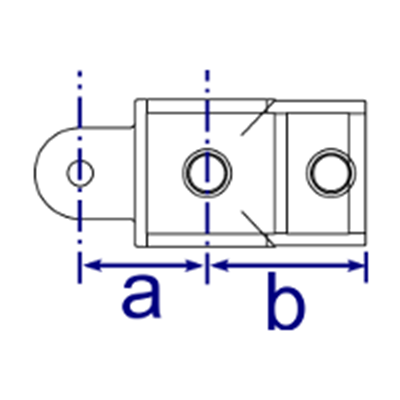

Dimensions Image 2 - 174M - Swivel Tee Male Part
Size a (mm) b (mm) Weight (Kg) Box Qty* GTIN / EAN No
  D48   53   68   0.67   35   5060511022194

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
