158 - Center Cross

158 - Center Cross

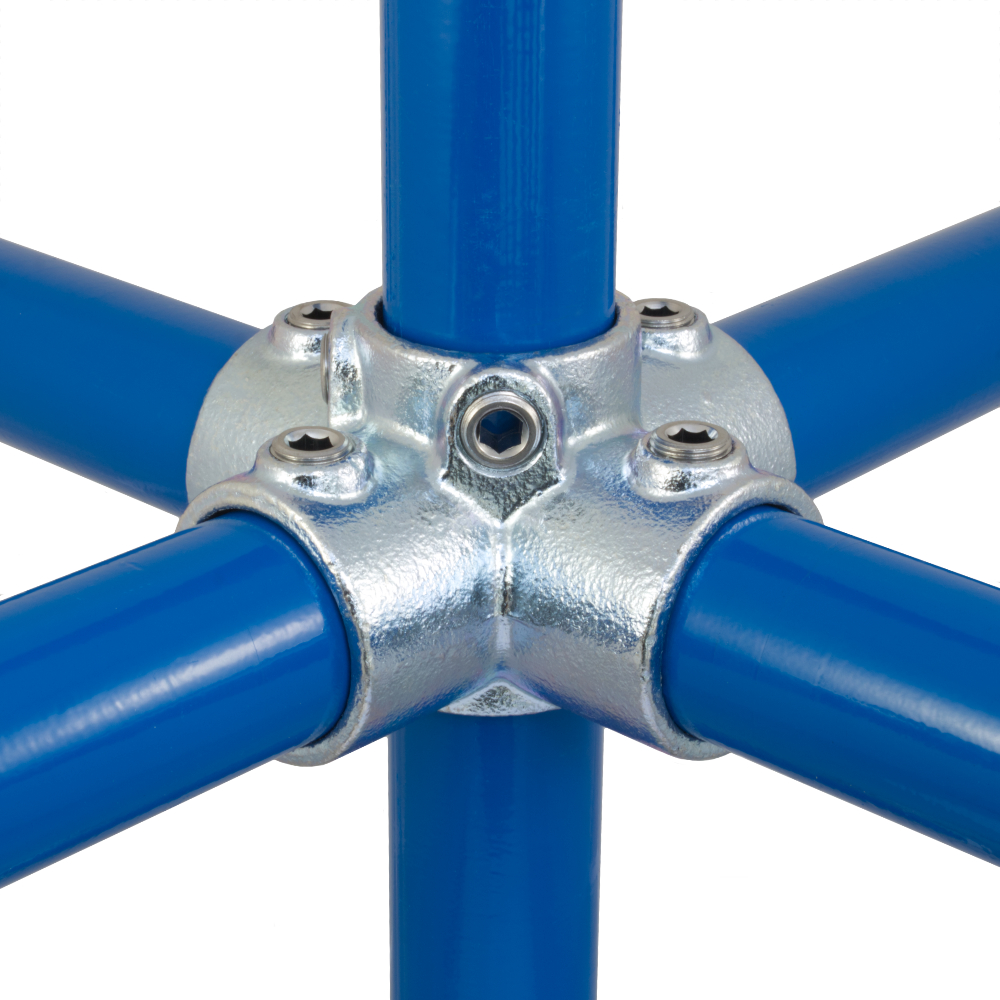

Designed to form a 90° joint between an upright which passes through the fitting and four other tubes. Usually used in the middle of larger structures such as self-contained play areas. The through tube (vertical in photo) cannot be joined within the fitting.

Range Print < Previous Next >

Product Data & Dimensions

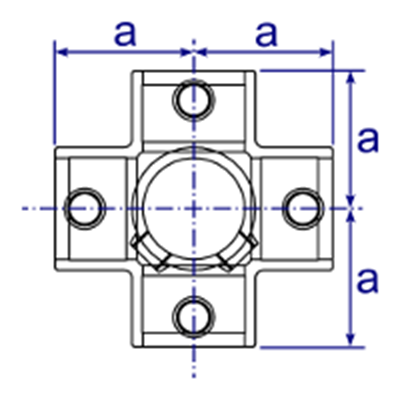

Dimensions Image 1 - 158 - Center Cross

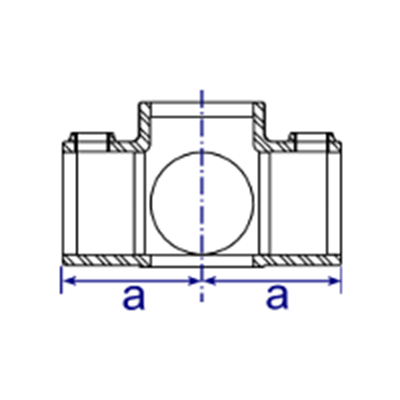

Dimensions Image 2 - 158 - Center Cross
Size a (mm) Weight (kg) Box Qty* Part No
  A27   41   0.45   56   158-A27
  B34   46   0.61   30   158-B34
  C42   60   1.02   20   158-C42
  D48   68   1.27   11   158-D48
  E60   84   2.04   6   158-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
