156 - Slope Cross (0° - 11°)

156 - Slope Cross (0° - 11°)

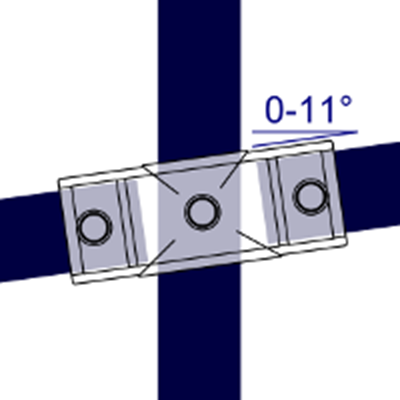

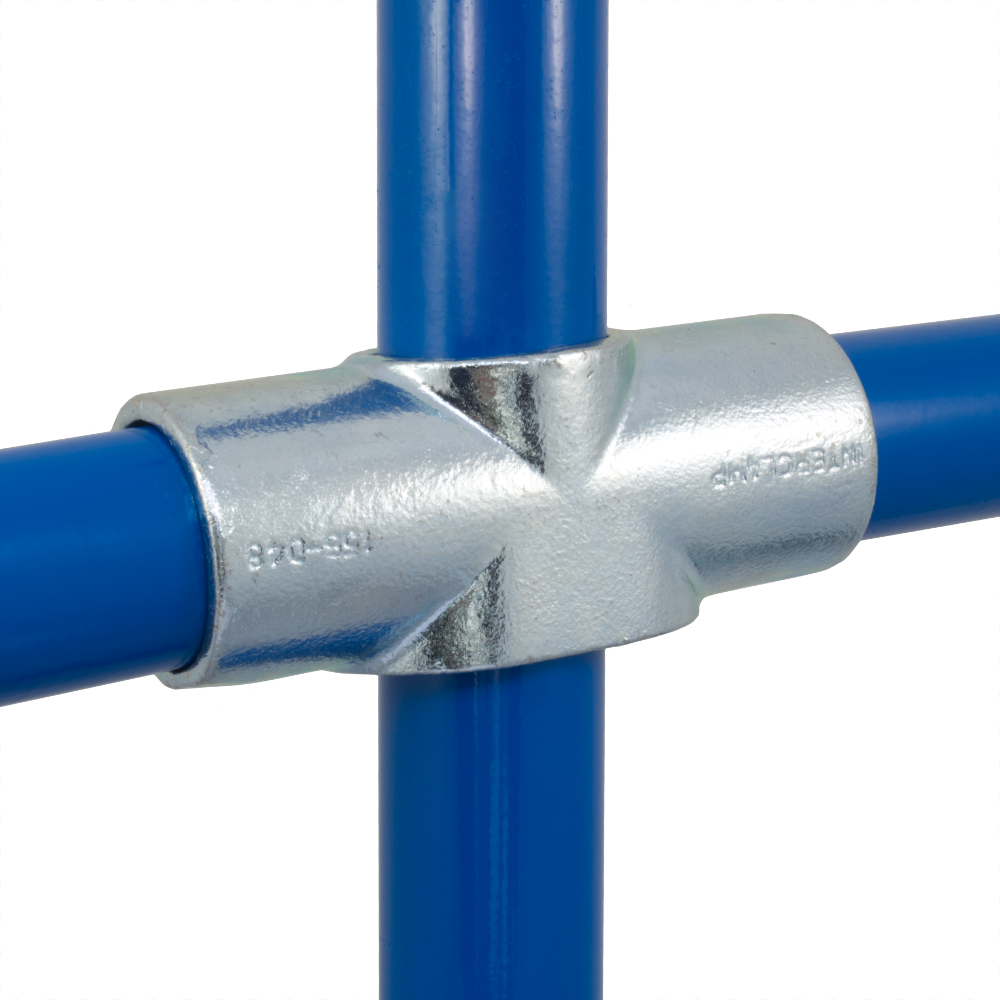

Adjustable for shallow slopes from 0° to 11°, often used between middle rail and uprights on sloping sites and often paired with type 153 or 155. The through tube (vertical in photo) cannot be joined within the fitting. The upright must remain continuous with the cross rails cut.



Range Print < Previous Next >

Product Data & Dimensions

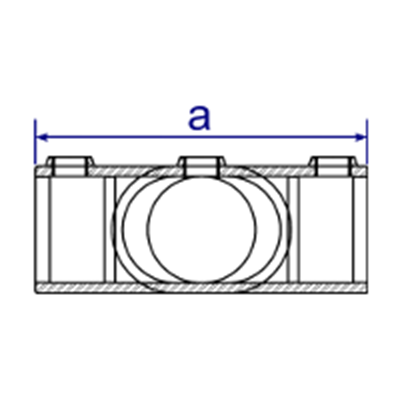

Dimensions Image 1 - 156 - Slope Cross (0° - 11°)

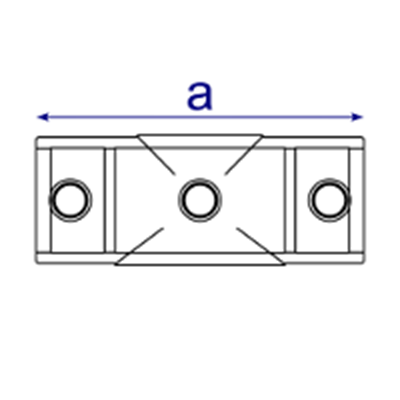

Dimensions Image 2 - 156 - Slope Cross (0° - 11°)
Dimensions Image 3 - 156 - Slope Cross (0° - 11°)
Size a (mm) Weight (Kg) Box Qty* GTIN / EAN No
  B34   112   0.54   50   5060511021333
  C42   140   0.73   35   5060511021340
  D48   158   0.88   24   5060511021357

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
