149 - External Sleeve Joint

149 - External Sleeve Joint

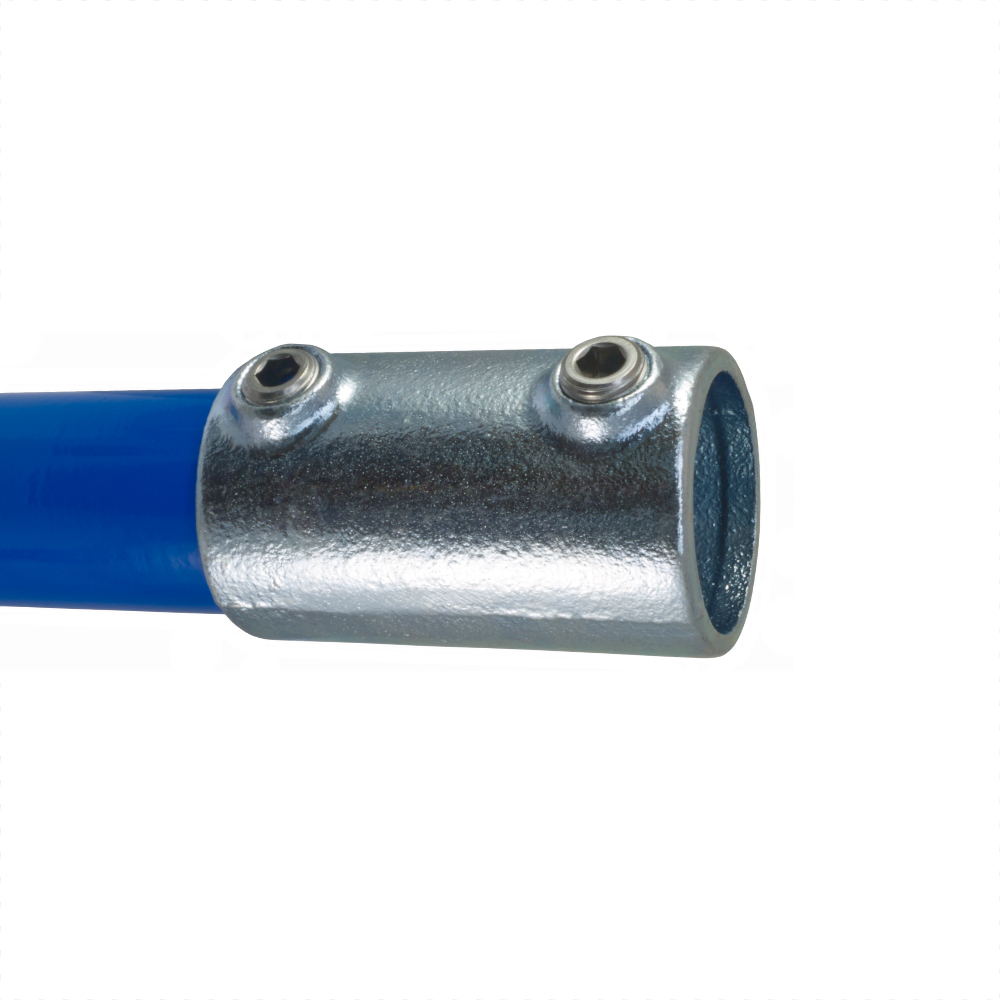

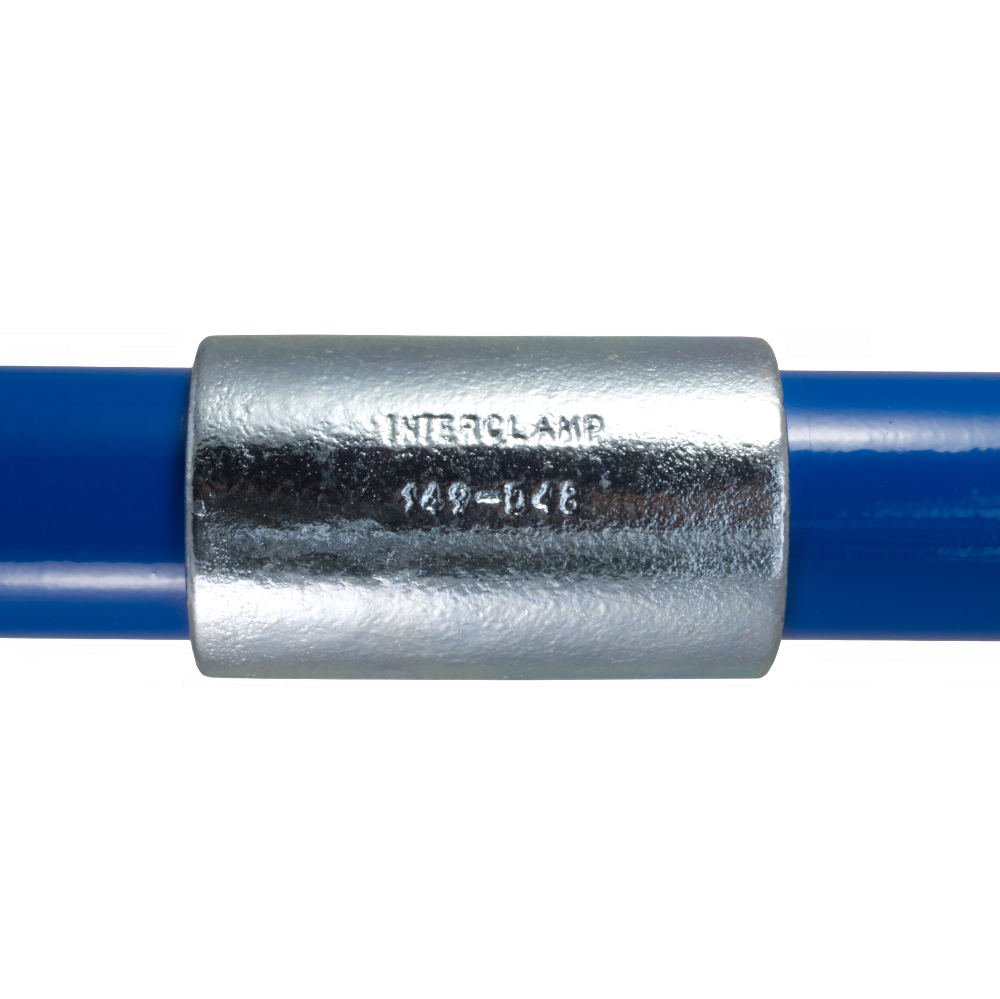

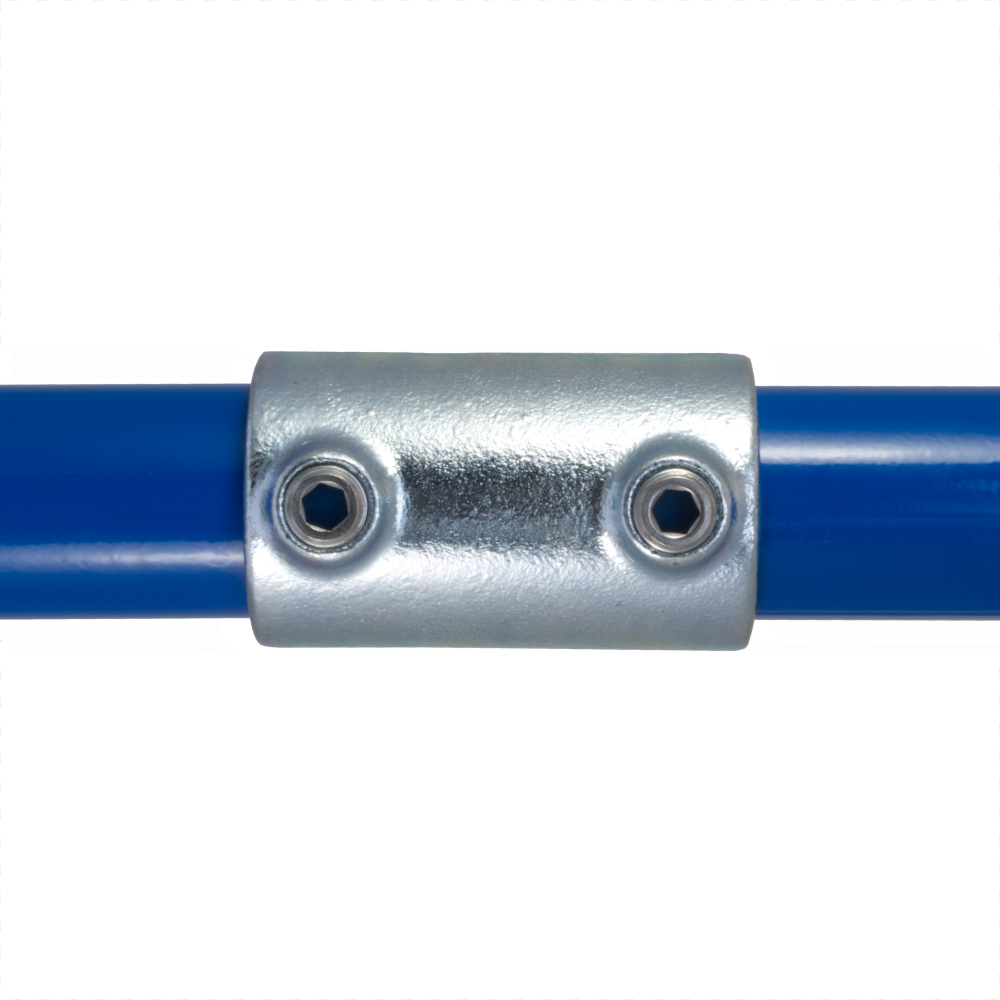

A straight fitting for joining tubes of the same size. Dependent on load requirements, type 150 may sometimes be used as an alternative, particularly where a more flush joint is required.

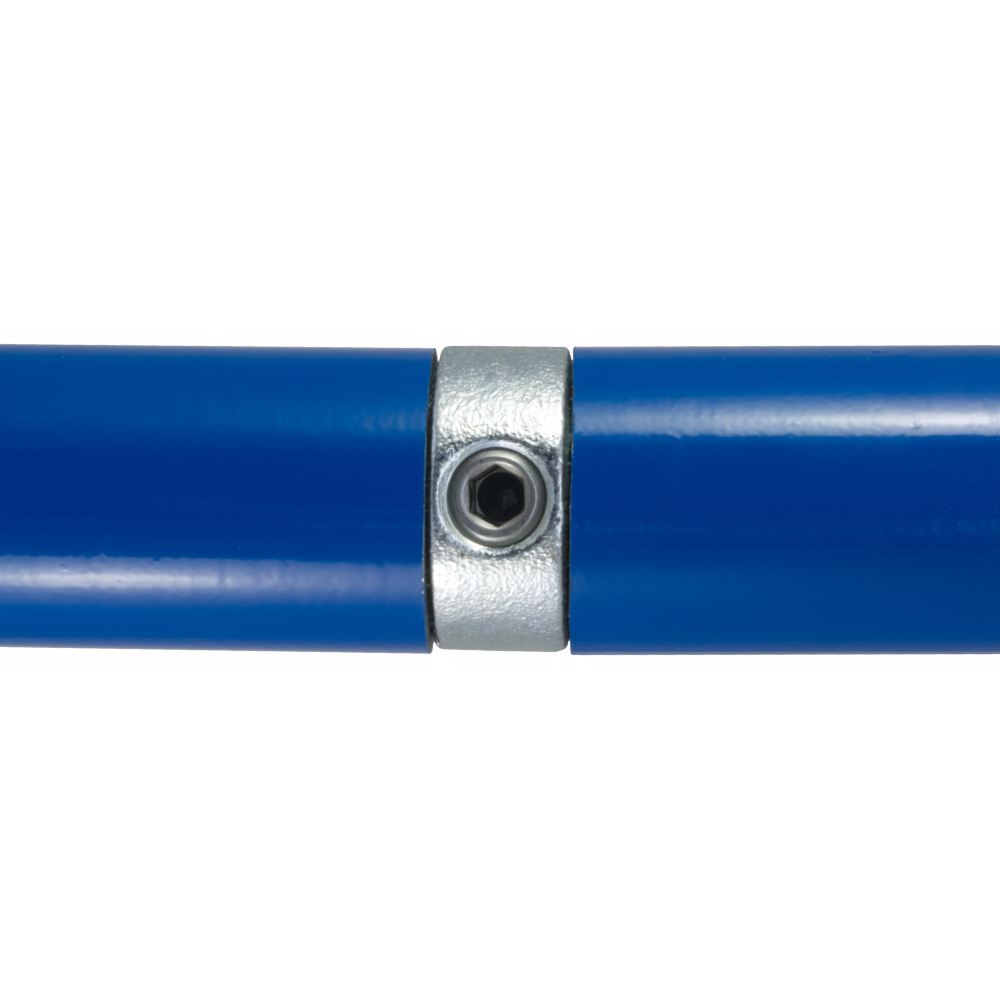

N.B. Type 150 cannot be used for tensile loads.

Range Print < Previous Next >

Product Data & Dimensions

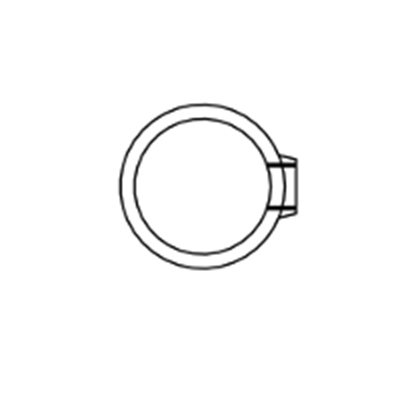

Dimensions Image 1 - 149 - External Sleeve Joint

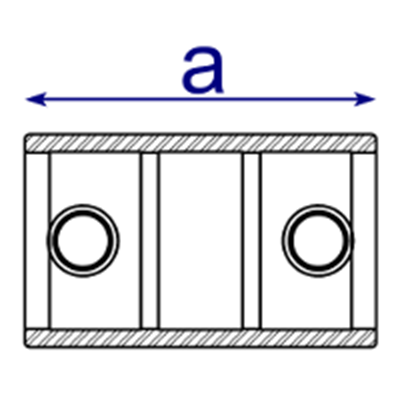

Dimensions Image 2 - 149 - External Sleeve Joint
Size a (mm) Weight (kg) Box Qty* Part No
  A27   76   0.28   120   149-A27
  B34   90   0.41   80   149-B34
  C42   100   0.58   48   149-C42
  D48   100   0.59   42   149-D48
  E60   120   0.95   24   148-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
