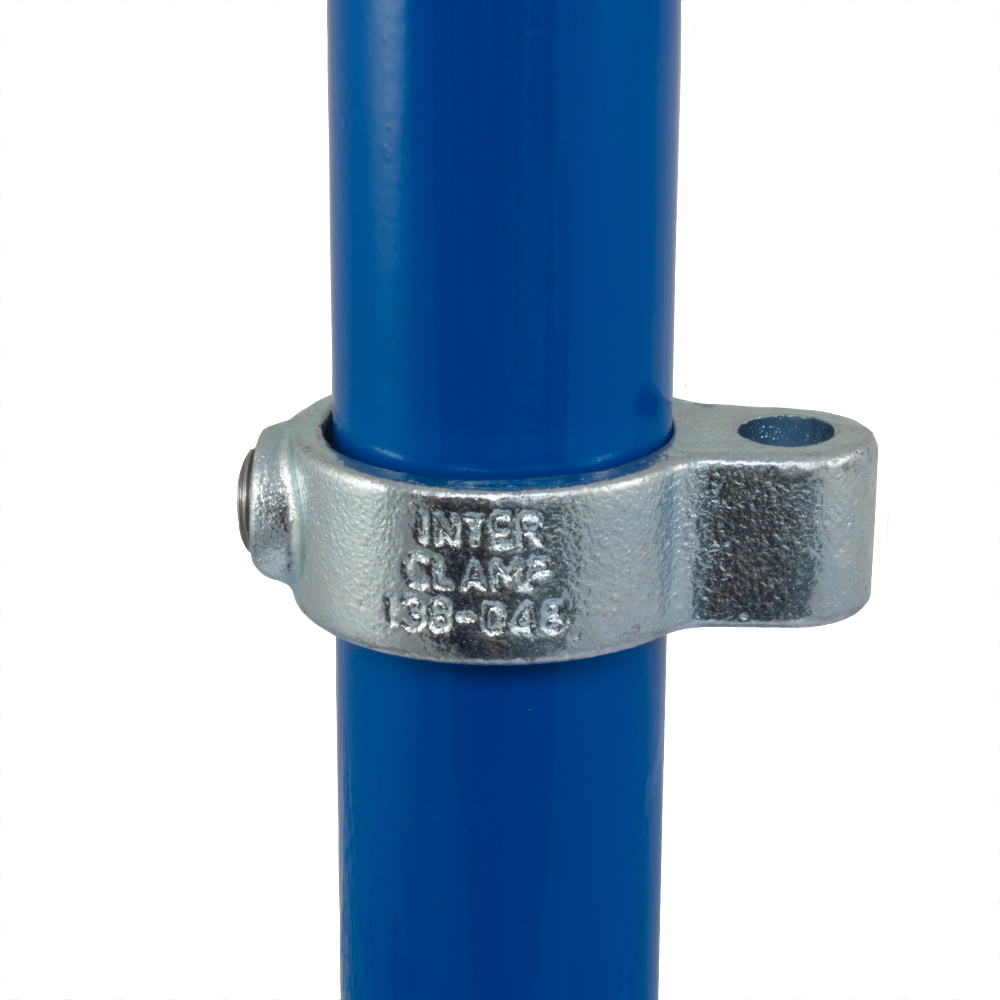

138 - Gate Eye

Often used with type 140 to form gate hinges. The tube cannot be joined within the fitting.

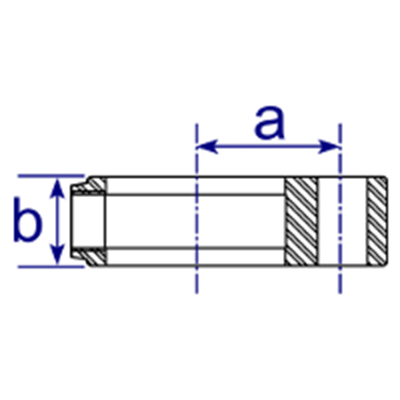

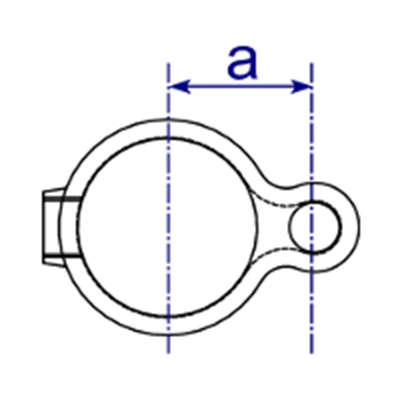

Product Data & Dimensions

Size a (mm) b (mm) Hole Dia (mm) Weight (kg) Box Qty* Part No
  A27   30   25.5   14   0.17   200   138-A27
  B34   33   25.5   14   0.20   172   138-B34
  C42   38   25   14   0.22   152   138-C42
  D48   41   25   14   0.24   150   138-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

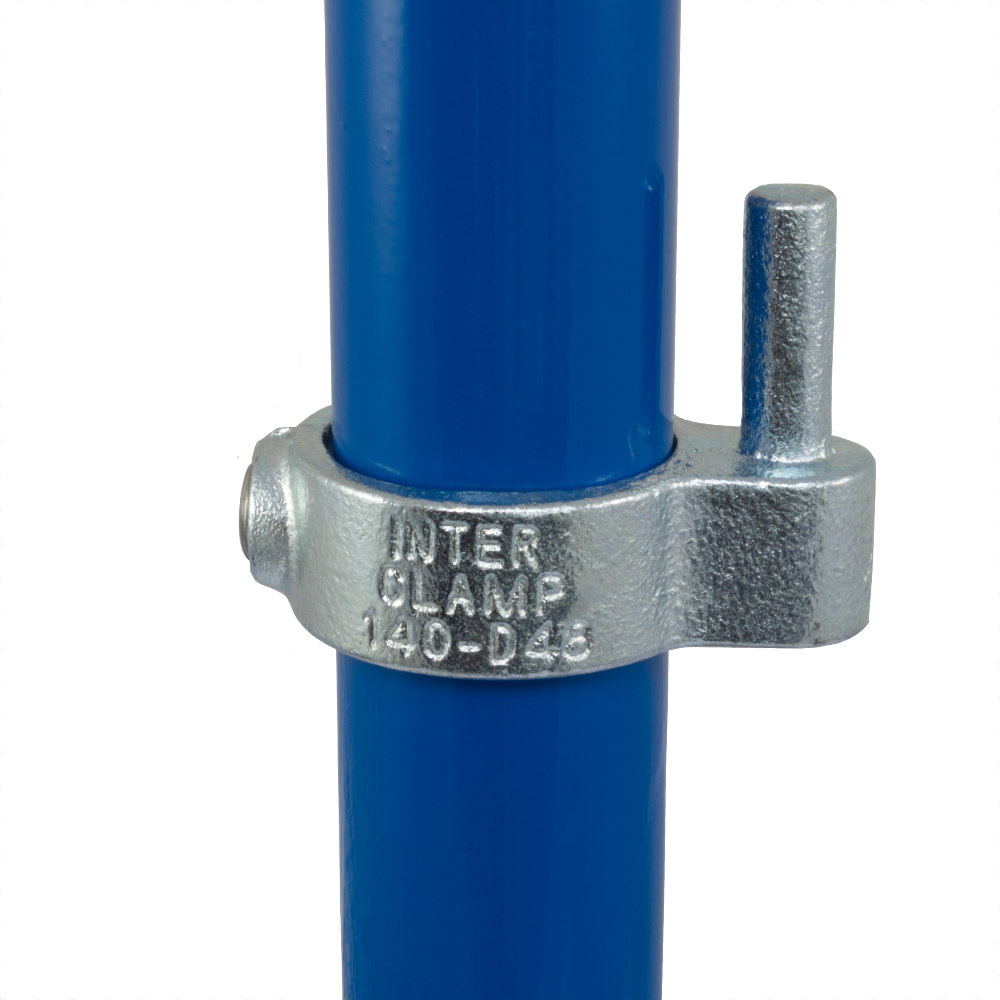

Related Products
