135 - Clamp-on Tee

135 - Clamp-on Tee

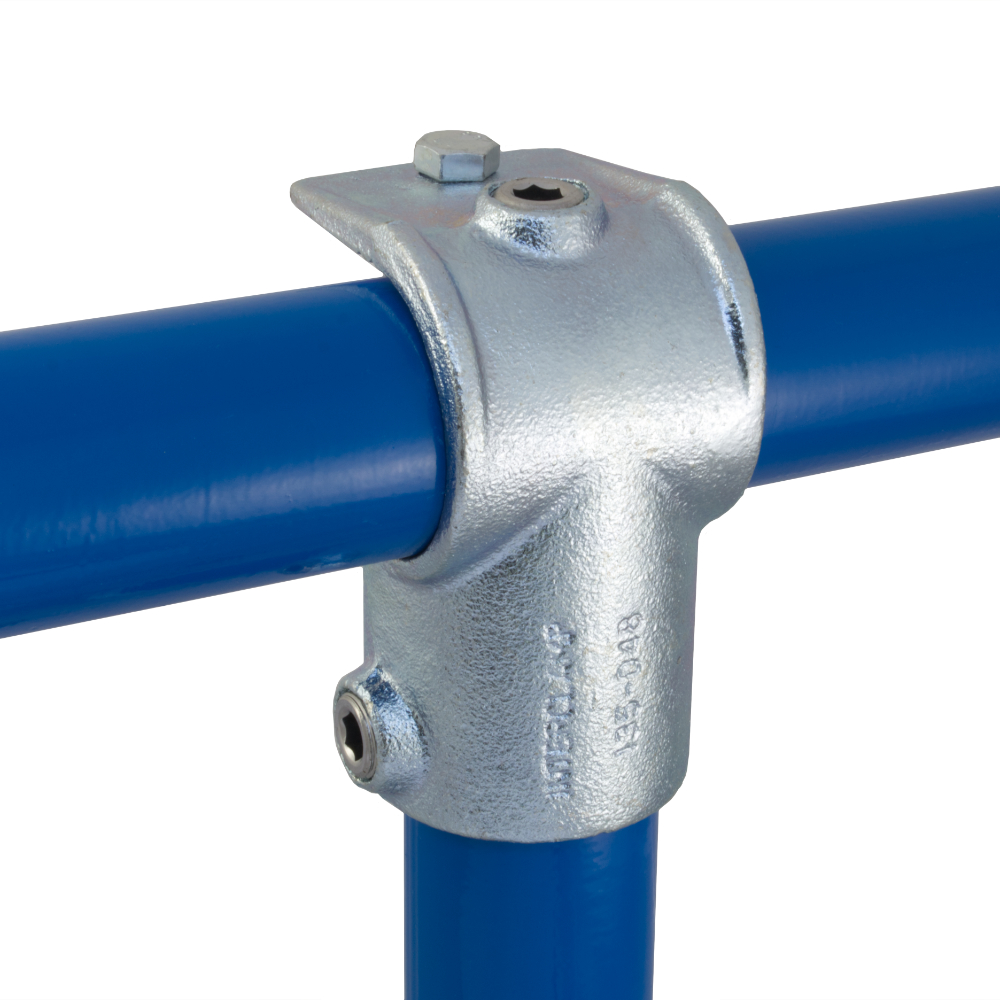

90° bolt-on joint, often used to make additions or alterations to existing structures where a type 101 or similar cannot be fitted. Type 136 is a similar clamp-on fitting offering a more flush finish. The through tube (horizontal in photo) cannot be joined within the fitting.

Range Print < Previous Next >

Product Data & Dimensions

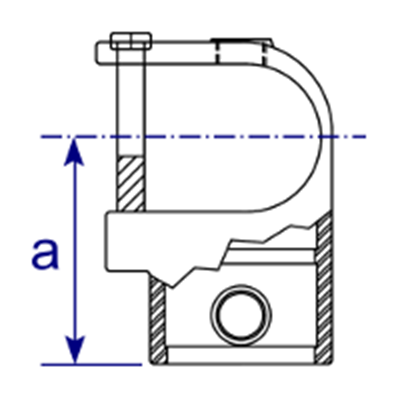

Dimensions Image 1 - 135 - Clamp-on Tee

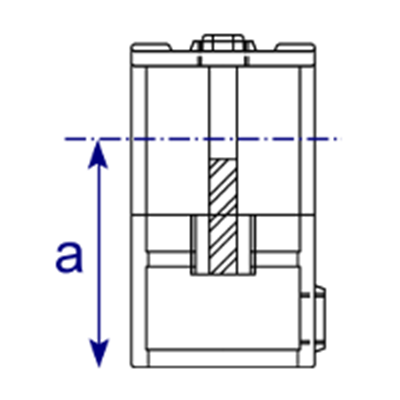

Dimensions Image 2 - 135 - Clamp-on Tee
Size a (mm) Weight (kg) Box Qty* Part No
  A27   51   0.30   108   135-A27
  B34   52.5   0.36   66   135-B34
  C42   67   0.53   37   135-C42
  D48   76.5   0.60   32   135-D48
  E60   91   0.98   15   135-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

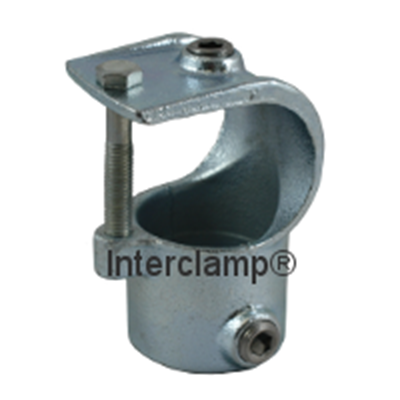

Product Images 1 - 135 - Clamp-on Tee

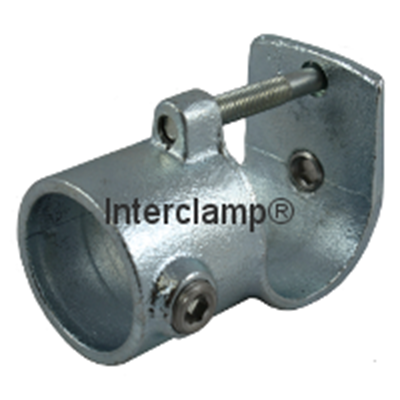

Product Images 2 - 135 - Clamp-on Tee
