134 - Ground Socket

134 - Ground Socket

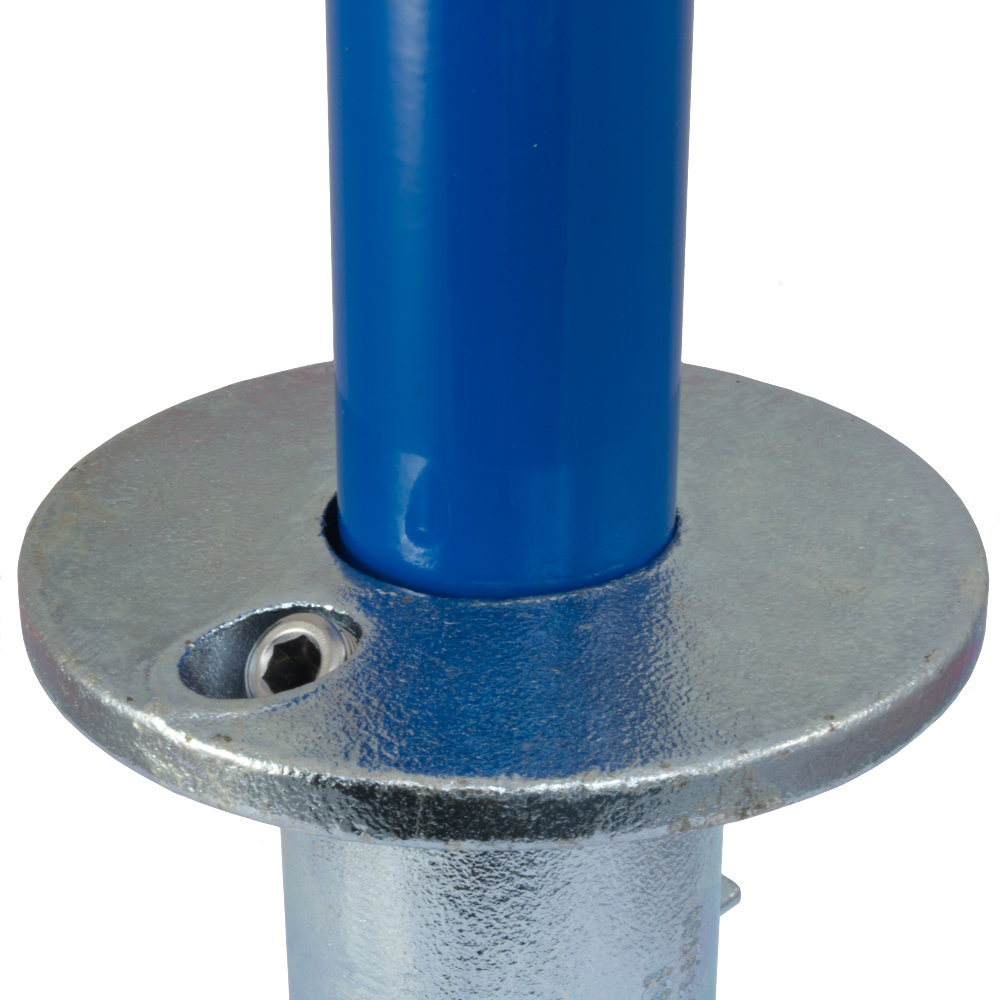

A setscrew allows the upright to be removed when required, the fitting remaining cast in place.

Range Print < Previous Next >

Product Data & Dimensions

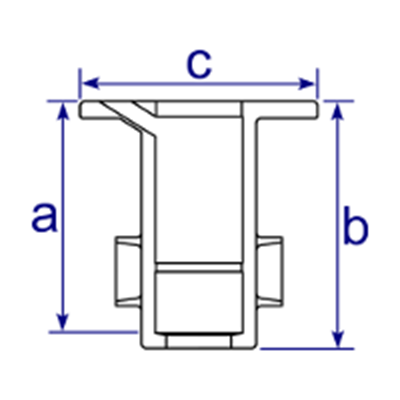

Dimensions Image 1 - 134 - Ground Socket
Size a (mm) b (mm) c (mm) Weight (Kg) Box Qty* GTIN / EAN No
  B34   113   122   127   1.92   18   5060511020725
  C42   125.5   135   139   2.60   12   5060511020732
  D48   124.5   135   139   2.50   12   5060511020749

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

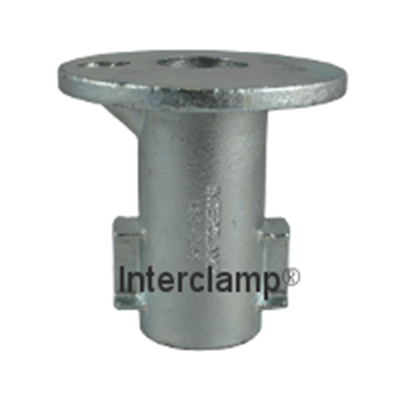

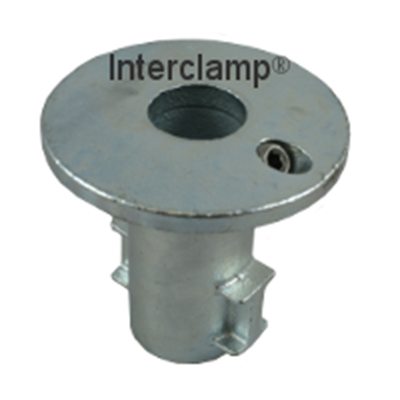

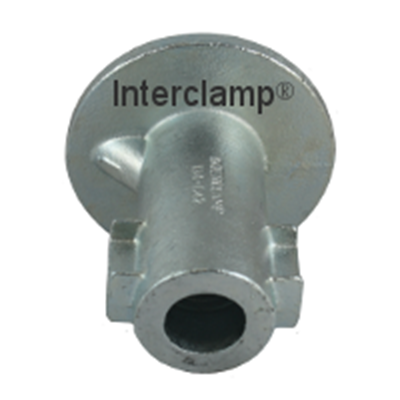

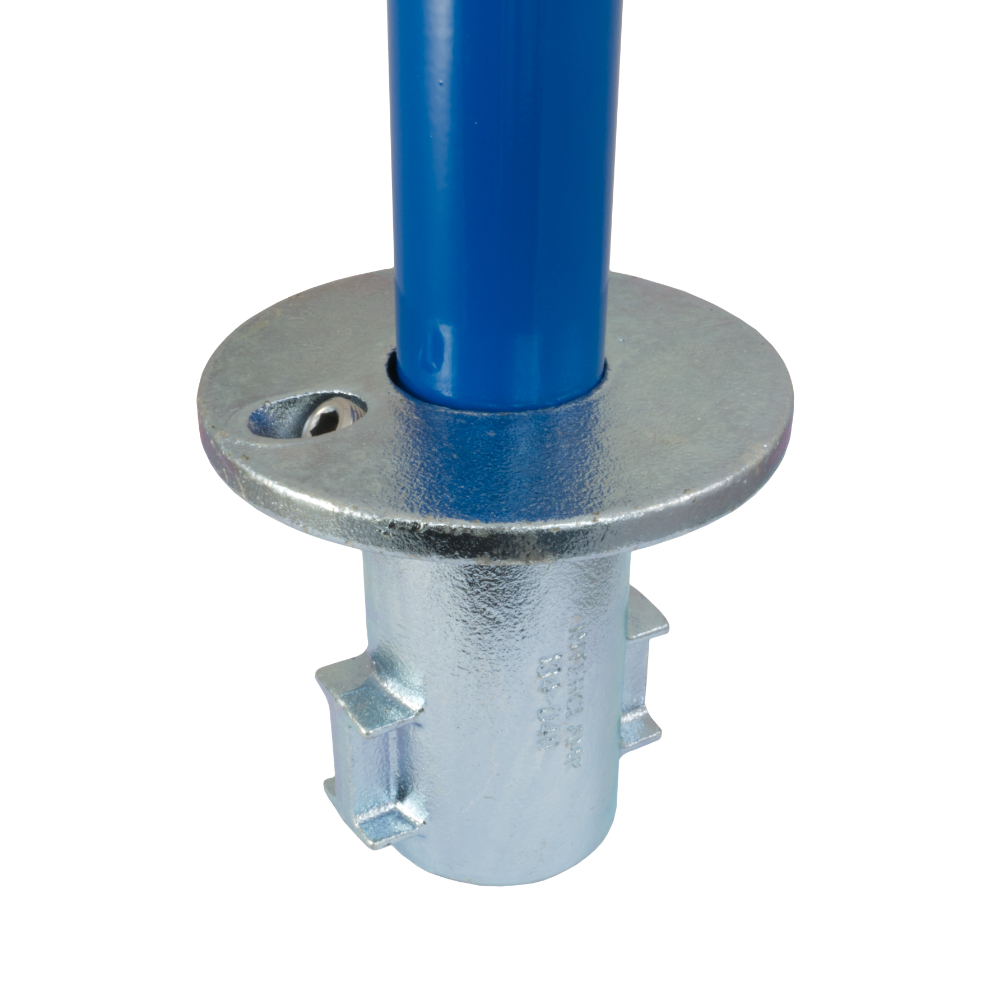

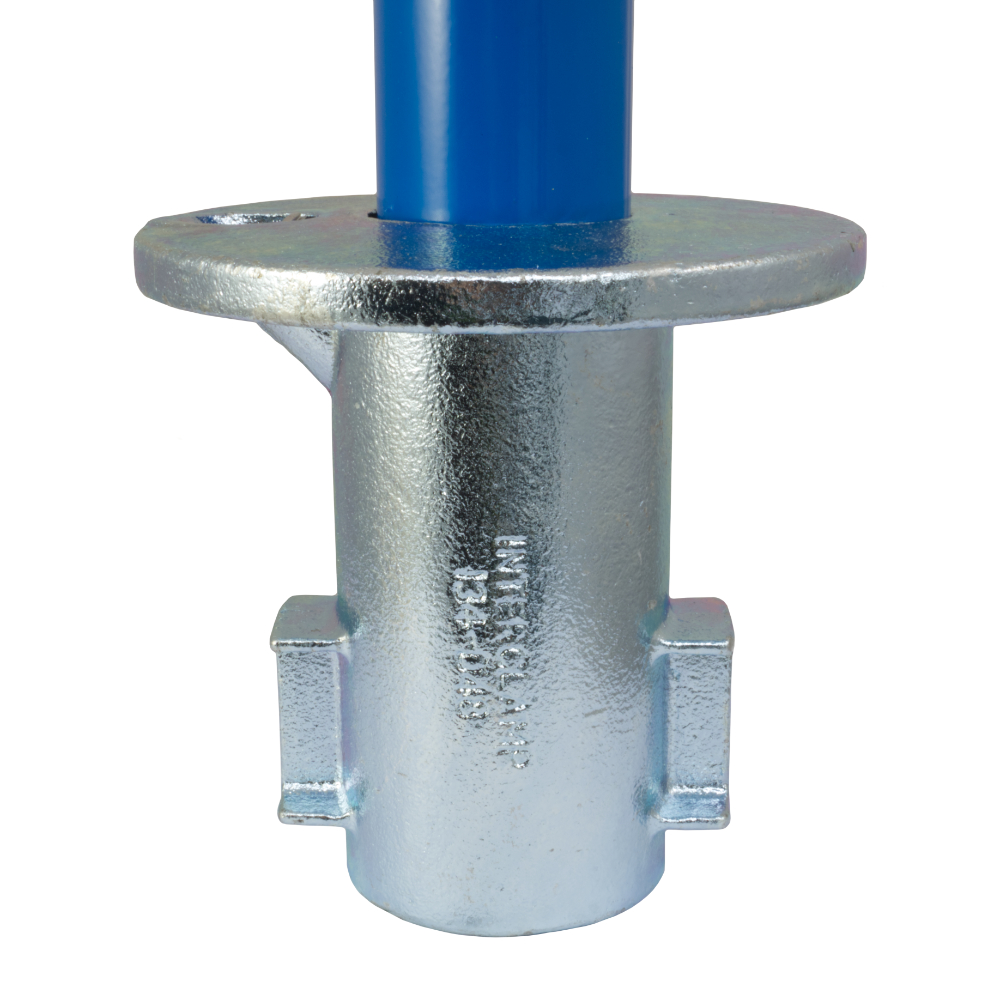

Product Images 1 - 134 - Ground Socket
