The 117 fittings are a retro-fit type fitting designed to be added on to existing structures without the need to disassemble.

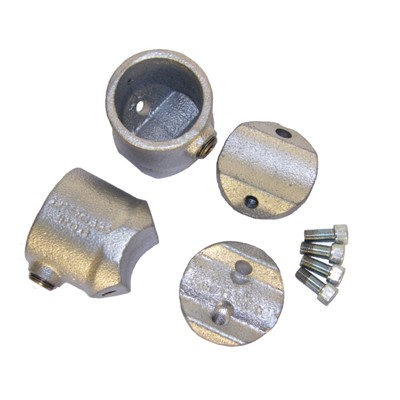

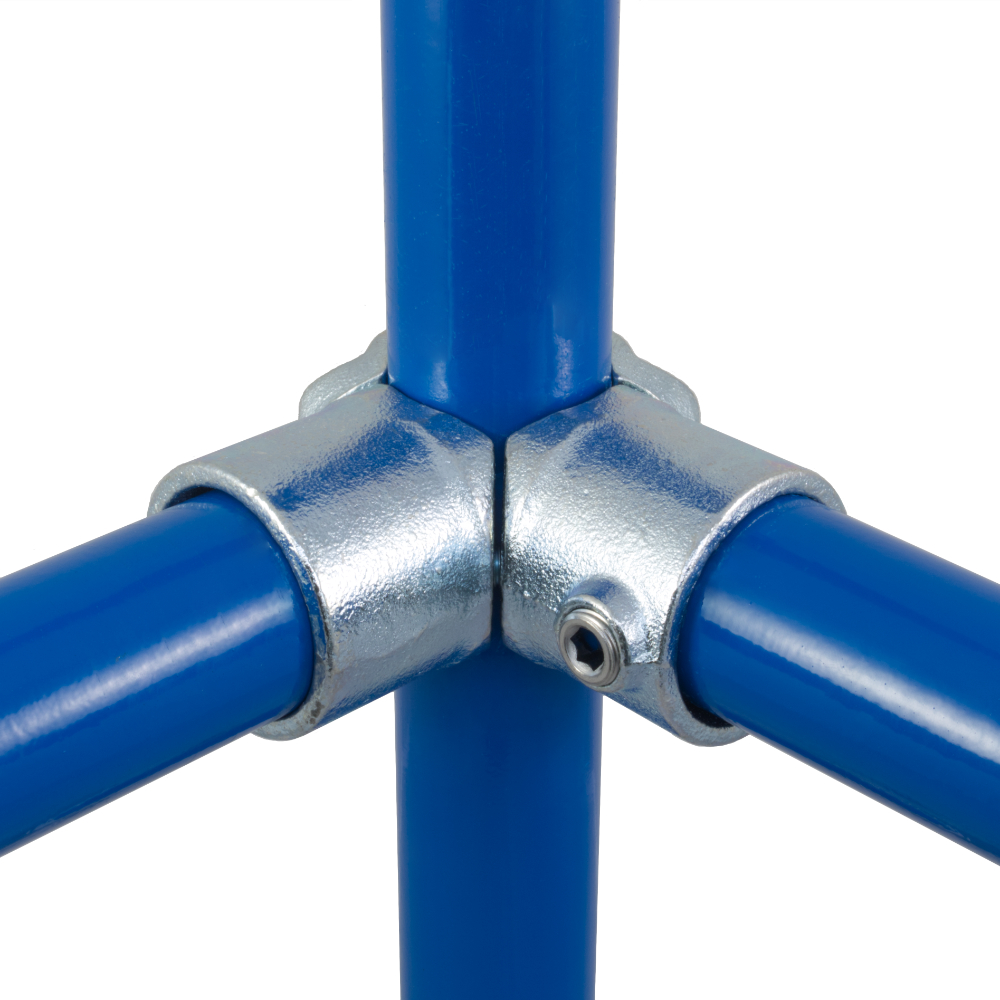

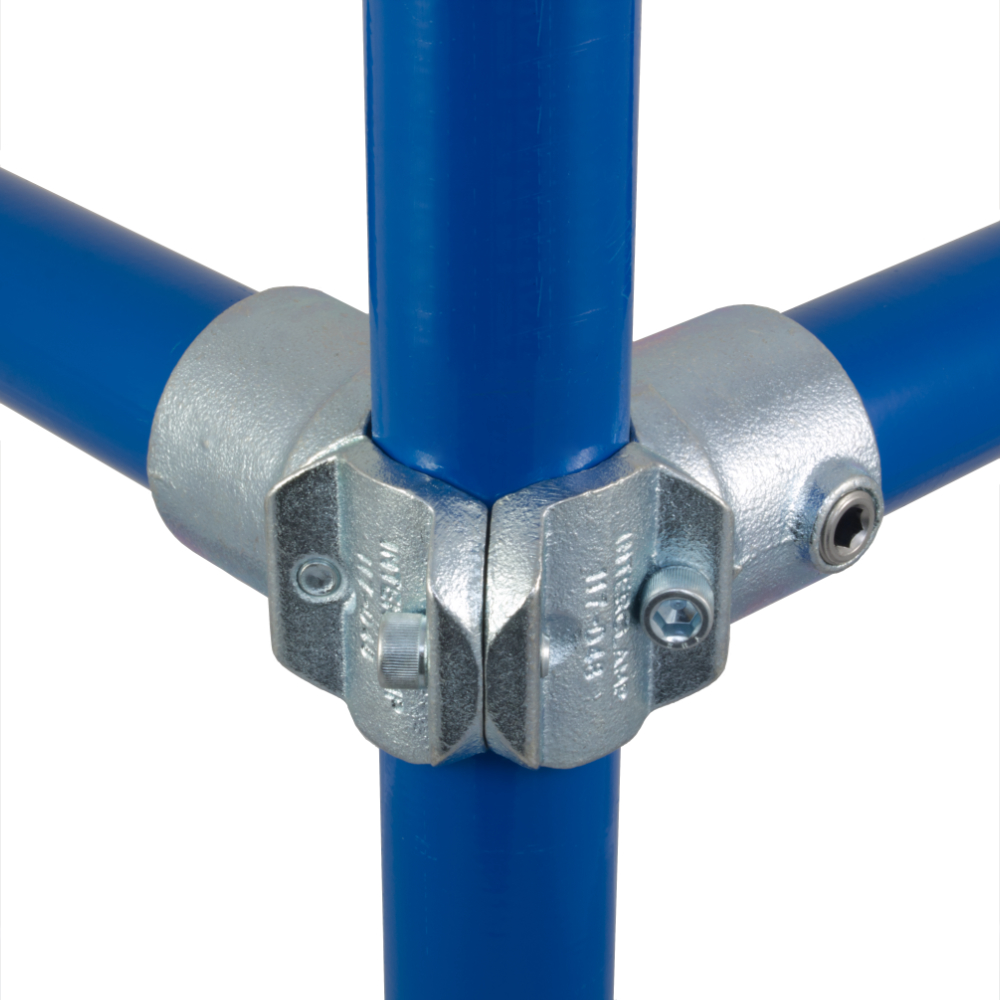

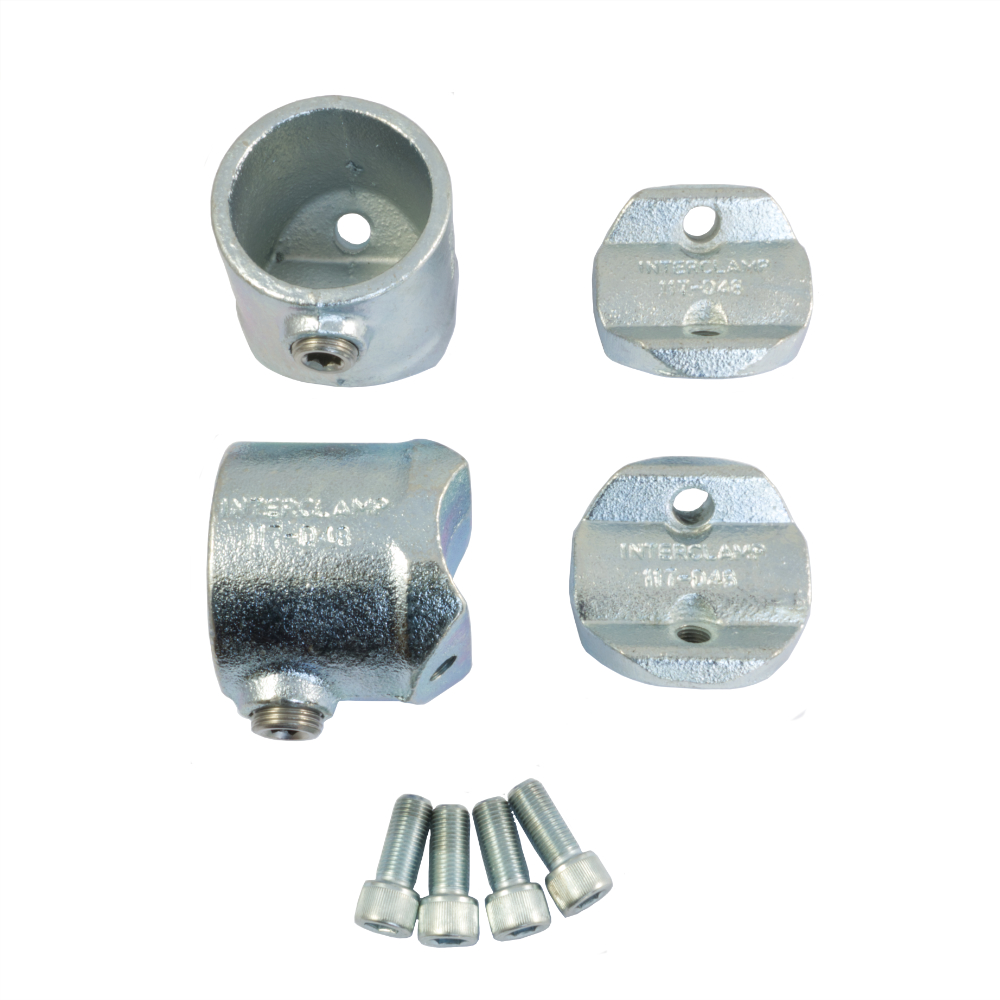

The 117X fittings comes complete with 2 socket pieces and 2 plate pieces which enable each kit to be used to make one of the two possible assemblies illustrated below.
Each kit comes complete with bolts and set screws.

This fitting is only compatible with the D48 size range.

Range Print < Previous Next >

Product Data & Dimensions

Size Weight (Kg) Box Qty* EAN No
  D48   1.37   24   5060511020220

Product Images

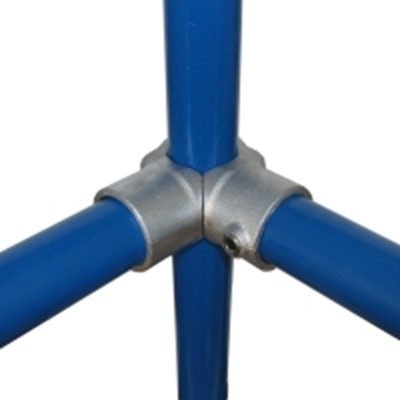

Product Images 1 - 117X

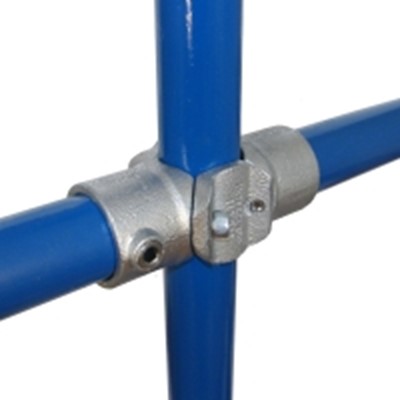

Product Images 2 - 117X
Product Images 3 - 117X
