253 - Slope Short Tee (11°-29°)

253 - Slope Short Tee (11°-29°)

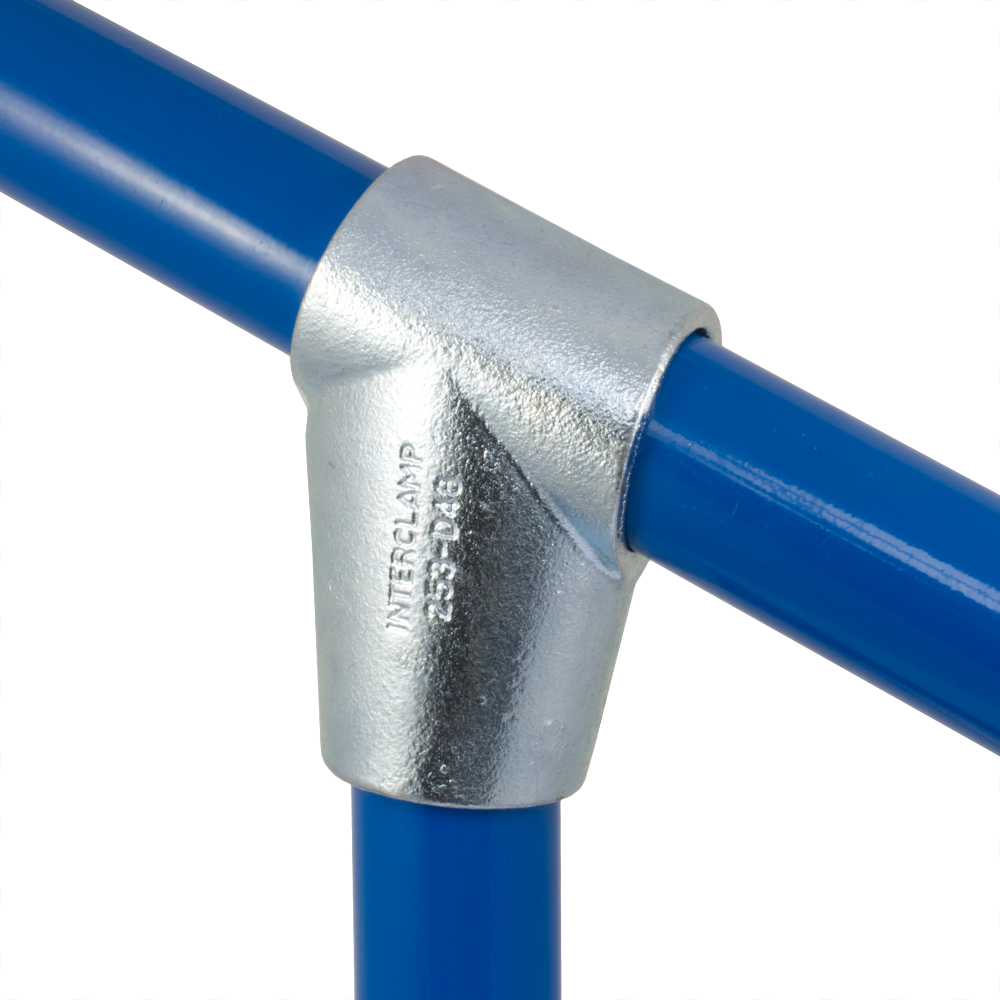

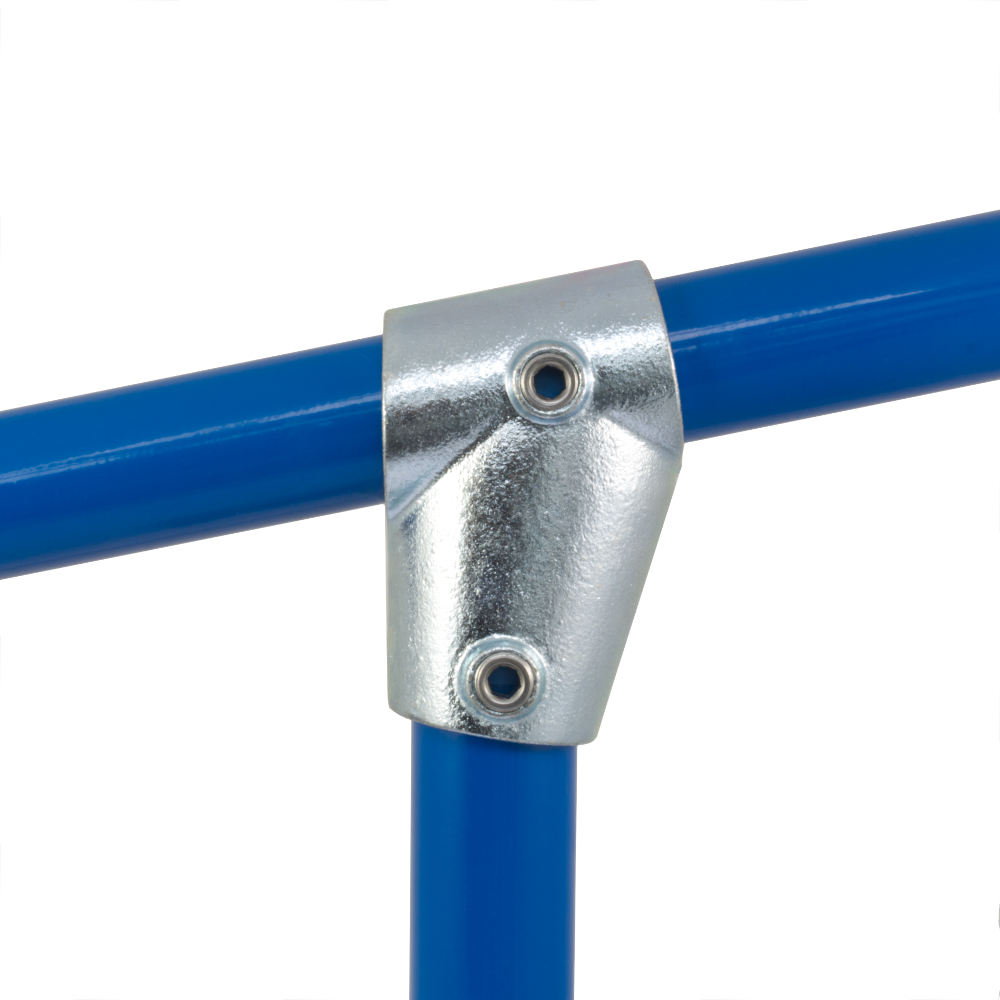

Butt joint for sloping sites, adjustable from 11° to 29°, often used to join intermediate uprights to top rails and middle rails to end uprights. This Interclamp cannot be used where through tube (sloping in photo) has to be joined within the fitting. Type 255 may often be used as an alternative.

Please also see our Interclamp Assist range of flush fittings to help compliance with the Disability Discrimination Act (DDA) and the Building Regulations Part M:2004.

Range Print < Previous Next >

Product Data & Dimensions

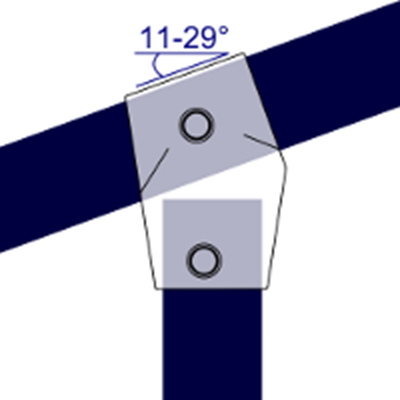

Dimensions Image 1 - 253 - Slope Short Tee (11°-29°)

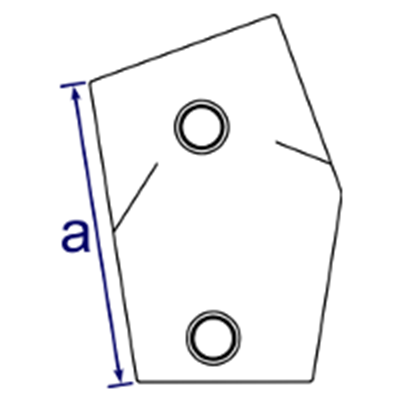

Dimensions Image 2 - 253 - Slope Short Tee (11°-29°)
Size a (mm) Weight (kg) Box Qty* Part No
  D48   115   0.84   26   253-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
