252 - Slope Base Flange (11°-29°)

252 - Slope Base Flange (11°-29°)

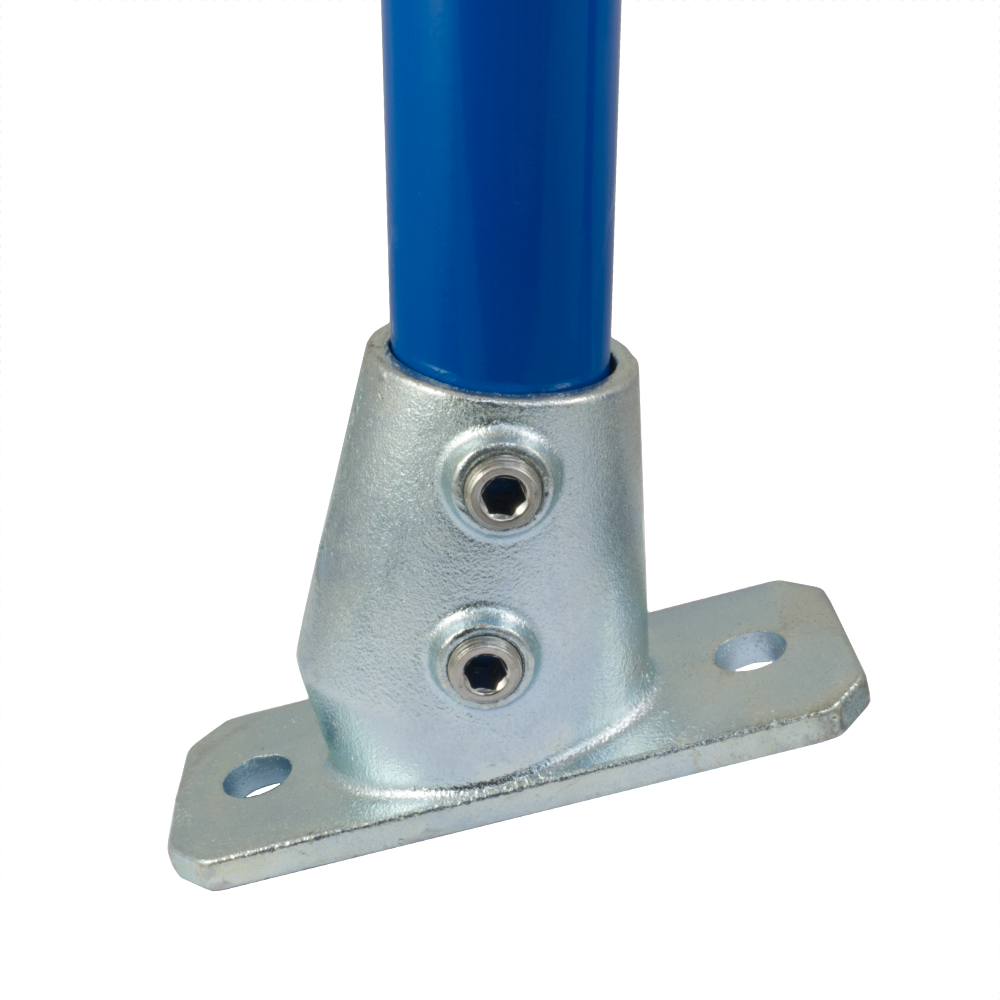

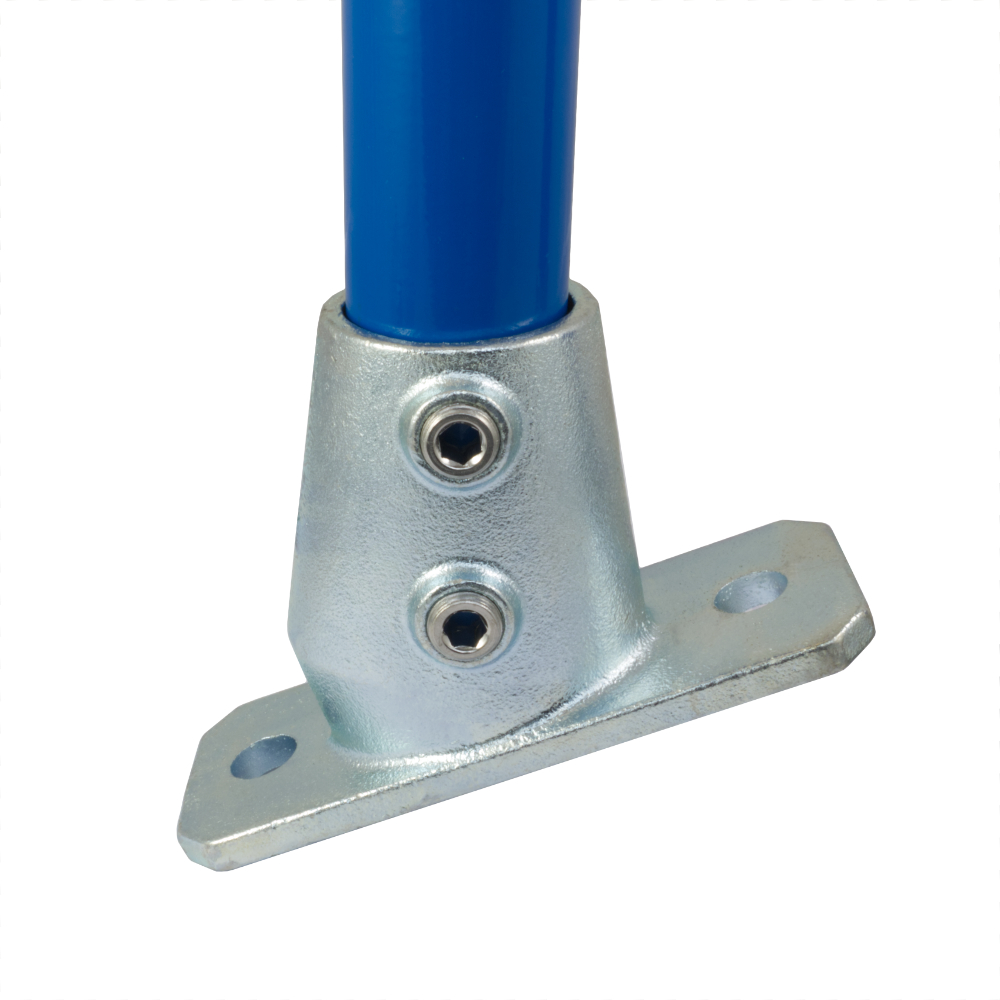

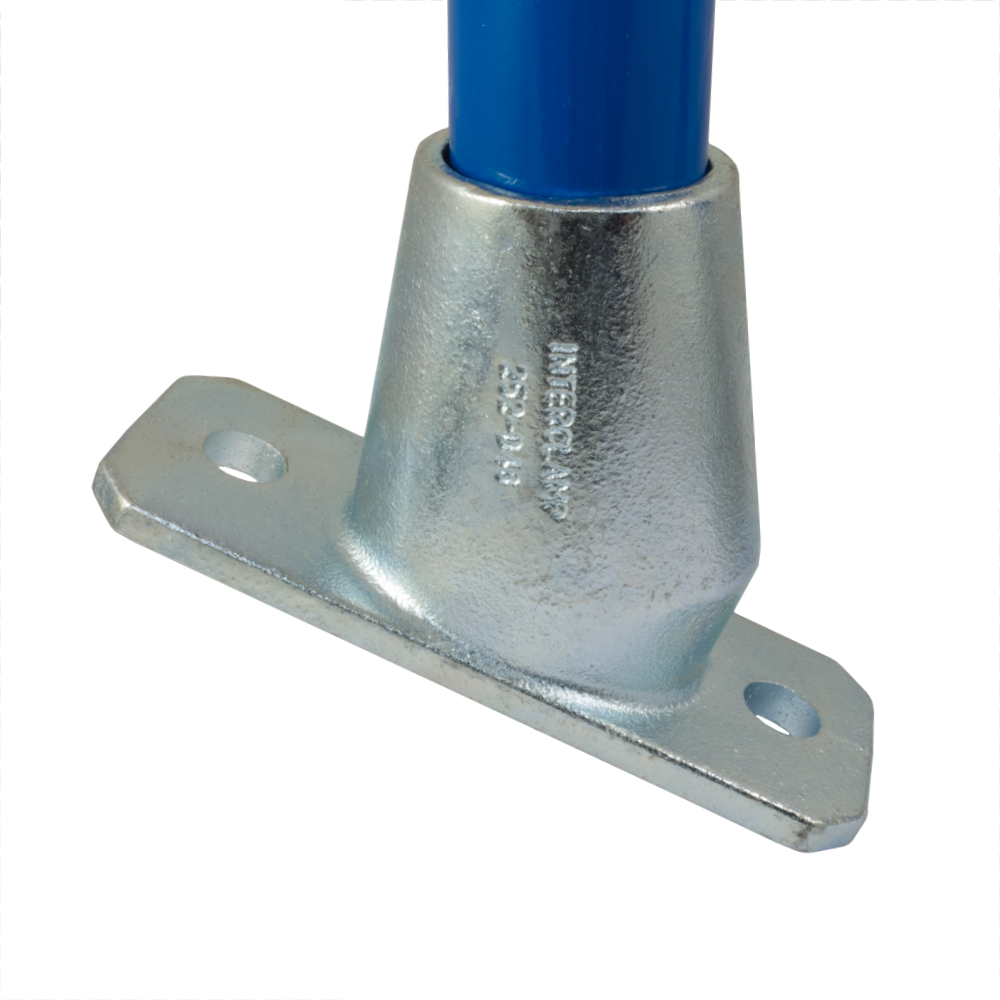

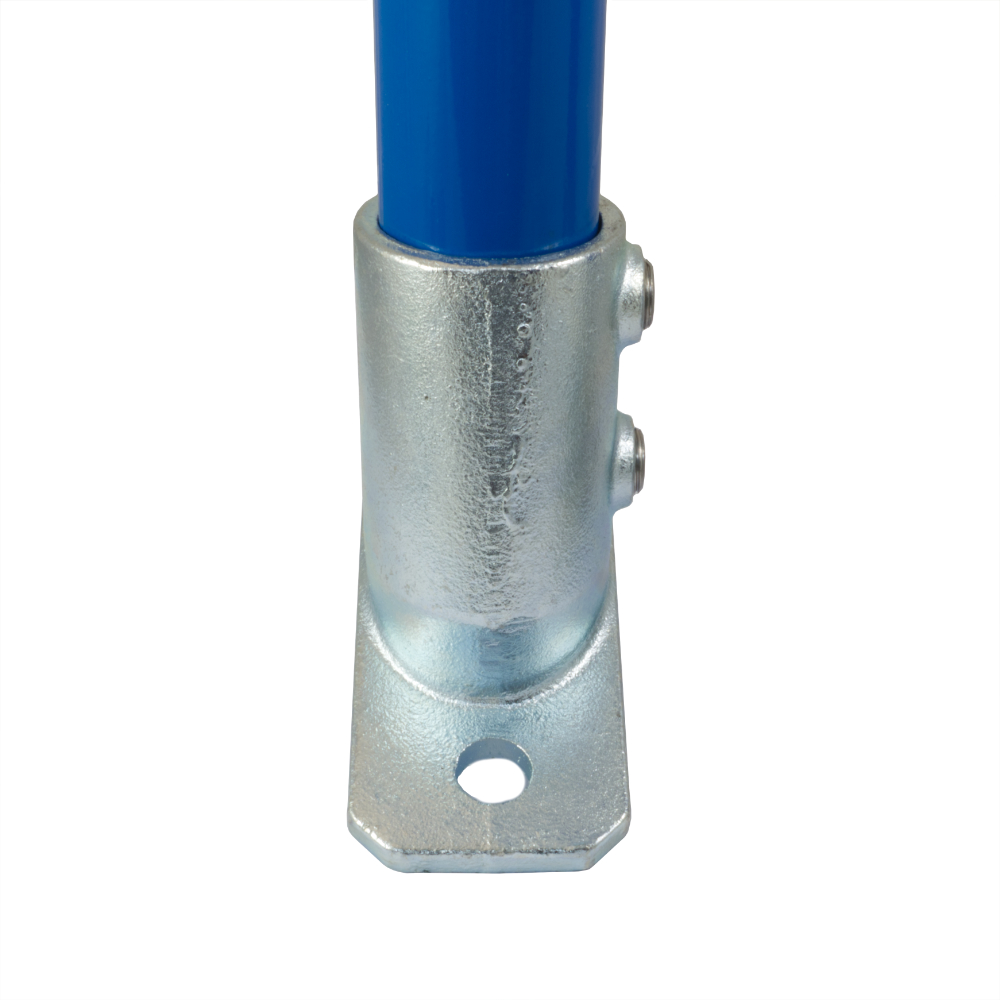

Base flange for sloping sites, adjustable from 11° to 29°. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design. Where a greater load is required, type 132 is normally used, with the upright tube bent to the required angle.

Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. The dimensions of the base are designed to be compatible with many traditional welded ball standard bases to allows easy interchangeability.

Range Print < Previous Next >

Product Data & Dimensions

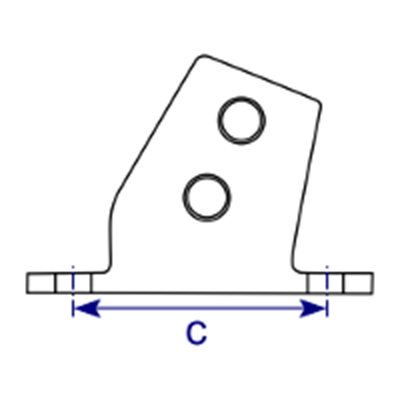

Dimensions Image 1 - 252 - Slope Base Flange (11°-29°)

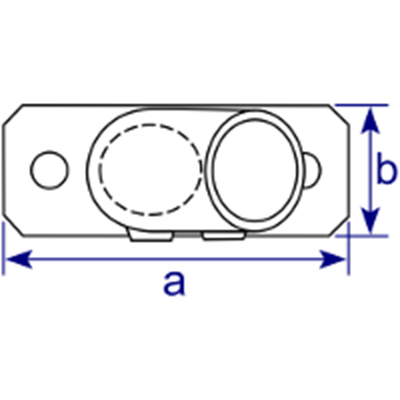

Dimensions Image 2 - 252 - Slope Base Flange (11°-29°)

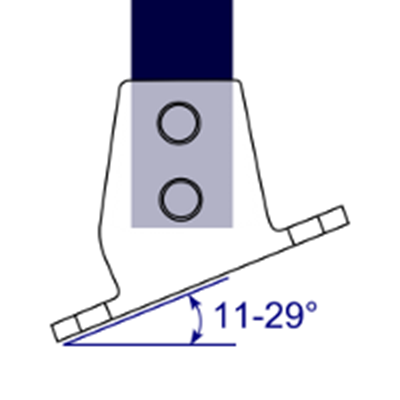

Dimensions Image 3 - 252 - Slope Base Flange (11°-29°)
Size a (mm) b (mm) c (mm) Weight (Kg) Box Qty* GTIN / EAN No
  D48   172   65   126   1.22   20   5060511022583


* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.


Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
