165 - Combined Tee & Crossover

165 - Combined Tee & Crossover

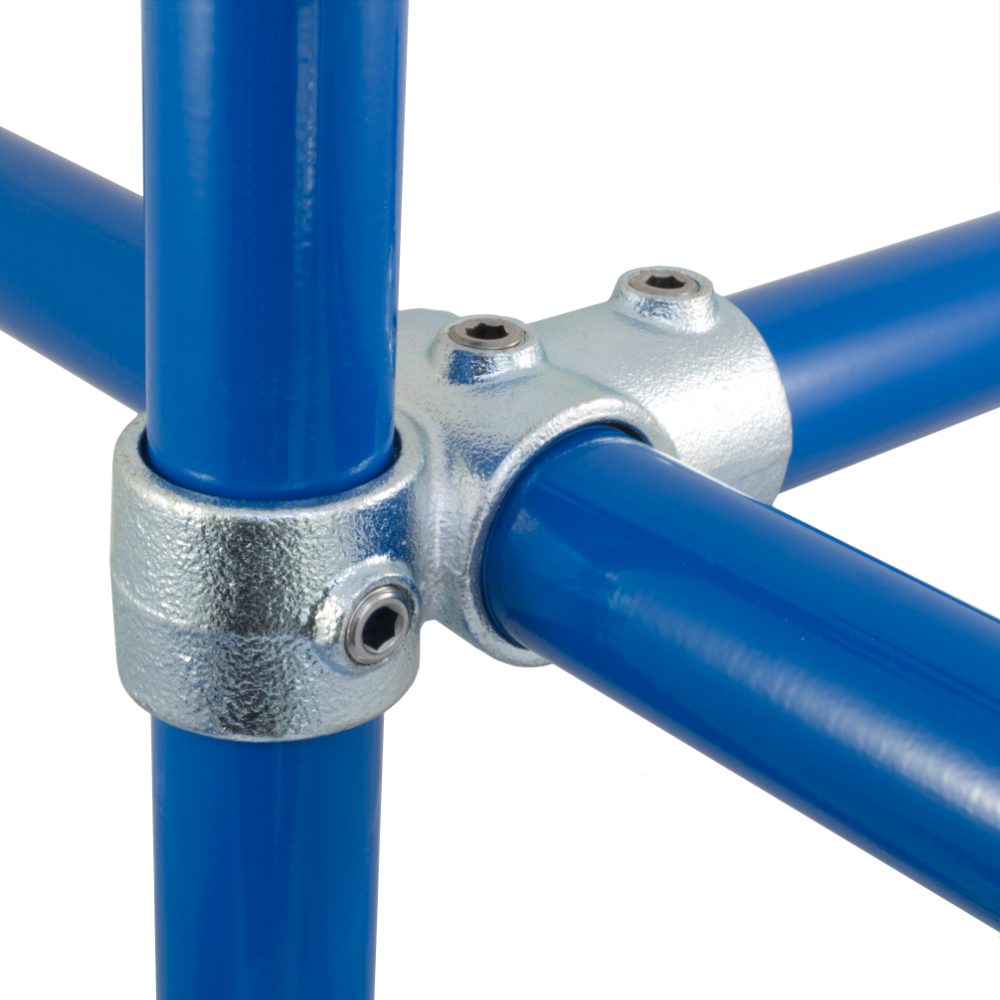

Often used in racking and similar structures, the fitting allows both uprights and front and rear horizontal rails to be continuous. It is usually preferable for the upright to be on the outside of the structure (as per the photo) for maximum stability. The through tubes cannot be joined within the fitting.

Range Print < Previous Next >

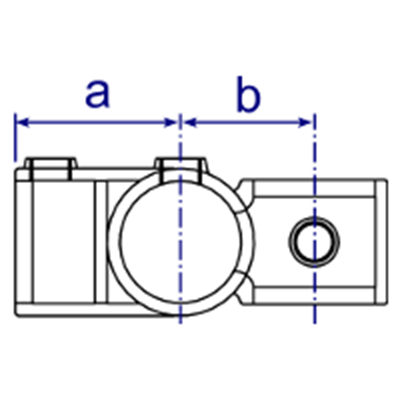

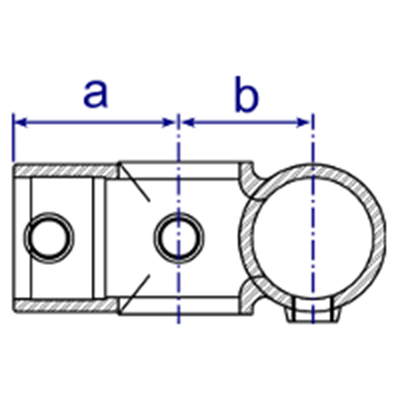

Product Data & Dimensions

Size a (mm) b (mm) Weight (Kg) Box Qty* EAN No
  B34   46   40   0.48   54   5060511021562
  C42   60   49   0.69   35   5060511021579
  D48   68   55   0.86   30   5060511021586
  E60   84   68   1.33   15   5060511021593




Product Images

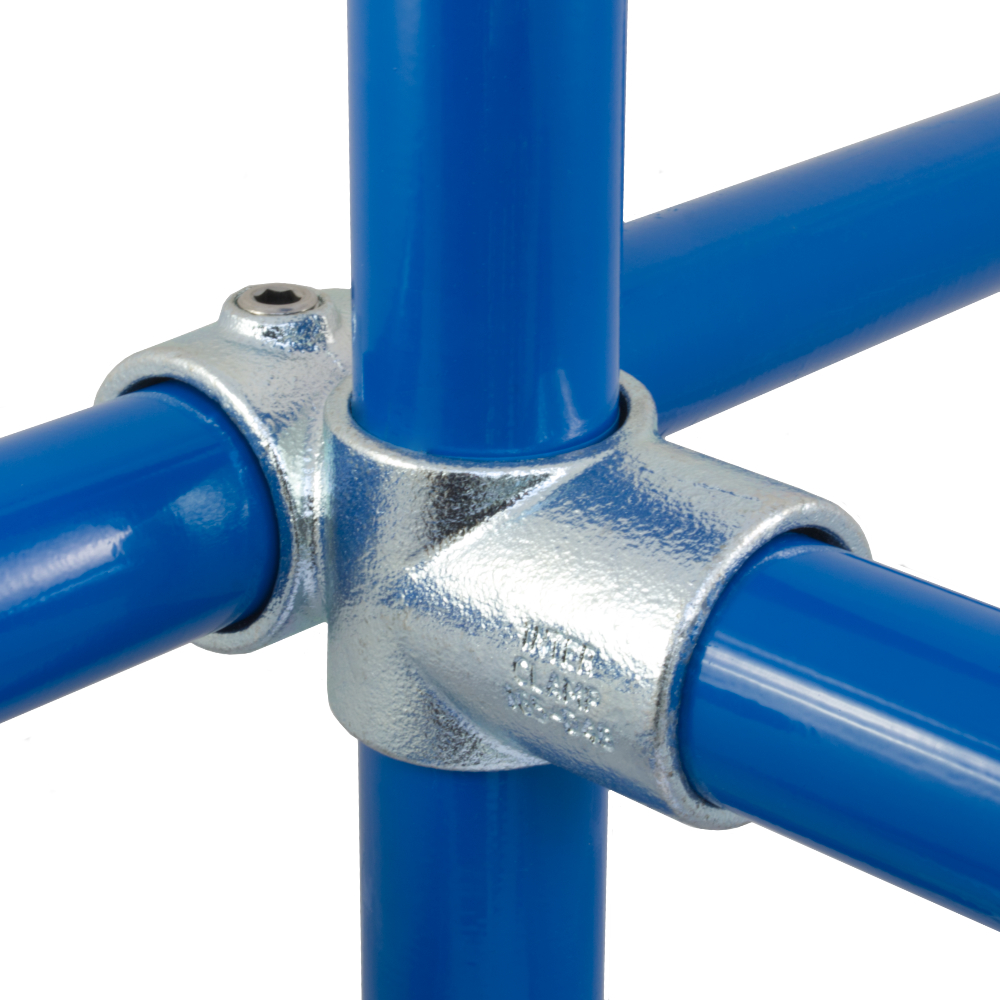

Product Images 1 - 165 - Combined Tee & Crossover
Product Images 2 - 165 - Combined Tee & Crossover


* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.


Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
