124 - Variable Elbow (15° - 60°)

124 - Variable Elbow (15° - 60°)

Variable 40° to 70° angle joint, often used to join staircase top rail to upright at top end of staircase.

Range Print < Previous Next >

Product Data & Dimensions

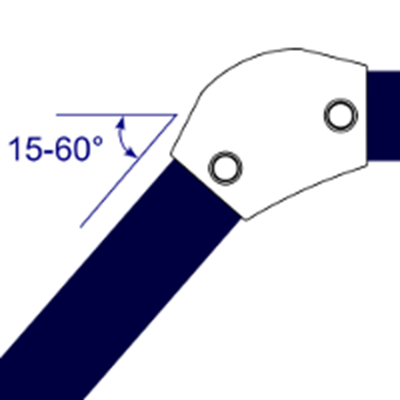

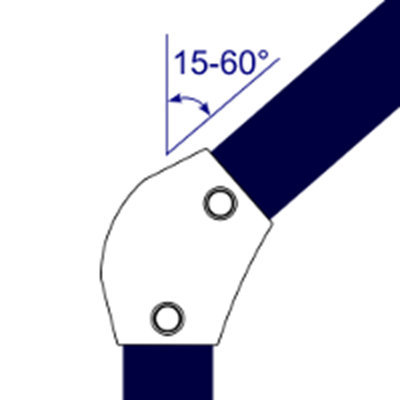

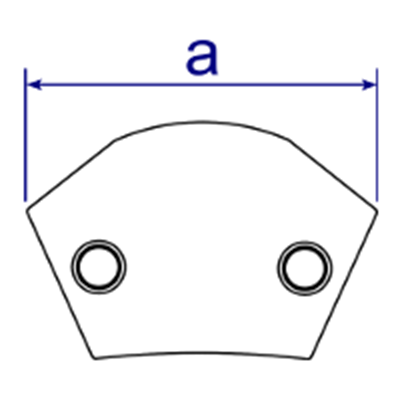

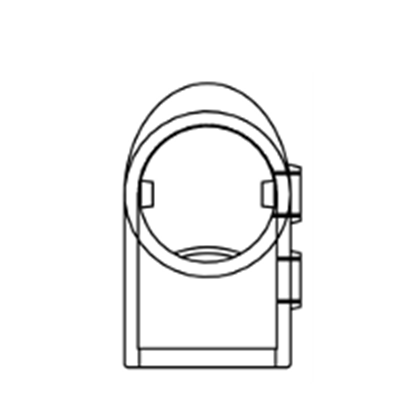

Dimensions Image 1 - 124 - Variable Elbow (15° - 60°)
Dimensions Image 2 - 124 - Variable Elbow (15° - 60°)
Dimensions Image 3 - 124 - Variable Elbow (15° - 60°)
Dimensions Image 4 - 124 - Variable Elbow (15° - 60°)
Size a (mm) Weight (Kg) Box Qty* GTIN / EAN No
  B34   91   0.40   60   5060511020336
  C42   110   0.64   39   5060511020343
  D48   122   0.67   30   5060511020350


Product Images

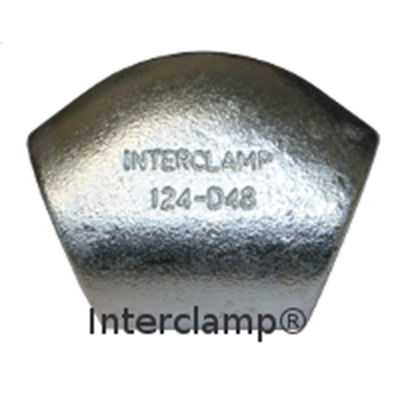

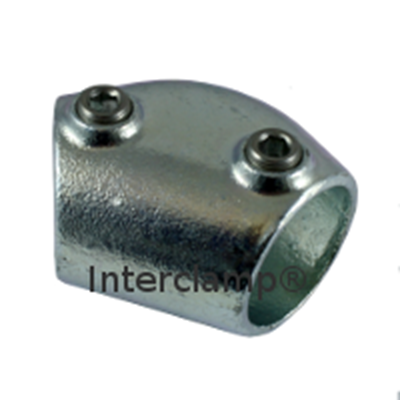

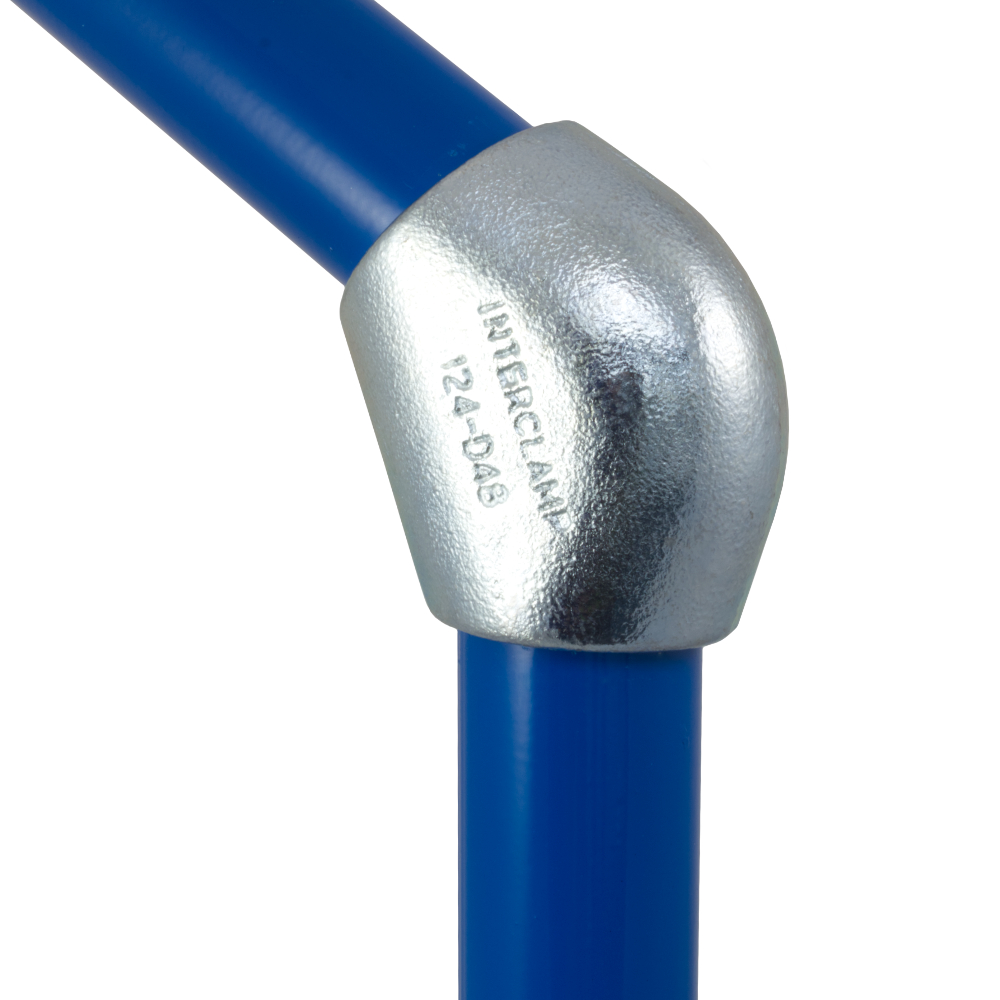

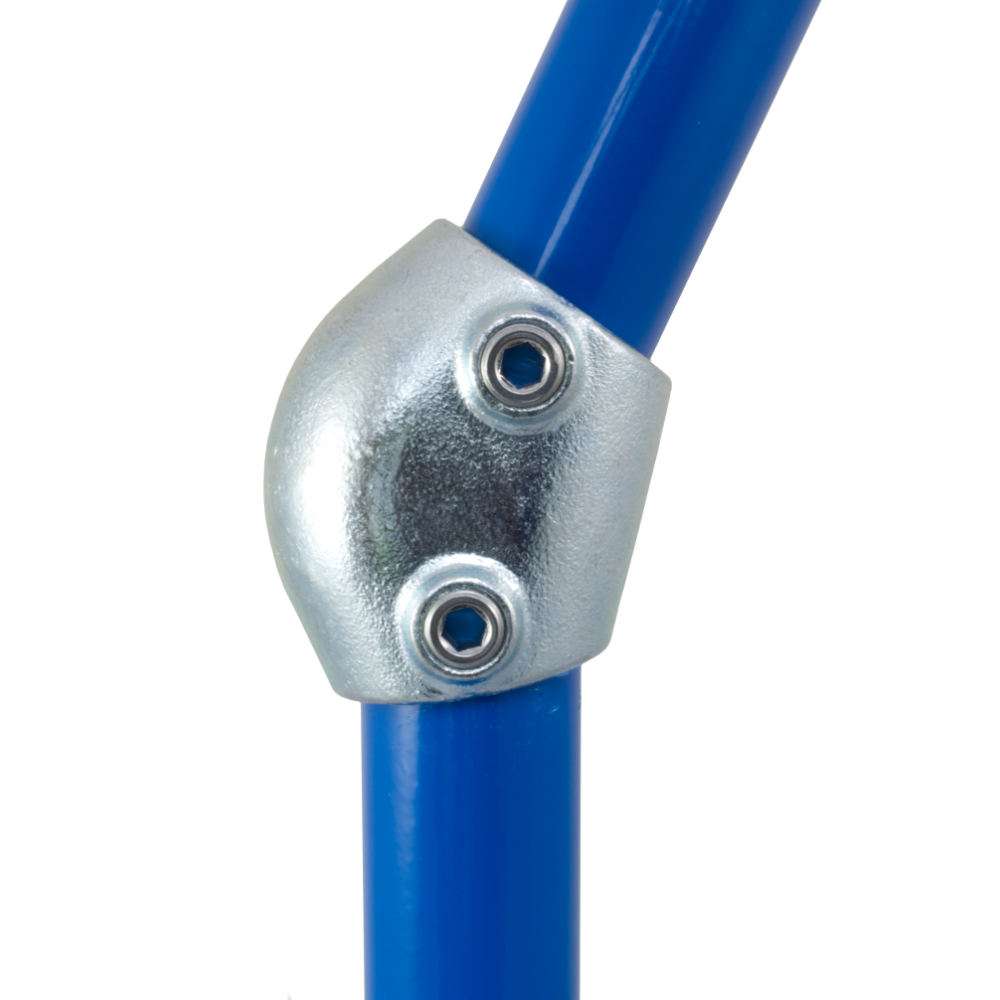

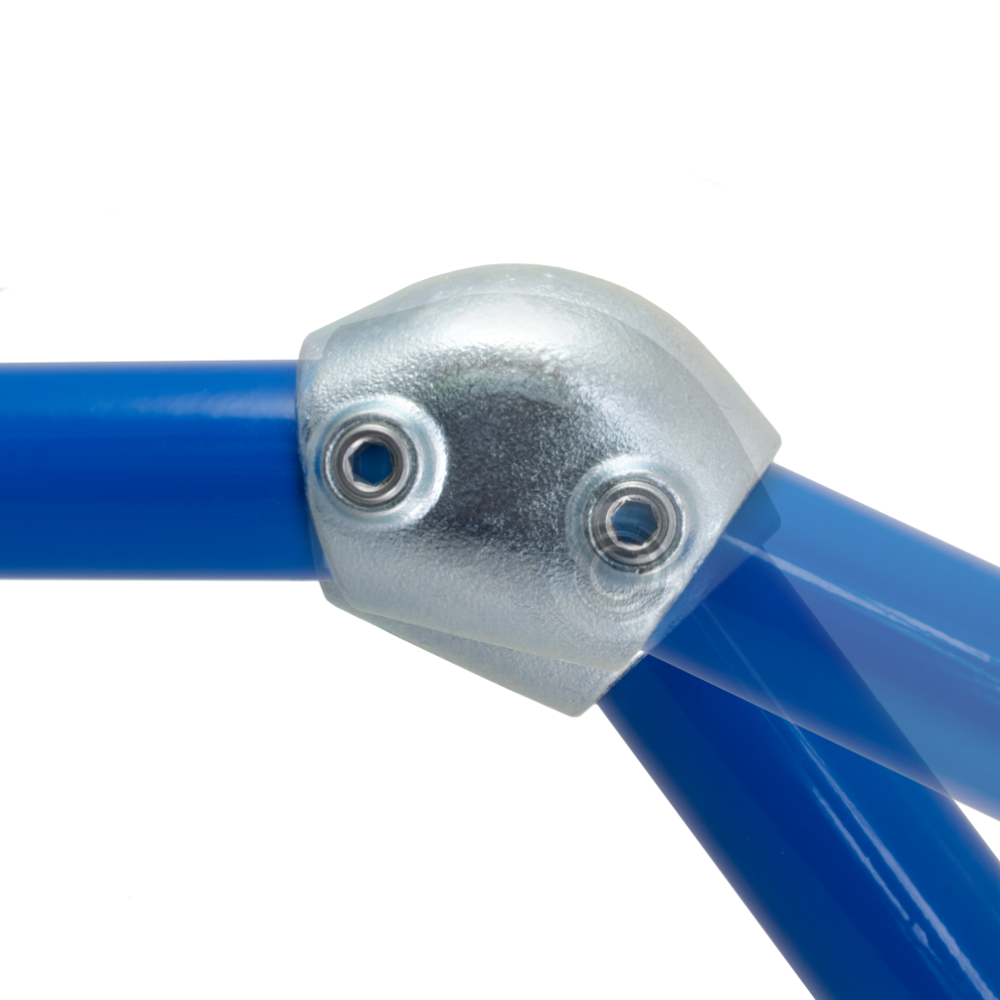

Product Images 1 - 124 - Variable Elbow (15° - 60°)
Product Images 2 - 124 - Variable Elbow (15° - 60°)


* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.


Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
