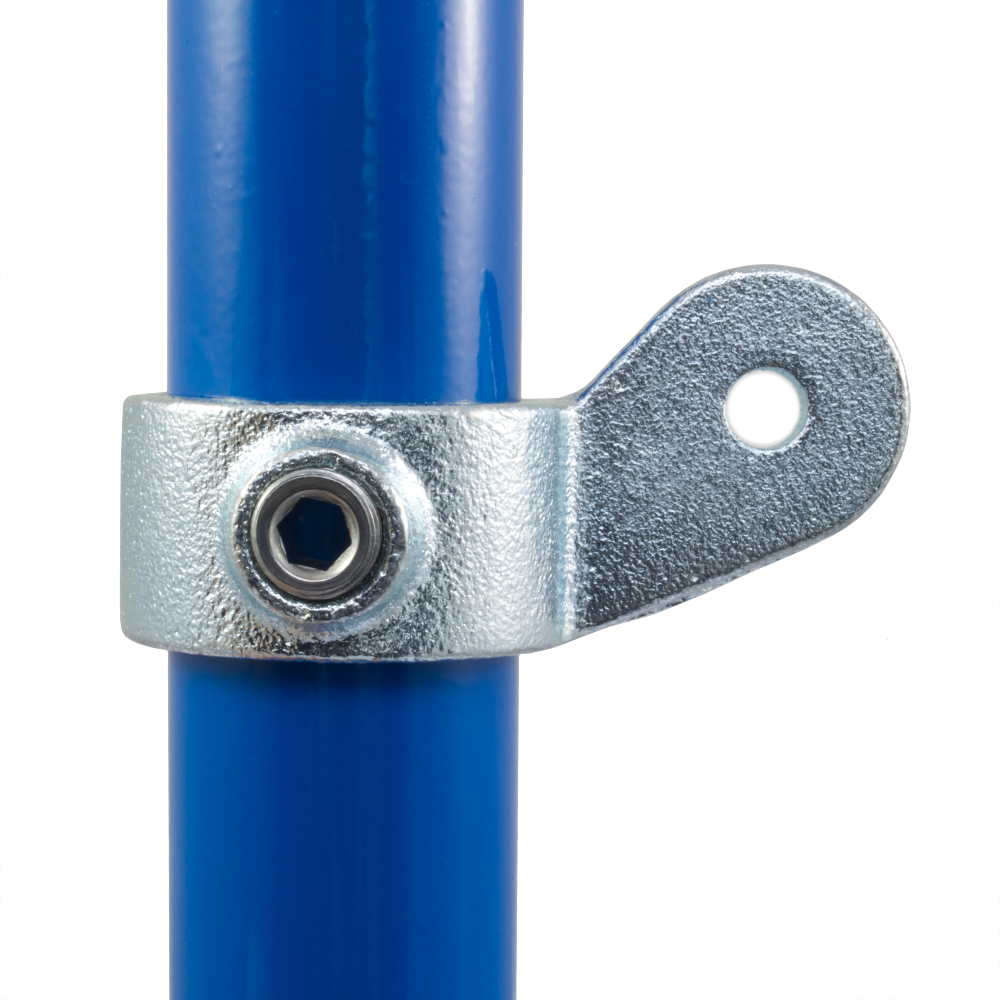

172M - Offset Single Swivel Socket Male Part

172M - Offset Single Swivel Socket Male Part

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

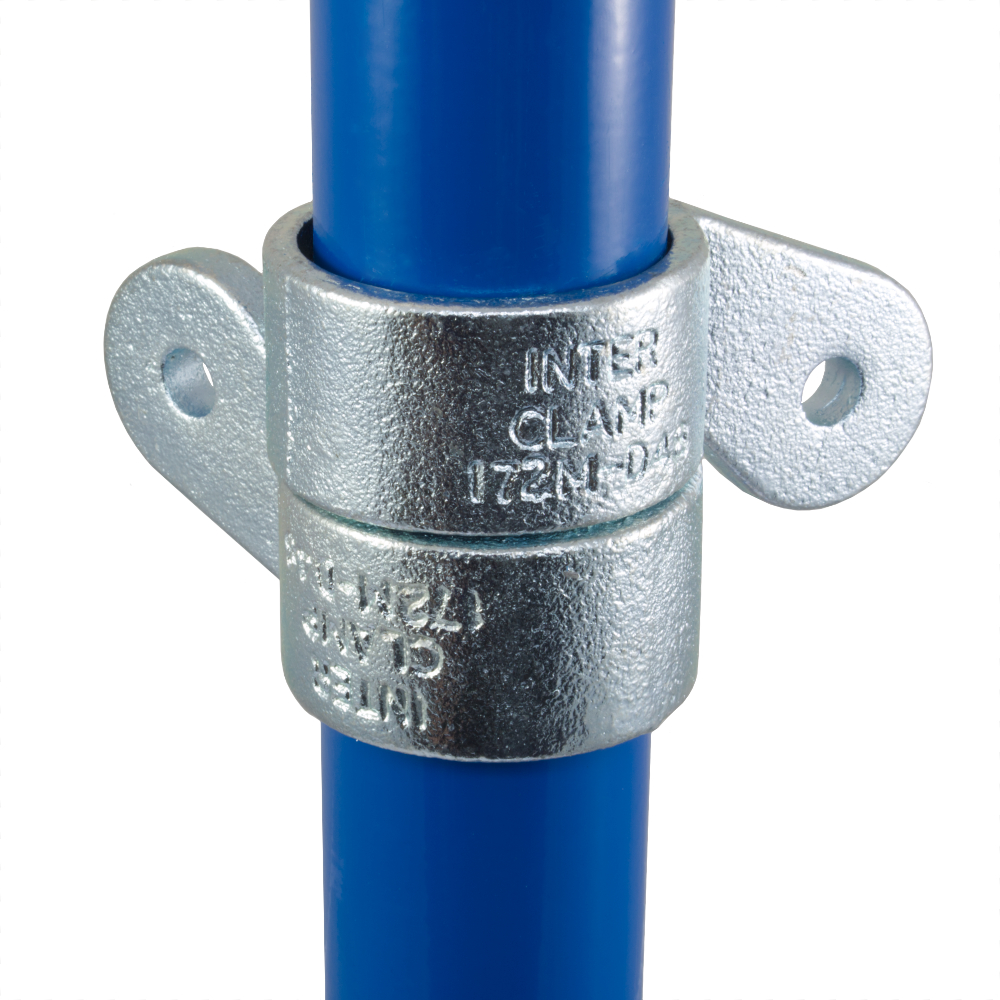

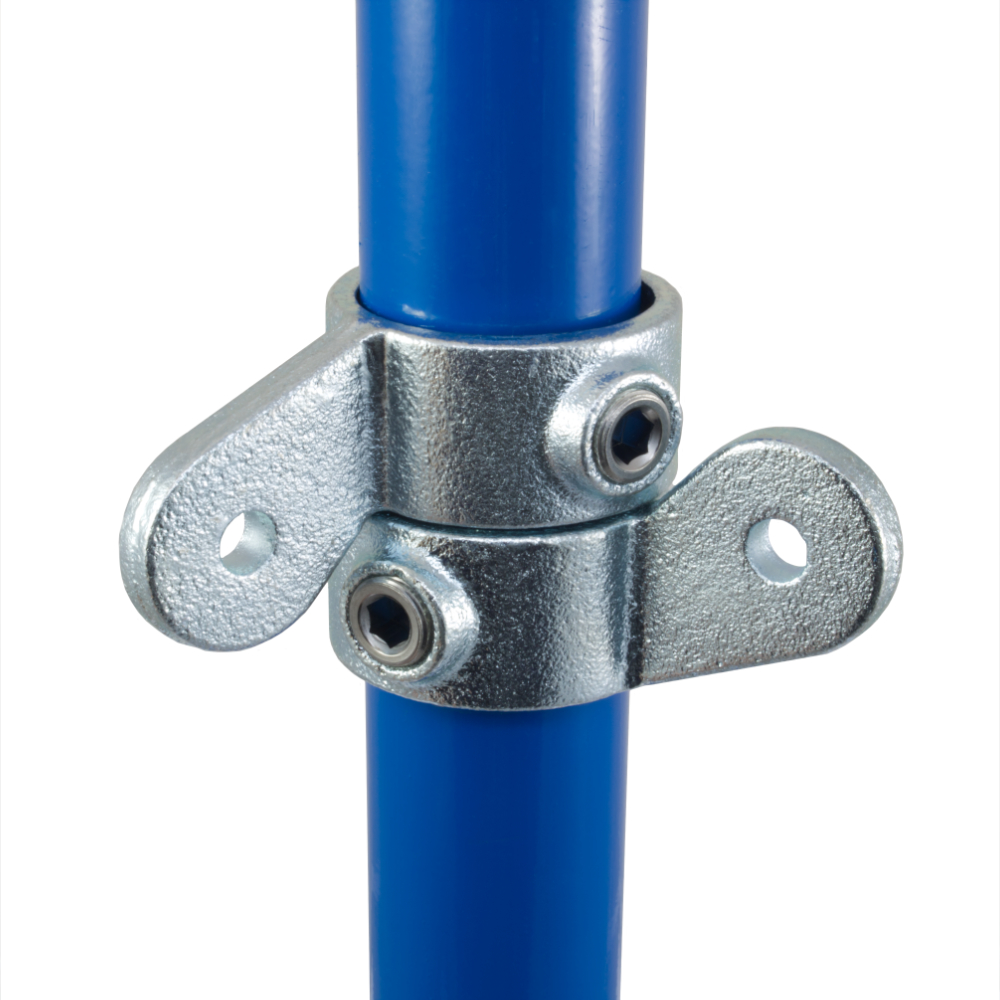

Image shows 2 fittings

Range Print < Previous Next >

Product Data & Dimensions

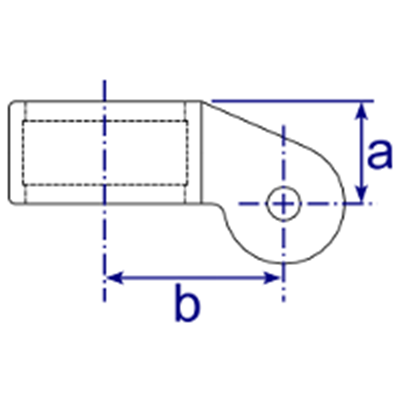

Dimensions Image 1 - 172M - Offset Single Swivel Socket Male Part

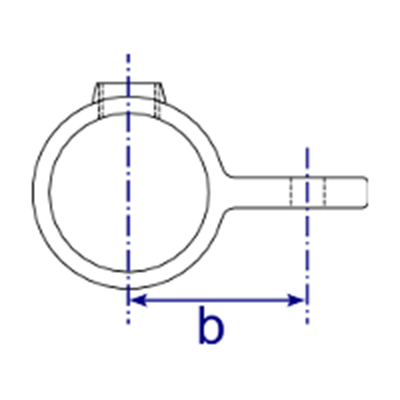

Dimensions Image 2 - 172M - Offset Single Swivel Socket Male Part
Size a (mm) b (mm) Weight (Kg) Box Qty* GTIN / EAN No
  C42   30   51   0.30   140   5060511022019
  D48   32   56   0.31   80   5060511022026

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

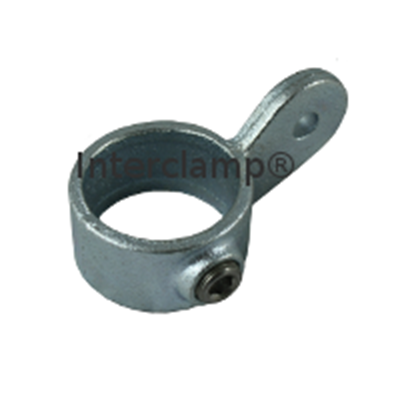

Product Images 1 - 172M - Offset Single Swivel Socket Male Part

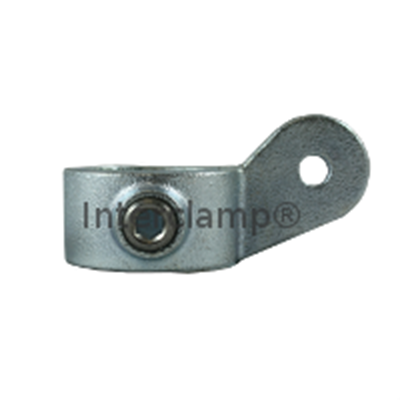

Product Images 2 - 172M - Offset Single Swivel Socket Male Part
