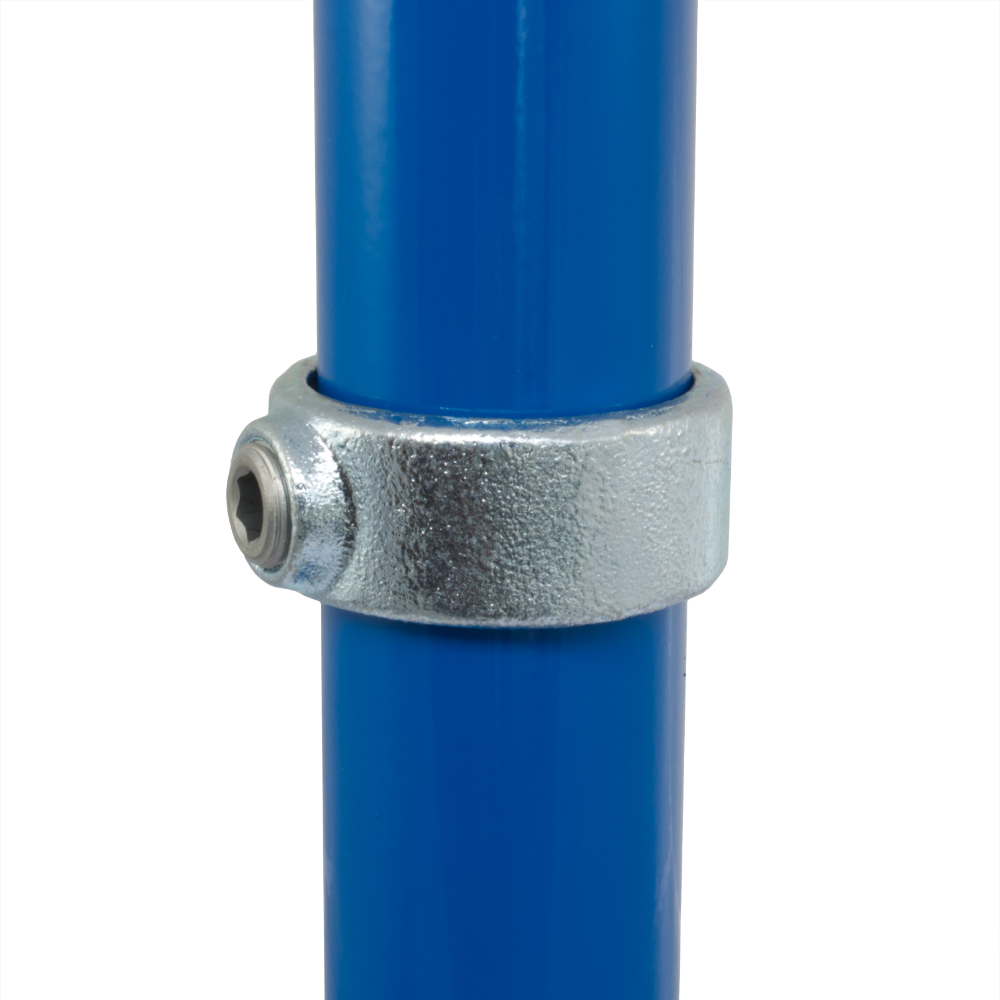

179 - Locking Ring

179 - Locking Ring

Often used with other fittings to increase slip load capacity or to support other fittings which are left to rotate freely on tube to form swivels, hinges etc. The tube cannot be joined within the fitting.

Range Print < Previous Next >

Product Data & Dimensions

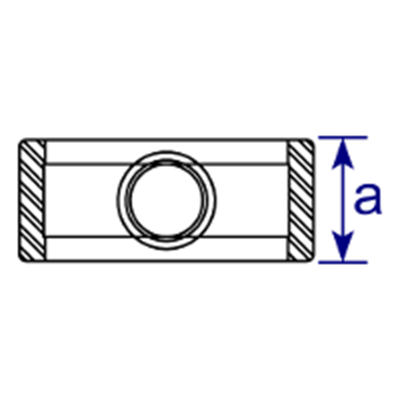

Dimensions Image 1 - 179 - Locking Ring
Size a (mm) Weight (Kg) Box Qty* GTIN / EAN No
  A27   25   0.09   400   5060511022279
  B34   25   0.12   270   5060511022286
  C42   25   0.15   200   5060511022293
  D48   25   0.16   140   5060511022309
  E60   25   0.21   80   5060511022316


* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.


Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
